1982 Suzuki RM125 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1982 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

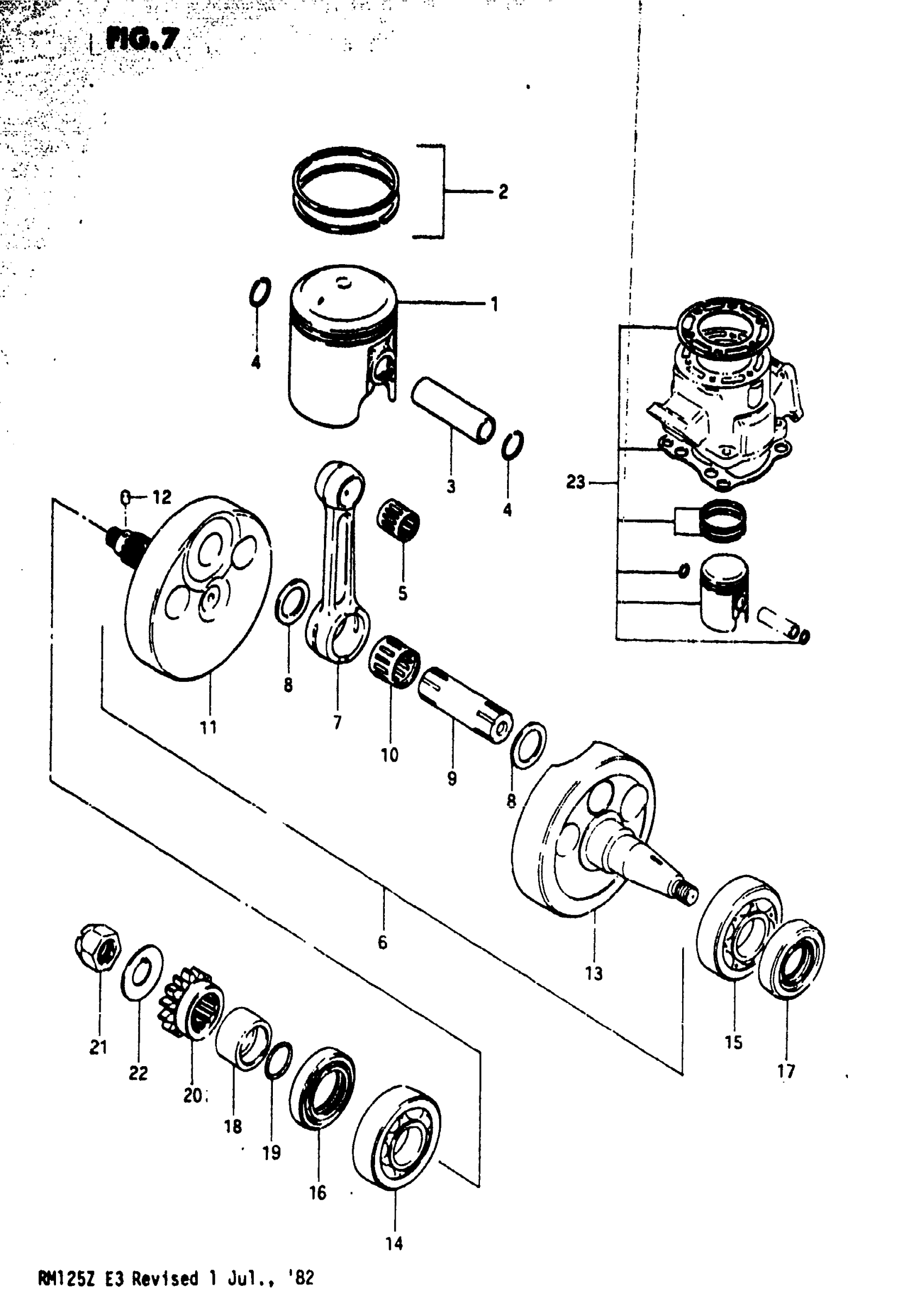

1982 Suzuki RM125 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON CUP This part replaces 12110-14110.

12110-141V0

1
Out of stock

1

NO DESCRIPTION AVAILABLE | OPT This part replaces 12110-14110-025.

12103-14811-025

1
Out of stock

1

NO DESCRIPTION AVAILABLE | OPT This part replaces 12110-14110-050.

12103-14811-050

1
Out of stock

2

RING SET, PISTON (STD)

12140-14110

1
Out of stock

2

RING SET, PISTON (OS:0.25) | OPT

12140-14110-025

1
Out of stock

2

RING SET, PISTON (OS:0.5) | OPT

12140-14110-050

1
Out of stock

3

PIN, PISTON This part replaces 12151-11000.

12151-39300

1
Out of stock

4

RING

09381-14001

2
Out of stock

5

BEARING, PISTON PIN This part replaces 09263-14012.

09263-14024

1
Out of stock

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 13

12200-14111

1
Out of stock

7

CONNROD This part replaces 12161-14110.

12161-23400-0E0

1
Out of stock

8

WASHER

09160-19018

2
Out of stock

9

PIN CRANK This part replaces 12211-10302.

12211-03020

1
Out of stock

10

RN 19X26X17 BRG This part replaces 09263-19013.

12214-14500

1
Out of stock

11

CRANKSHAFT, RH

12220-14110

1
Out of stock

12

PIN This part replaces 06211-03052.

04221-03059

1
Out of stock

13

CRANKSHAFT, LH

12261-14110

1
Out of stock

14

BEARING, RH (22X56X16) This part replaces 09262-22012.

09262-22025

1
Out of stock

15

BEARING, LH This part replaces 09262-25052.

09262-25070-0A0

1
Out of stock

16

OIL SEAL, RH

09289-28007

1
Out of stock

17

OIL SEAL, LH

09283-18004

1
Out of stock

18

SPACER

12359-14110

1
Out of stock

19

O RING

09280-20004

1
Out of stock

20

GEAR, PRIMARY DRIVE (NT:19)

21111-40202

1
Out of stock

21

NUT

09159-12010

1
Out of stock

22

WASHER

09166-12007

1
Out of stock

23

ENGINE TOP END KIT | OPT, (STD) This part replaces 12100-14860.

12100-14861

—
Out of stock

23

ENGINE TOP END KIT | OPT,OS:0.25 This part replaces 12100-14860-025.

12100-14861-025

—
Out of stock
