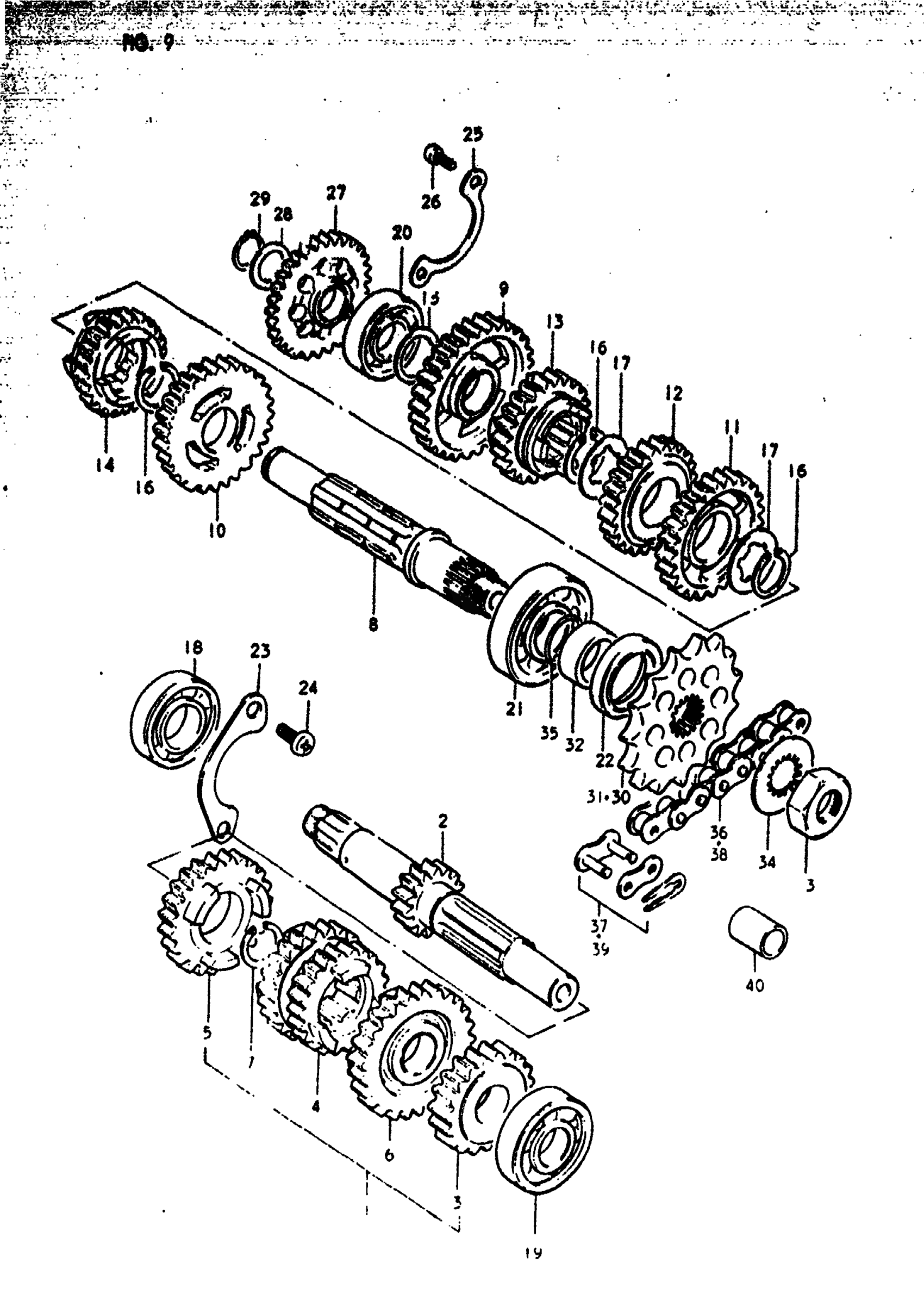

Suzuki RM125 (1980) TRANSMISSION Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | N,T; Includes Item(s) 2 - 7 This part replaces 24120-40200.

24120-40210

Unavailable

2

NO DESCRIPTION AVAILABLE | N,T This part replaces 24121-40200.

24121-40210

Unavailable

3

GEAR,2ND DRIVE | N,T This part replaces 24221-41301.

24221-41304

Unavailable

4

GEAR, 3/4 DRIVE (NT:17/21) | N,T This part replaces 24231-41300.

24231-14110

Unavailable

5

GEAR, 5TH DRIVE (NT:22) | N,T This part replaces 24251-41300.

24251-14101

Unavailable

6

NO DESCRIPTION AVAILABLE | N,T This part replaces 24260-41301.

24260-40210

Unavailable

7

CIRCLIP | N,T

09380-20007

$2.38

8

DRIVESHAFT | N,T This part replaces 24131-41302.

24131-41303

Unavailable

9

GEAR, 1ST DRIVEN (NT:28) | N,T

24310-41300

Unavailable

10

NO DESCRIPTION AVAILABLE | N,T This part replaces 24321-41300.

24321-41310

Unavailable

11

GEAR, 3RD DRIVEN (NT:24) | N,T This part replaces 24331-41301.

24331-41302

Unavailable

12

GEAR, 4TH DRIVEN (NT:25) | N,T

24341-41303

Unavailable

13

GEAR, 5TH DRIVEN (NT:23) | N,T

24351-41301

Unavailable

14

GEAR, 6TH DRIVEN (NT:22) | N,T

24361-41300

Unavailable

15

SHIM, CAM CHAIN IDLER,T:1.0 | N,T This part replaces 08211-15241.

09181-15166

$2.74

16

CIRCLIP | N,T

09380-20007

$2.38

17

WASHER | N,T

09167-20011

$2.37

18

BEARING, DRIVE SHAFT LH | N,T This part replaces 08113-62040.

09262-20069

$21.00

19

BEARING, LH | N,T

08113-60020

$14.44

20

BEARING (15X35X11) | N,T This part replaces 08113-62020.

08113-62027

$12.99

21

BEARING, LH | N,T

09262-20043

Unavailable

22

OIL SEAL | N,T

09283-25035

$5.88

23

HOLDER, BEARING | N,T

24741-48000

Unavailable

24

SCREW | N,T This part replaces 02112-06128.

02112-06127

$1.83

25

HOLDER, BEARING | N,T

24751-40200

Unavailable

26

SCREW | N,T This part replaces 02112-06108.

02112-06107

$1.45

27

GEAR, KICK STARTER IDLE (NT:28 | N,TN,T

26260-40200

Unavailable

28

SHIM, CAM CHAIN IDLER,T:1.0 | N,T This part replaces 08211-15241.

09181-15166

$2.74

29

CIRCLIP | N,T This part replaces 08331-31159.

08331-3115A

$1.97

30

SPROCKET, ENGINE (NT:13) | N

27511-41701

Unavailable

30

SPROCKET (NT:14) | N; OPT This part replaces 27511-41301.

27511-41310

$27.07

30

SPROCKET, ENGINE (NT:15) | N; OPT

27511-41711

Unavailable

31

SPROCKET, ENGINE (NT:12) | T This part replaces 27511-41500.

27511-14111

$25.90

31

SPROCKET, ENGINE (NT:11) | T; OPT This part replaces 27511-40200.

27511-14101

Unavailable

32

SPACER | N,T

09180-20039

$6.59

33

NUT | N,T

09140-16013

Unavailable

34

WASHER | N,T

09167-20012

$2.20

35

O RING | N,T

09280-20001

$1.52

36

CHAIN, DRIVE (428x132L) | N; Includes Item(s) 37 This part replaces 27600-41311.

27600-40220

Unavailable

37

JOINT, CHAIN | N

27620-28310

Unavailable

38

CHAIN,DRIVE ASS | T; Includes Item(s) 39 This part replaces 27600-40211.

27600-46K00-116

$185.10

39

NO DESCRIPTION AVAILABLE | T This part replaces 27620-36110.

27620-28C01

Unavailable

40

CUSHION, CHAIN | N,T

09320-13001

Unavailable
