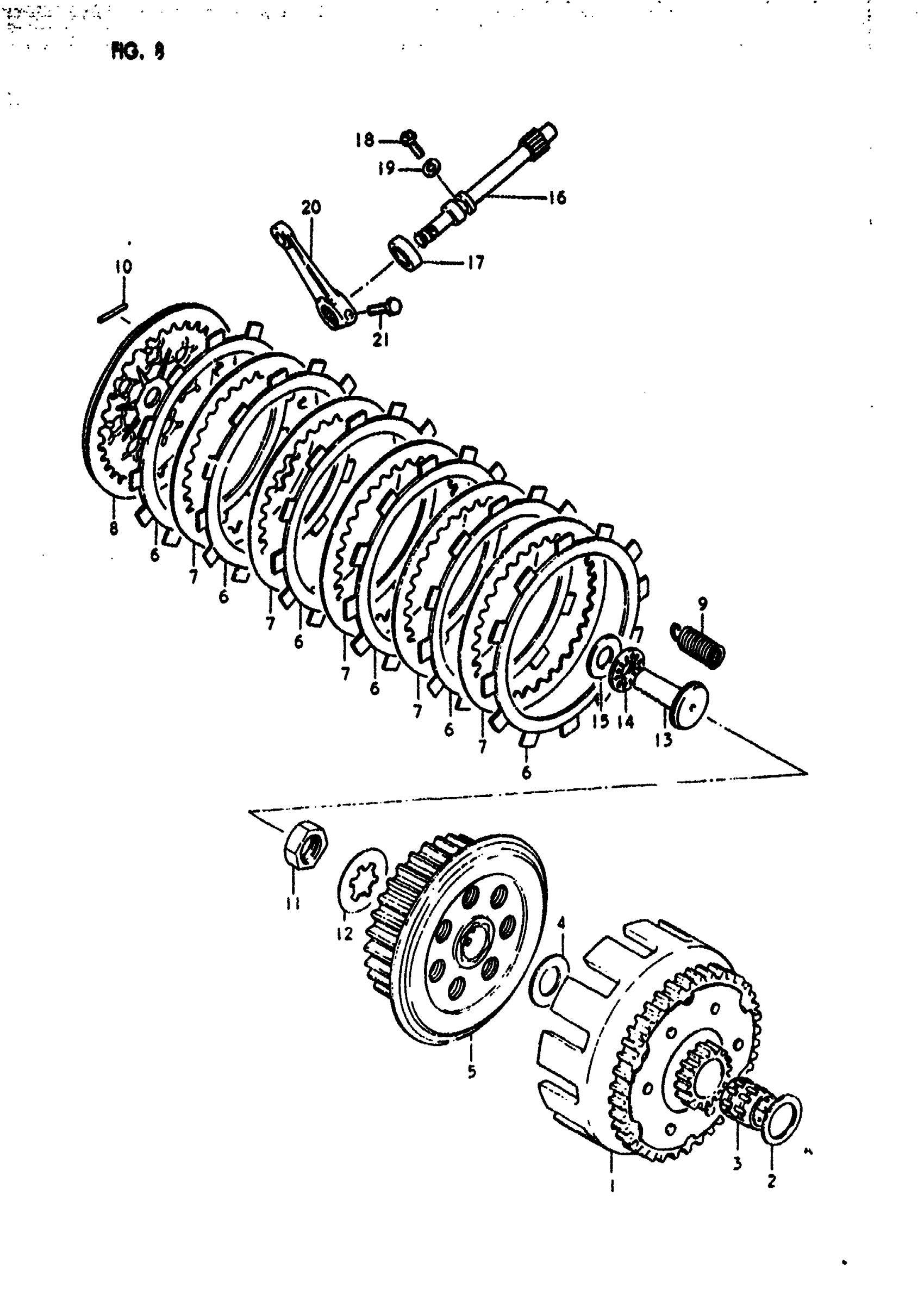

Suzuki RM125 (1980) CLUTCH Diagram

GEAR, PRIMARY DRIVEN | N,T; NT:60/17

21200-40200

Unavailable

WASHER | N,T

08211-20323

$3.30

BEARING | N,T

09263-20023

$18.93

WASHER | N,T

08211-17342

$2.80

HUB,CLUTCH SLEE | N,T This part replaces 21410-28700.

21410-39131

$100.46

PLATE, CLUTCH DRIVE | N,T This part replaces 21441-28300.

21441-13A01

$14.10

PLATE, CLUTCH DRIVEN (T:1.6) | N,T This part replaces 21451-41700.

21451-19A00

$7.26

PLATE, PRESSURE | N,T

21462-40200

Unavailable

SPRING | N,T

09443-12020

$3.11

PIN | N,T

09261-02001

$1.50

NUT | N,T This part replaces 09140-16001.

09140-16005

$4.08

LOCK WASHER | N,T

09167-17002

$1.76

RACK | N,T This part replaces 23165-40200.

23165-46000

$29.48

BEARING | N,T

09263-10002

$9.47

WASHER | N

08211-10221

$2.01

WASHER | T This part replaces 09160-10021.

09160-10121

$2.13

PINION, RELEASE | N,T This part replaces 23261-40200.

23261-41301

$49.30

OIL SEAL | N,T

09284-10002

$2.80

BOLT | N,T

09135-06009

$2.21

WASHER | N,T This part replaces 08322-21068.

08322-01067

$1.94

ARM, RELEASE | N,T

23271-41300

Unavailable

BOLT, CANISTER | N,T This part replaces 01107-06168.

01500-06167

$2.01
