2003 Suzuki RM100 Rear Master Cylinder Diagram

← All diagrams

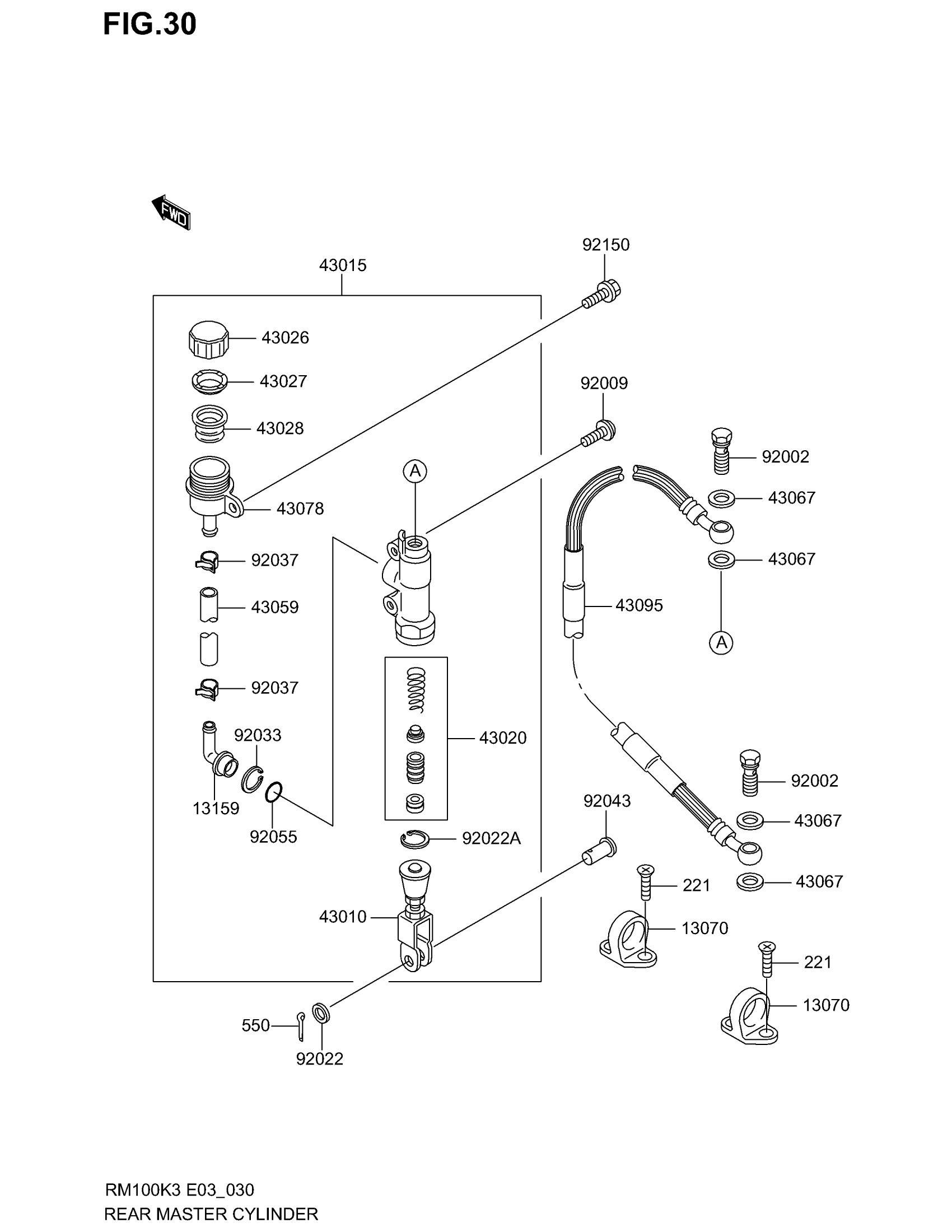

Find the part on the Rear Master Cylinder diagram for your 2003 Suzuki RM100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki RM100 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,HOSE

K1307-01144

2
Out of stock

13159

CONNECTOR

K1315-91056

1
Out of stock

43010

ROD-ASSY-BRAKE

K4301-01079

1
Out of stock

43015

CYLINDER-ASSY-MASTER,RR

K4301-51606

1
Out of stock

43020

PISTON-COMP-BRAKE

K4302-01094

1
Out of stock

43026

CAP-BRAKE

K4302-61058

1
Out of stock

43027

PLATE-DIAPHRAGM

K4302-71052

1
Out of stock

43028

DIAPHRAGM

K4302-81060

1
Out of stock

43059

HOSE-BRAKE

K4305-91363

1
Out of stock

43067

WASHER,SEAL,10. This part replaces KK430-67001.

K4909-10001

4
Out of stock

43078

RESERVOIR

K4307-81068

1
Out of stock

43095

HOSE-BRAKE,RR,L=567

K4309-51234

1
Out of stock

92002

BOLT,OIL,L=23 This part replaces K9200-21888.

K9215-30627

2
Out of stock

92009

SCREW,6X14 This part replaces K9200-91287.

K9217-20401

2
Out of stock

92022

WASHER,8.5X13X1

K9202-21028

1
Out of stock

92022A

WASHER,CIRCLIP This part replaces K9202-21601.

K9203-30079

1
Out of stock

92033

RING-SNAP,20.5MM

K9203-31186

1
Out of stock

92037

CLAMP

K9203-71710

2
Out of stock

92043

PIN

K9204-31039

1
Out of stock

92055

RING-O,MASTER CYLINDER

K9205-51251

1
Out of stock

92150

BOLT,FLANGED,6X14

K9215-01505

1
Out of stock

221

NO DESCRIPTION AVAILABLE This part replaces KK221-B0510.

K221A-A0510

4
Out of stock

550

PIN-COTTER,2.0X This part replaces KK550-D2015.

K550A-A2015

1
Out of stock
