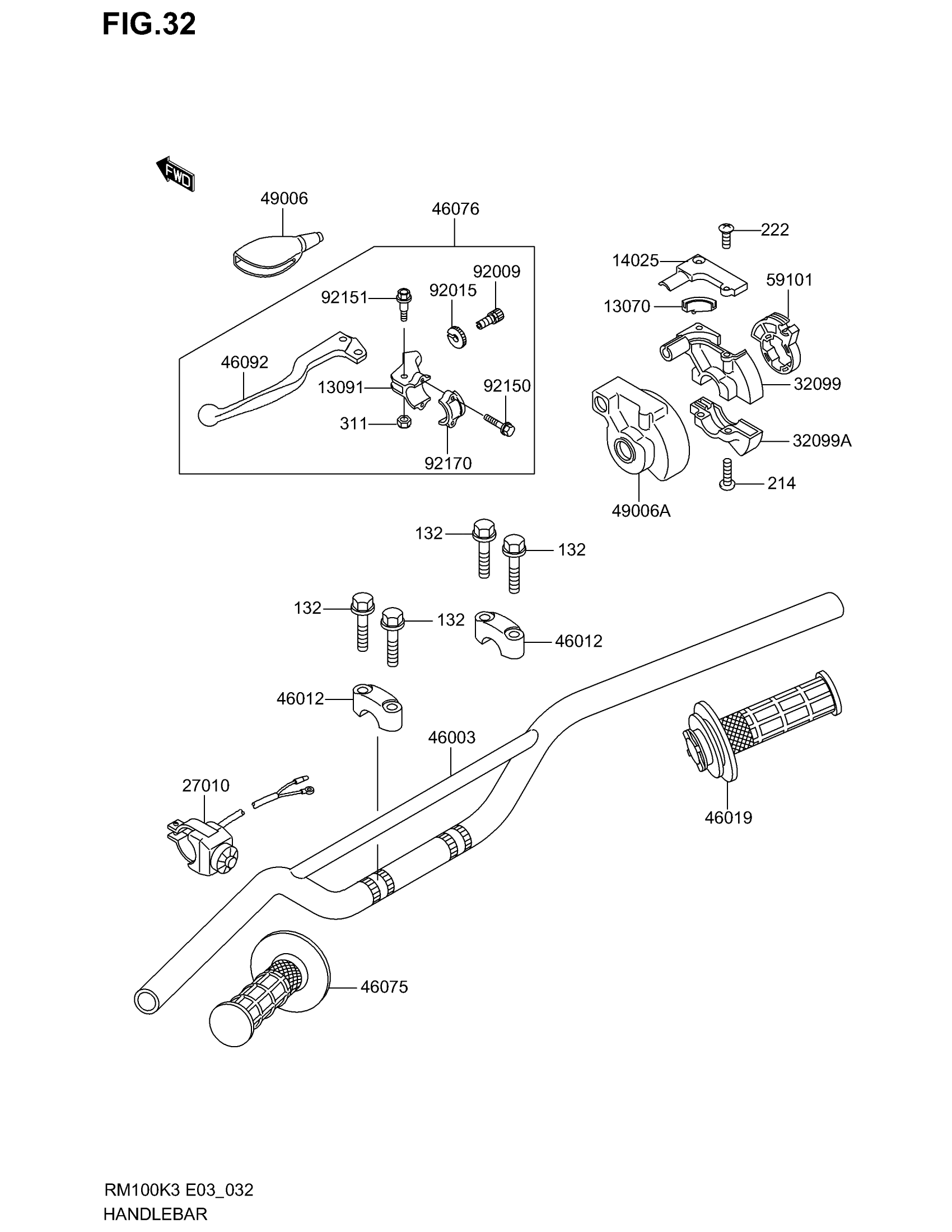

Suzuki RM100 (2003) HANDLEBAR Diagram

GUIDE,THROTTLE

K1307-01074

Unavailable

HOLDER,CLUTCH LEVER

K1309-11728

Unavailable

COVER,THROTTLE CASE UPP

K1402-51646

$7.92

SWITCH,ENGINE STOP

K2701-01415

Unavailable

CASE,THROTTLE,U This part replaces K3209-91036.

K3209-90037

$27.97

CASE,THROTTLE L This part replaces K3209-91044.

K3209-90038

Unavailable

NO DESCRIPTION AVAILABLE This part replaces KK460-03146-8CE.

KK460-03002-7CE

Unavailable

HOLDER-HANDLE,UPP

K4601-21191

Unavailable

GRIP-ASSY,THROTTLE

K4601-91054

$39.03

GRIP,LH

K4607-51024

Unavailable

LEVER-ASSY-GRIP,CLUTCH

K4607-61203

Unavailable

LEVER-GRIP,CLUTCH

K4609-21165

$20.20

BOOT,LEVER HOLDER

K4900-61017

$17.68

BOOT,THROTTLE CASE

K4900-61097

$16.68

REEL,THROTTLE

K5910-11110

Unavailable

SCREW,CABLE ADJUST,8MM

K9200-91476

Unavailable

NUT,CABLE ADJUST LOCK,8MM

KK460-56005

Unavailable

BOLT

K9215-01474

Unavailable

BOLT,LEVER SET,5MM

K9215-11103

$4.03

CLAMP,LEVER HOLDER

K9217-01226

Unavailable

BOLT-FLANGED-SM This part replaces KK132-G0830.

K132B-A0830

Unavailable

SCREW-PAN+- This part replaces KK220-C0518.

K220A-B0518

$1.52

SCREW-CSK-RD-CROS

KK222-E0412

Unavailable

NUT-HEX This part replaces KK311-B0500.

K311A-A0500

$1.35
