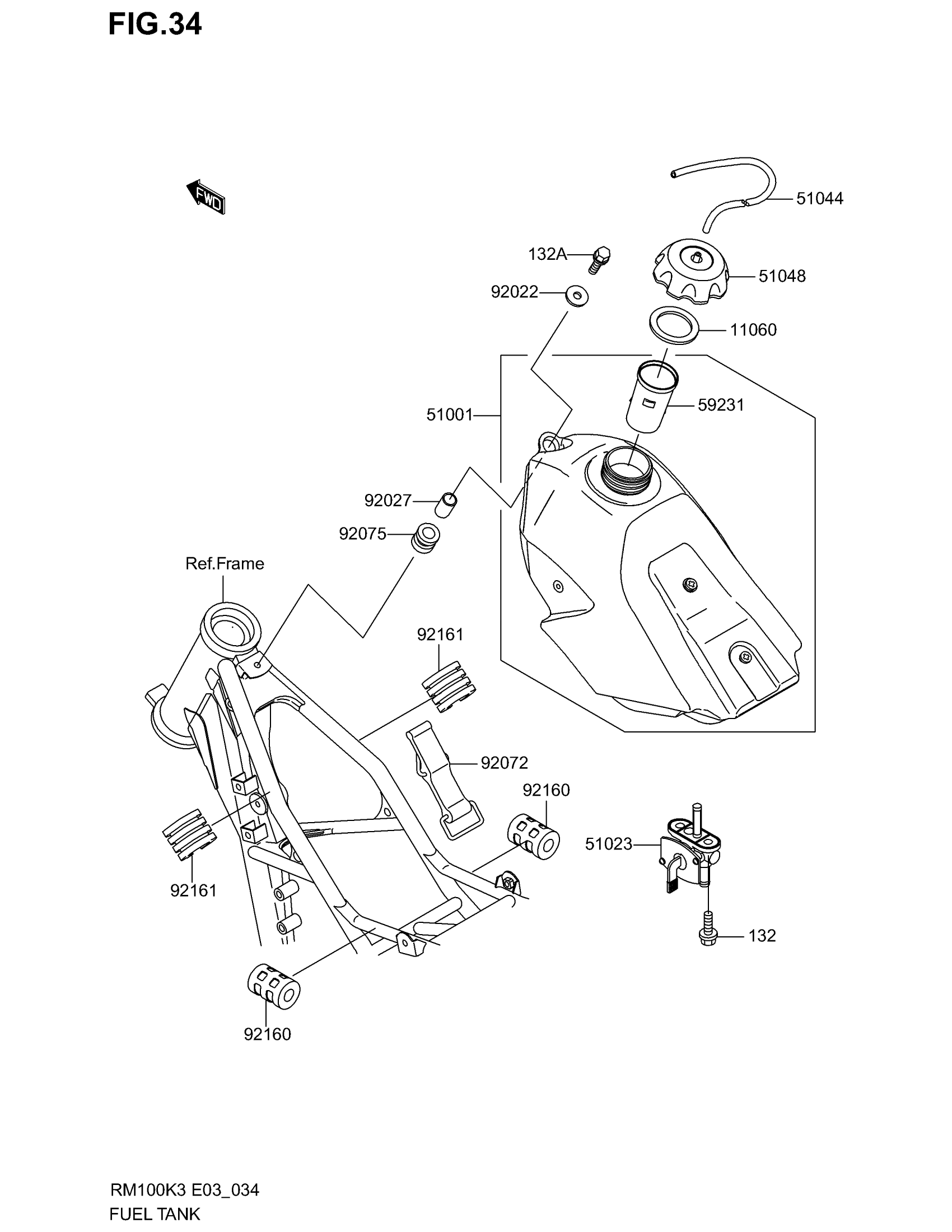

Suzuki RM100 (2003) FUEL TANK Diagram

#

Description
Price

11060

GASKET,FUEL TANK CAP

K1106-01340

$6.67

51001

TANK-COMP-FUEL,C.YELLOW

K5100-11677-267

Unavailable

51023

TAP ASSY,FUEL This part replaces K5102-31339.

K5102-30024

Unavailable

51044

TUBE-ASSY

K5104-41185

Unavailable

51048

CAP ASSY,TANK,F This part replaces K5104-81124.

K5104-80014

$53.07

59231

FILLER

K5923-11096

Unavailable

92022

WASHER,6.5X24X2

K9202-21690

Unavailable

92027

COLLAR,6.8X10X14

K9202-71966

Unavailable

92072

BAND,FUEL TANK

K9207-21229

$8.22

92075

DAMPER

K9207-51787

Unavailable

92160

DAMPER,FUEL TANK

K9216-01236

Unavailable

92161

DAMPER,FUEL TANK

K9216-11175

Unavailable

92150

BOLT-FLANGED-SM This part replaces K9215-01599.

K132B-A0612

$1.55

132

BOLT-FLANGED-SM This part replaces KK132-G0625.

K132B-A0625

$2.15
