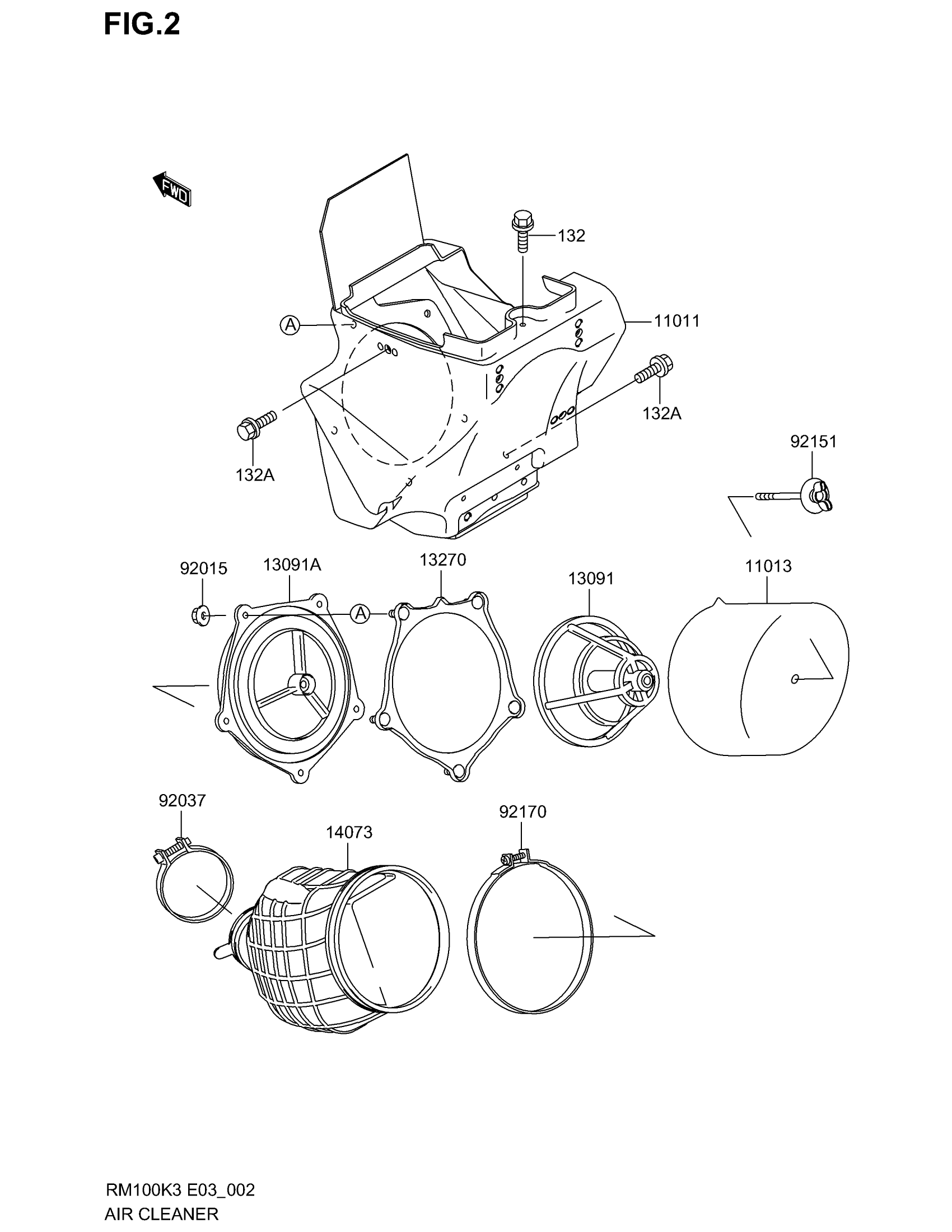

Suzuki RM100 (2003) AIR CLEANER Diagram

#

Description

Price

11011

CASE-AIR FILTER

K1101-11612

Unavailable

11013

ELEMENT-AIR FILTER

K1101-31271

Unavailable

13091

HOLDER,ELEMENT

K1309-11696

$26.62

13091A

HOLDER

K1309-11697

Unavailable

13270

PLATE,AIR FILTER

K1327-01905

Unavailable

14073

DUCT

K1407-31785

Unavailable

92015

NUT,FLANGED,5MM

K9201-51259

$3.42

92037

CLAMP,55MM

K9203-71486

Unavailable

92151

BOLT,AIR FILTER

K9215-11256

$7.48

92170

CLAMP,126MM

K9217-01194

Unavailable

132

BOLT-FLANGED-SM This part replaces KK132-G0608.

K132B-A0608

$1.93

132A

BOLT-FLANGED-SM This part replaces KK132-G0614.

K132B-A0614

Unavailable
