1981 Suzuki RM100 Fuel Tank (RM100N Diagram

← All diagrams

Find the part on the Fuel Tank (RM100N diagram for your 1981 Suzuki RM100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

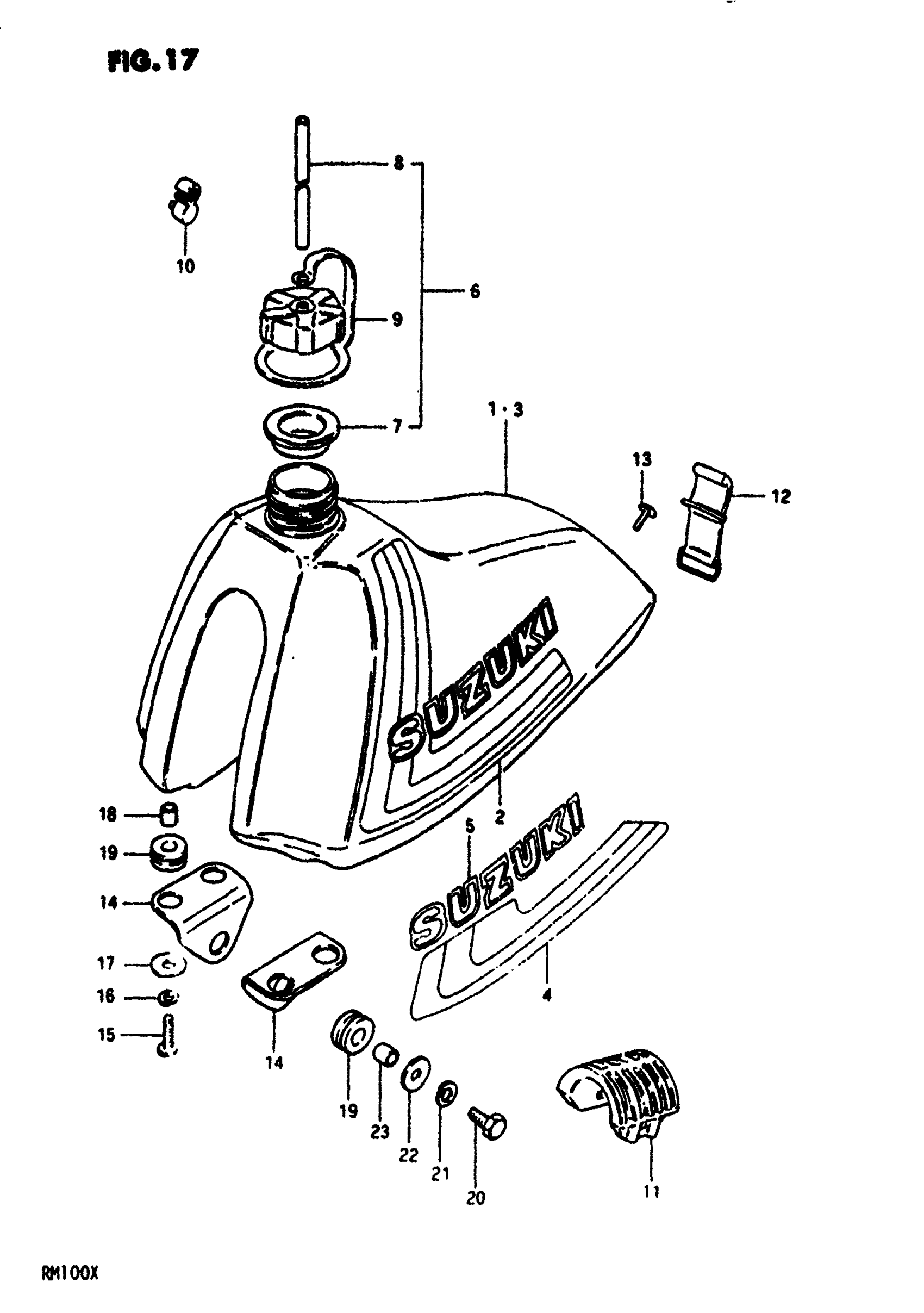

1981 Suzuki RM100 Fuel Tank (RM100N Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL N; Includes Item(s) 2 This part replaces 44100-40200-163.

44110-40200-163

1
Out of stock

2

TAPE SET | MODEL N

68100-40820

1
Out of stock

3

NO DESCRIPTION AVAILABLE | Includes Item(s) 4 - 5 This part replaces 44100-40210-163.

44110-40200-163

1
Out of stock

4

TAPE SET | MODEL T

68110-40210-67H

1
Out of stock

5

EMBLEM This part replaces 68111-40200-019.

68111-40210-64D

2
Out of stock

6

CAP SET,FUEL TA | Includes Item(s) 7 - 10 This part replaces 44200-40400.

44200-40822

1
Out of stock

7

GASKET This part replaces 44248-40400.

44248-05211

1
Out of stock

8

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

1
Out of stock

9

BAND

44487-40400

1
Out of stock

10

CLAMP

44486-32101

1
Out of stock

11

CUSHION, UPPER | MODEL N

44541-41300

2
Out of stock

11

CUSHION, UPPER | MODEL T

44541-41310

2
Out of stock

12

BAND, REAR

44560-41300

1
Out of stock

13

SCREW

09125-06029

1
Out of stock

14

BRACKET, LOWER | MODEL N This part replaces 44521-41111.

44521-40401

2
Out of stock

14

BRACKET, LOWER | MODEL T

44521-40401

2
Out of stock

15

SCREW This part replaces 02112-06258.

02112-06257

4
Out of stock

16

4

$2.28

In stock

17

WASHER, FRONT This part replaces 09160-06004.

09160-06134

4
Out of stock

18

SPACER

09180-06076

4
Out of stock

19

CUSHION

09320-11008

6
Out of stock

20

BOLT This part replaces 01307-08258.

01500-08257

2
Out of stock

21

2

$2.28

In stock

22

WASHER This part replaces 09160-08021.

09160-08130

2
Out of stock

23

SPACER (8.5X12X11) This part replaces 09180-08001.

09180-08189

2
Out of stock
