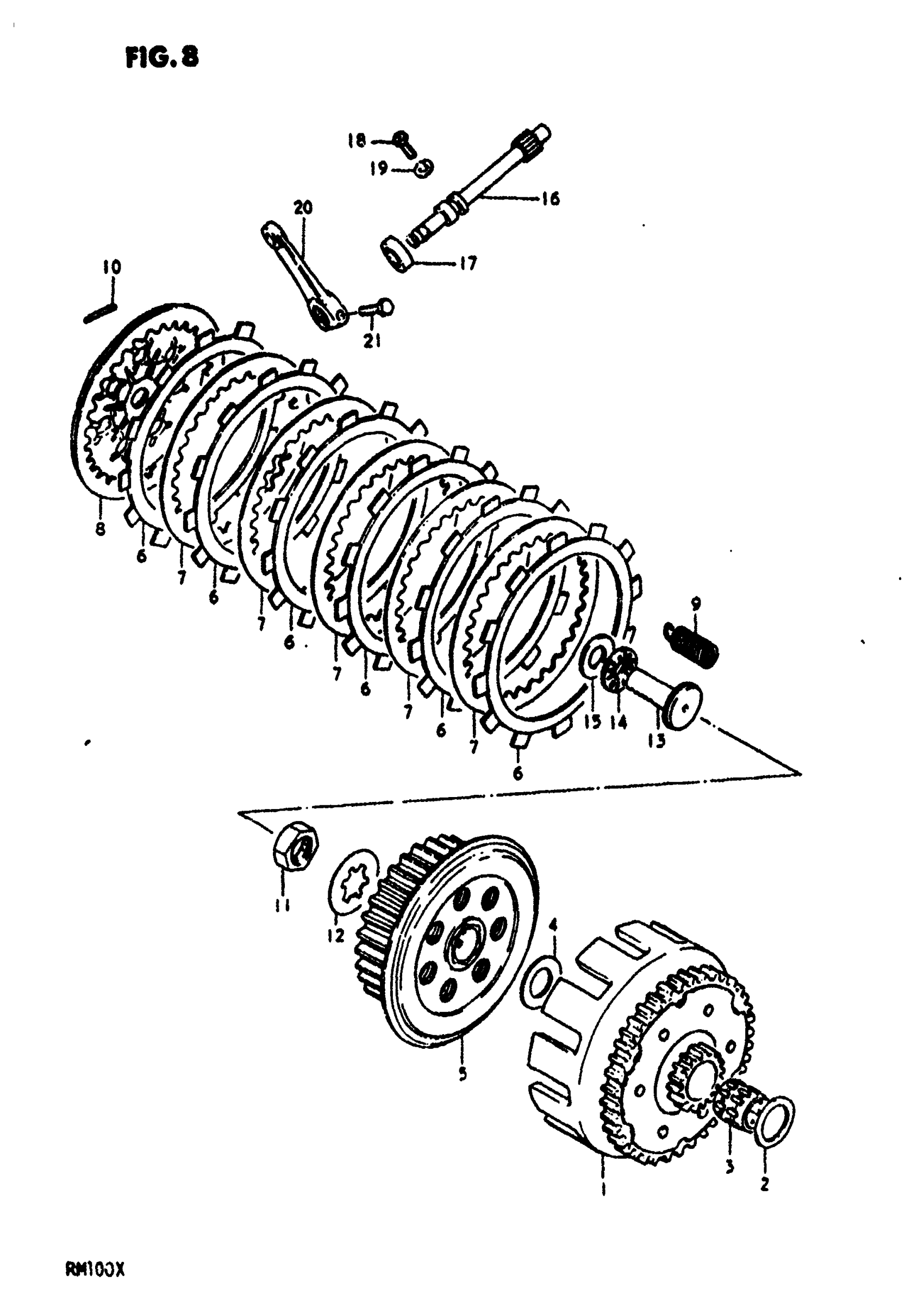

Suzuki RM100 (1981) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN | NT:60/17

21200-40210

Unavailable

2

WASHER

08211-20323

$3.30

3

BEARING

09263-20023

$18.93

4

WASHER

08211-17342

$2.80

5

HUB,CLUTCH SLEE This part replaces 21410-28700.

21410-39131

$100.46

6

PLATE, CLUTCH DRIVE This part replaces 21441-28300.

21441-13A01

$14.10

7

PLATE, CLUTCH DRIVEN (T:1.6) This part replaces 21451-41700.

21451-19A00

$7.26

8

PLATE, PRESSURE

21462-40200

Unavailable

9

SPRING

09443-12020

$3.11

10

PIN

09261-02001

$1.50

11

NUT This part replaces 09140-16001.

09140-16005

$4.08

12

LOCK, RELEASE

09167-17002

$1.76

13

RACK | MODEL N,T This part replaces 23165-40200.

23165-46000

$29.48

13

RACK | MODEL X This part replaces 23165-28300.

23165-46000

$29.48

14

BEARING

09263-10002

$9.47

15

WASHER | MODEL N

08211-10221

$2.01

15

WASHER | MODEL T,X This part replaces 09160-10021.

09160-10121

$2.13

16

PINION, RELEASE | MODEL N,T This part replaces 23261-40200.

23261-41301

$49.30

16

PINION, RELEASE | MODEL X

23261-41301

$49.30

17

OIL SEAL

09284-10002

$2.80

18

BOLT

09135-06009

$2.21

19

WASHER This part replaces 08322-21068.

08322-01067

$1.93

20

ARM, RELEASE

23271-41300

Unavailable

21

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$2.01
