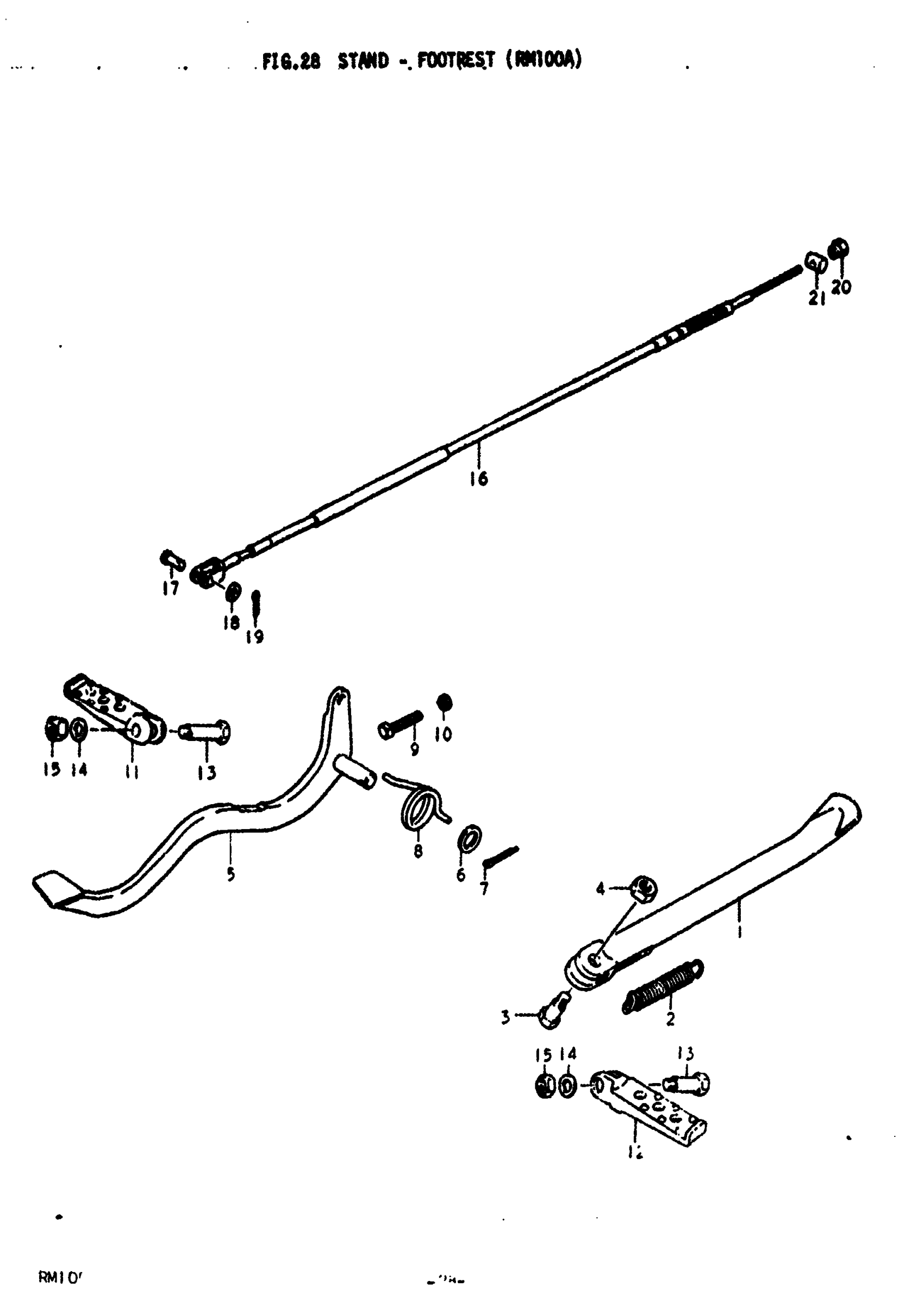

Suzuki RM100 (1978) STAND - FOOTREST (RM100A) Diagram

#

Description
Price

1

STAND, PROP

42310-25000

Unavailable

2

SPRING This part replaces 09443-14005.

09443-14017

$2.80

3

BOLT | 10x30

09100-10067

$2.71

4

NUT This part replaces 08312-32108.

08310-00107

$2.19

5

PEDAL, BRAKE

43110-28301

Unavailable

6

WASHER This part replaces 08322-11128.

08322-01127

$1.86

7

PIN This part replaces 04111-30208.

04111-3020A

$1.63

8

SPRING This part replaces 09448-32004.

09448-32004-XC0

Unavailable

9

BOLT | 6x40

09100-06003

Unavailable

10

.NUT This part replaces 08311-11068.

08310-00067

$1.83

11

FOOTREST, RH

43511-30100

Unavailable

12

FOOTREST, LH

43521-30100

Unavailable

13

BOLT

09111-06018

Unavailable

14

WASHER This part replaces 08322-21068.

08322-01067

$1.86

15

.NUT This part replaces 08311-11068.

08310-00067

$1.83

16

CABLE ASSY, REAR BRAKE This part replaces 58510-41000.

58510-28000

Unavailable

17

PIN

09200-05001

$1.52

18

WASHER This part replaces 08322-21068.

08322-01067

$1.86

19

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

20

.NUT This part replaces 09150-06001.

09150-06010

$2.80

21

PIN

09209-11002

$2.17
