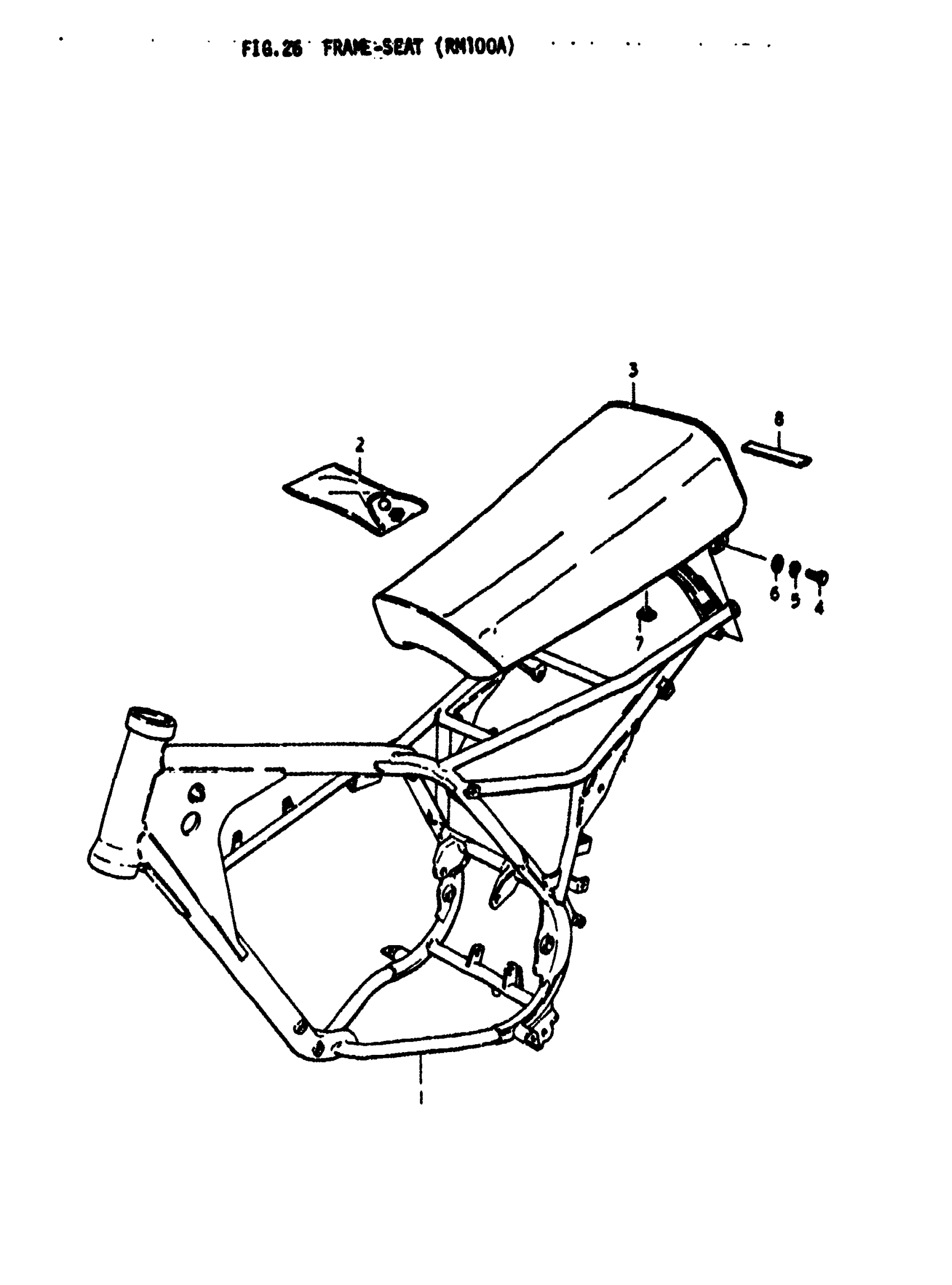

Suzuki RM100 (1978) FRAME - SEAT (RM100A) Diagram

#

Description

Price

1

FRAME

41100-41601-019

Unavailable

2

TOOL SET

09800-00028

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 45100-41600-403.

45100-41622-865

Unavailable

4

BOLT, REAR This part replaces 01122-08208.

01500-08207

$2.55

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

6

WASHER This part replaces 08322-21088.

08322-01087

$1.86

7

CUSHION

09329-10001

$2.14

8

CUSHION

45299-41000

Unavailable
