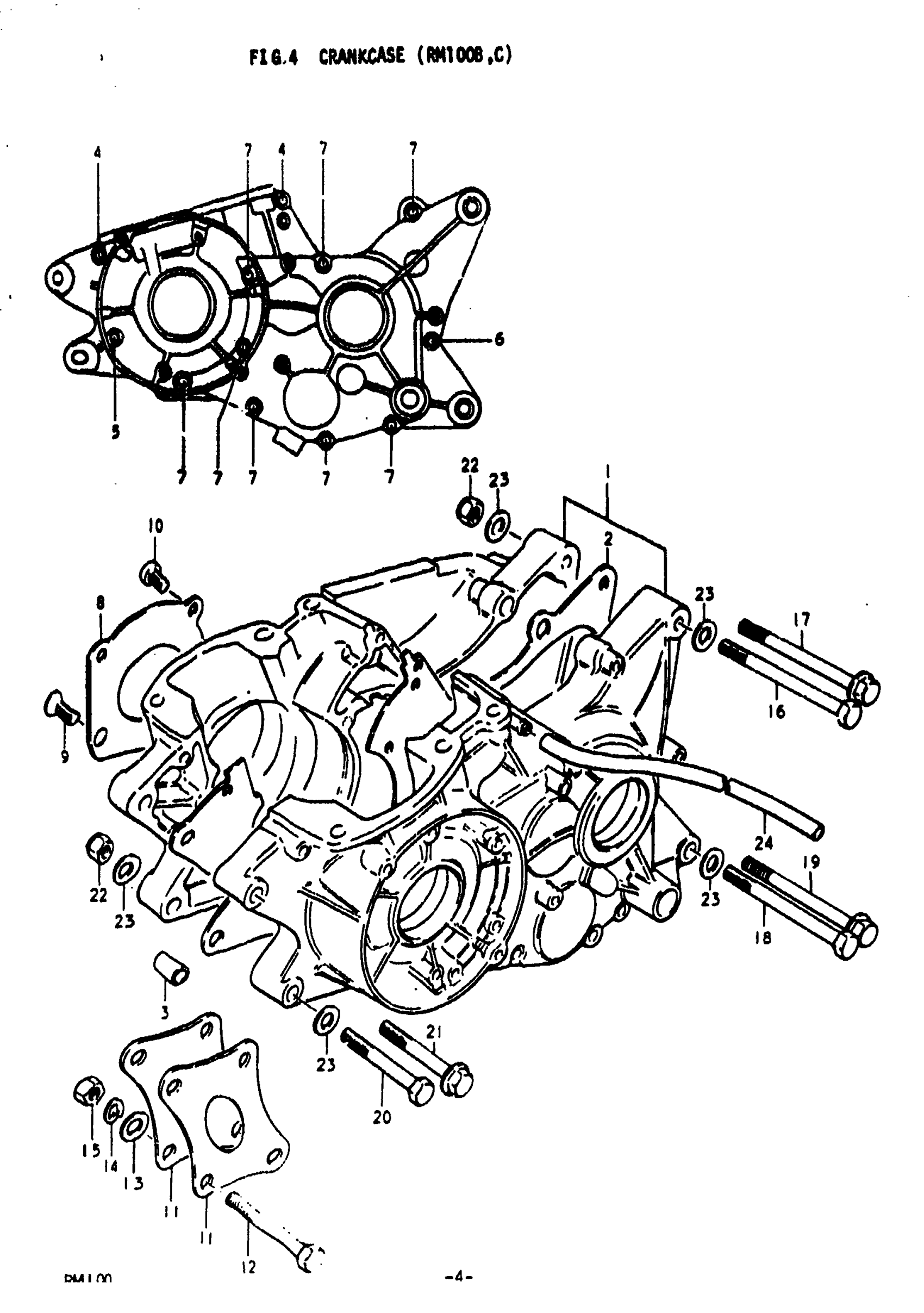

Suzuki RM100 (1978) CRANKCASE (RM100B Diagram

#

Description
Price

1

CRANKCASE SET | B; TO 11300-41831 This part replaces 11300-41830.

11300-41831

Unavailable

1

CRANKCASE SET | C; Includes Item(s) 2 - 7

11300-41831

Unavailable

2

GASKET,CRANKCAS | B,C This part replaces 11481-41300.

11481-41301

Unavailable

3

PIN | B,C This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW | B,C This part replaces 02112-06358.

02112-06357

$1.77

5

SCREW (6X45) | B,C This part replaces 02112-06458.

02112-06457

$1.77

6

6X50 CROSS SCRE | B,C This part replaces 02112-06508.

02112-06507

$2.00

7

SCREW | B,C This part replaces 02112-06608.

02112-06607

$2.59

8

PLATE, OIL RESERVOIR | B,C

12521-29102

Unavailable

9

SCREW | B,C This part replaces 02122-06128.

02122-06127

$1.83

10

SCREW | B,C This part replaces 02112-06128.

02112-06127

$1.83

11

PLATE, ENGINE MOUNTING | B,C

41991-41300

Unavailable

12

BOLT | B,C This part replaces 01107-08708.

01500-0870B

$4.45

13

WASHER | B,C This part replaces 08322-11088.

08322-01087

$1.86

14

.LOCK WASHER | B,C This part replaces 08321-21088.

08321-01087

$1.83

15

NUT | B,C This part replaces 08310-12088.

08310-00087

$1.83

16

BOLT | B; 8x105 This part replaces 09100-08024.

09100-08228

$7.62

17

BOLT (8X105) | C; 8x105 This part replaces 09103-08023.

09103-08097

$3.15

18

BOLT, NO.2 | B; 8x100

09100-08023

Unavailable

19

BOLT (8X100) | C; 8x100 This part replaces 09103-08009.

09103-08070

$5.09

20

BOLT | B This part replaces 01122-08708.

01500-0870B

$4.45

21

BOLT | C This part replaces 01517-08708.

01550-08707

$3.58

22

NUT | B,C

09159-08020

$1.80

23

WASHER | BC This part replaces 08322-11088.

08322-01087

$1.86

24

HOSE | B,C; 5x8x180 This part replaces 09343-05021.

09352-50005-00B

$12.58
