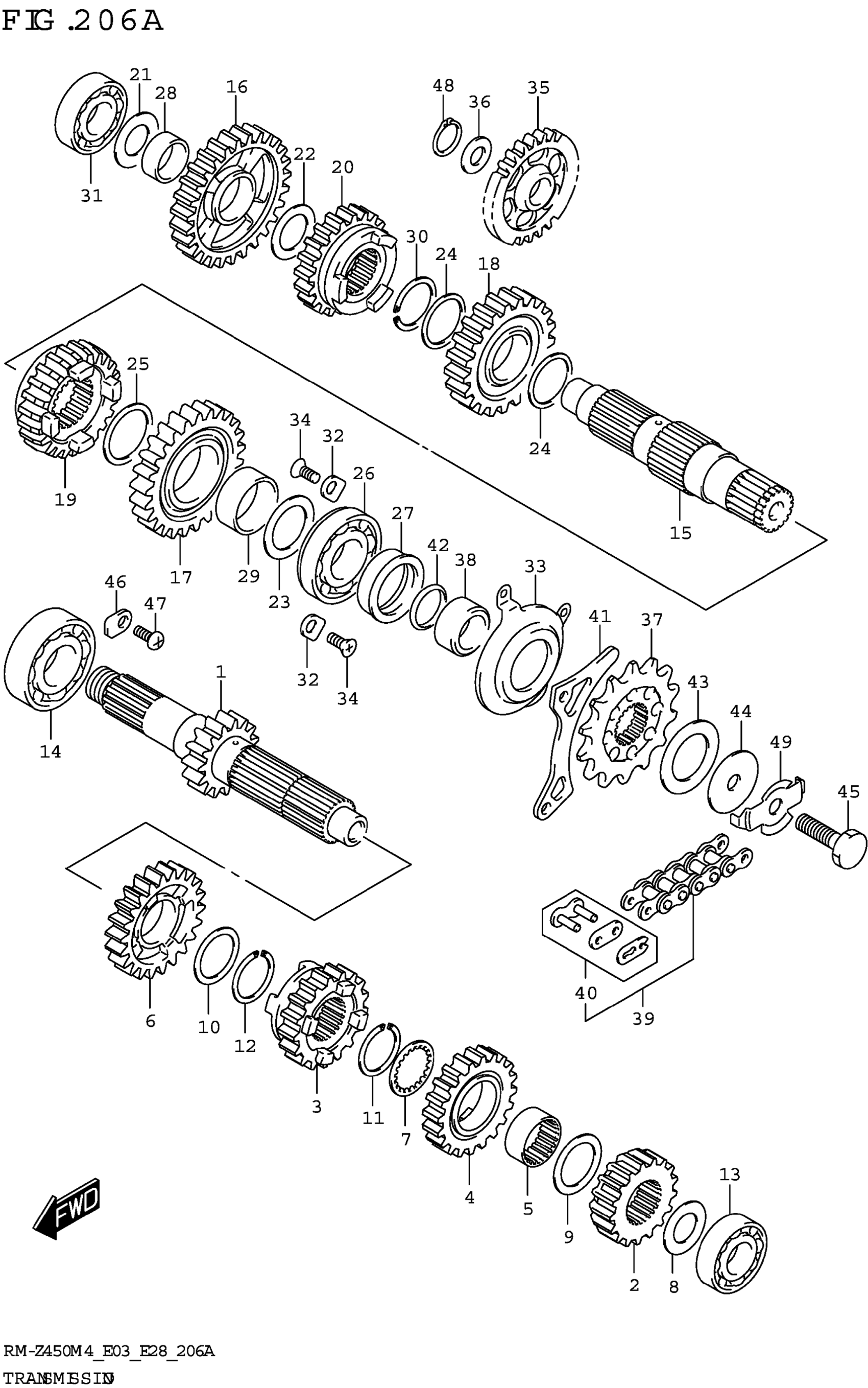

2024 Suzuki RM-Z450M4 Transmission Diagram
Find the part on the Transmission diagram for your 2024 Suzuki RM-Z450M4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
9
WASHER, 5TH DRIVE This part replaces 09181-25059.
09181-25167
1
Out of stock
10
SHIM (25X32X1)
09181-25139
1
Out of stock
22
SHIM (20X30X1)
09181-20195
1
Out of stock
34
SCREW (6X12)
09126-06011
2
Out of stock
46
RETAINER
24741-21A00
1
Out of stock
47
SCREW (6X12)
09125-06122
1
Out of stock
