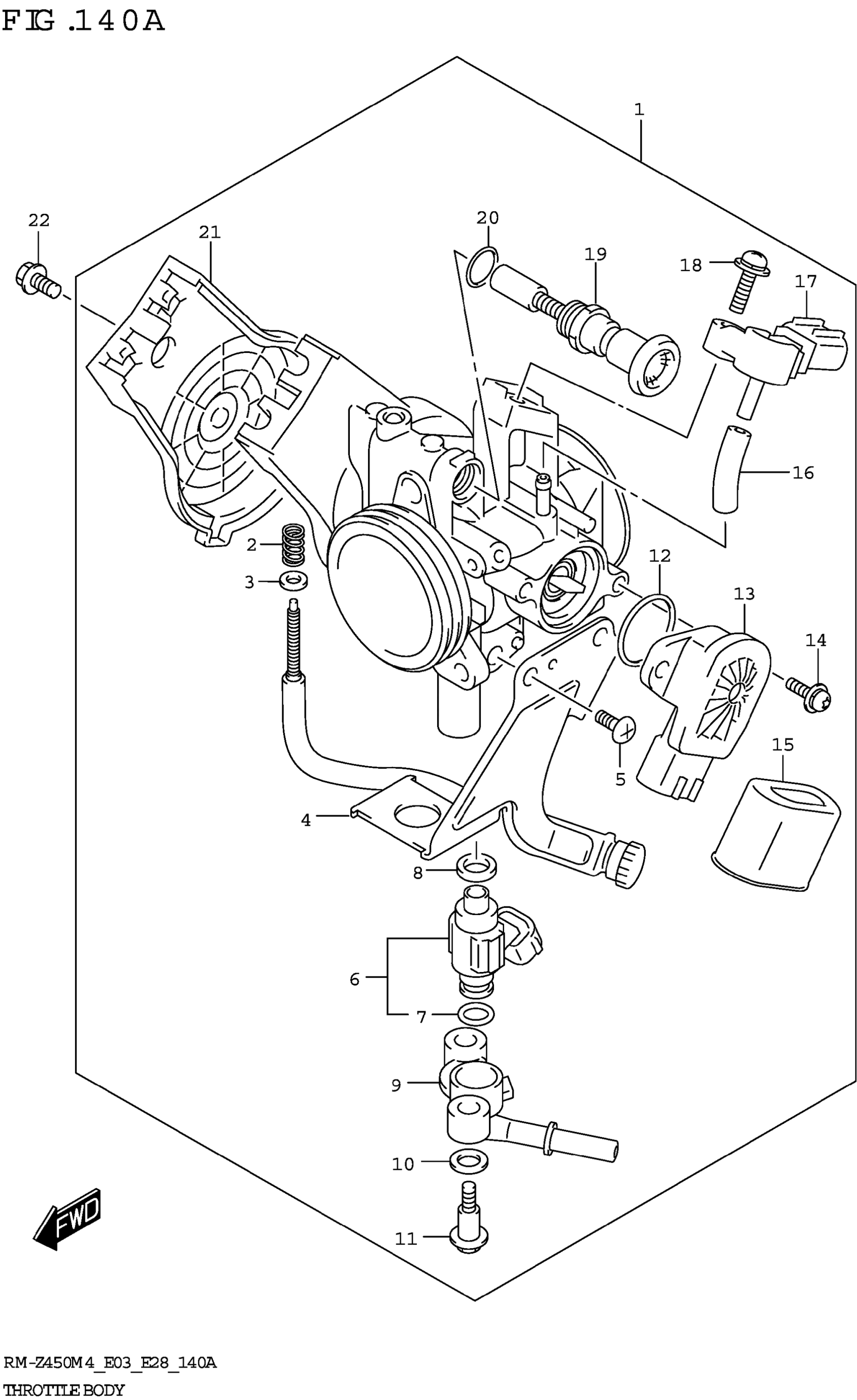

Find the part on the Throttle Body diagram for your 2024 Suzuki RM-Z450M4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Suzuki RM-Z450M4 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSY,THROTTLE

13041-37K01

1

$685.97

In stock

2

.SPRING

13271-96110

1
Out of stock

3

.WASHER

13615-43010

1
Out of stock

4

.ADJUSTER SCREW ASSY

13270-37K00

1

$55.32

In stock

5

.SCREW

13602-02F00

2
Out of stock

6

.INJECTOR ASSY

15710-37K00

1

$273.72

In stock

7

.O-RING

15717-58B00

1
Out of stock

8

SEAL

15722-14J00

1
Out of stock

9

.DELIVERY PIPE

15731-37K00

1

$217.75

In stock

10

PACKING

13602-29G01

2
Out of stock

11

SCREW

13601-11J00

2
Out of stock

12

.O-RING

13575-31G00

1

$12.98

In stock

13

.SENSOR ASSY

13580-37K00

1

$231.53

In stock

14

.SCREW

13605-37K00

2

$2.90

In stock

15

.COVER

13589-37K00

1

$59.65

In stock

16

HOSE (L:425)

13683-10F61

1
Out of stock

17

SENSOR,BOOST

18590-18K00

1

$350.62

In stock

18

SCREW

13437-14J00

1
Out of stock

19

.PLUNGER ASSY

13411-37K00

1

$39.80

In stock

20

.O RING (16)

13278-47091

1
Out of stock

21

.COVER,THROTTLE

13484-37K00

1
Out of stock

22

SCREW,THROTTLE COVER

13601-37K00

1

$2.92

In stock
