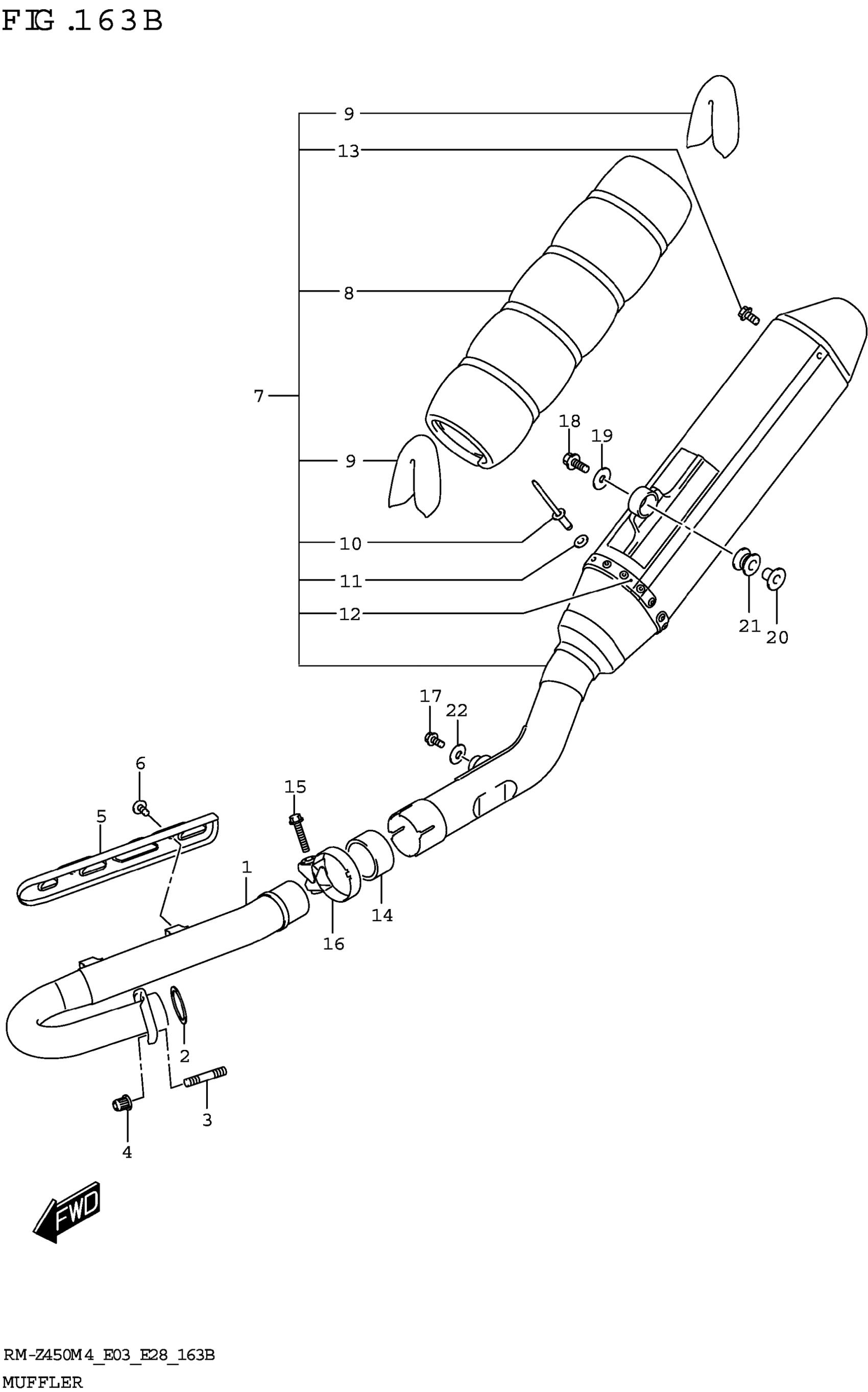

Suzuki RM-Z450M4 (2024) MUFFLER Diagram

#

Description
Price

1

PIPE,EXHAUST

14150-28H60

$265.83

2

.GASKET,EXHAUST PIPE

14181-35G00

$8.52

3

BOLT,STUD

01421-0816A

$1.77

4

NUT

09159-08144

$16.55

5

COVER,EXHAUST PIPE

14186-28H20

$61.78

6

BOLT (6X8)

09139-06178

$5.13

7

BODY,MUFFLER

14310-37K10

$891.83

8

.SILENCER,MUF

14351-28H60

$347.15

9

.GLASS WOOL,MUF TAIL

14355-49H00

$28.50

10

.RIVET,MUFFLER

14454-28H00

Unavailable

11

.WASHER

14456-28H00

$1.93

12

.BAND,MUFFLER

14781-28H10

Unavailable

13

BOLT

01547-0612A

$2.01

14

CONNECTOR,MUF

14771-42F10

$21.17

15

BOLT (8X35)

09103-08536

$2.92

16

CLAMP,CONNECTOR

14459-28H00

$41.53

17

BOLT (8X20)

09103-08426

$5.87

18

BOLT (8X35)

09103-08536

$2.92

19

WASHER (8.5X26X1.6)

09160-08151

$2.00

20

SPACER (8.6X12X18.5)

09180-08157

$7.75

21

CUSHION

09320-12043

$7.20

22

WASHER (8X20X1)

09160-08103

$1.34
