2024 Suzuki RM-Z450M4 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2024 Suzuki RM-Z450M4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

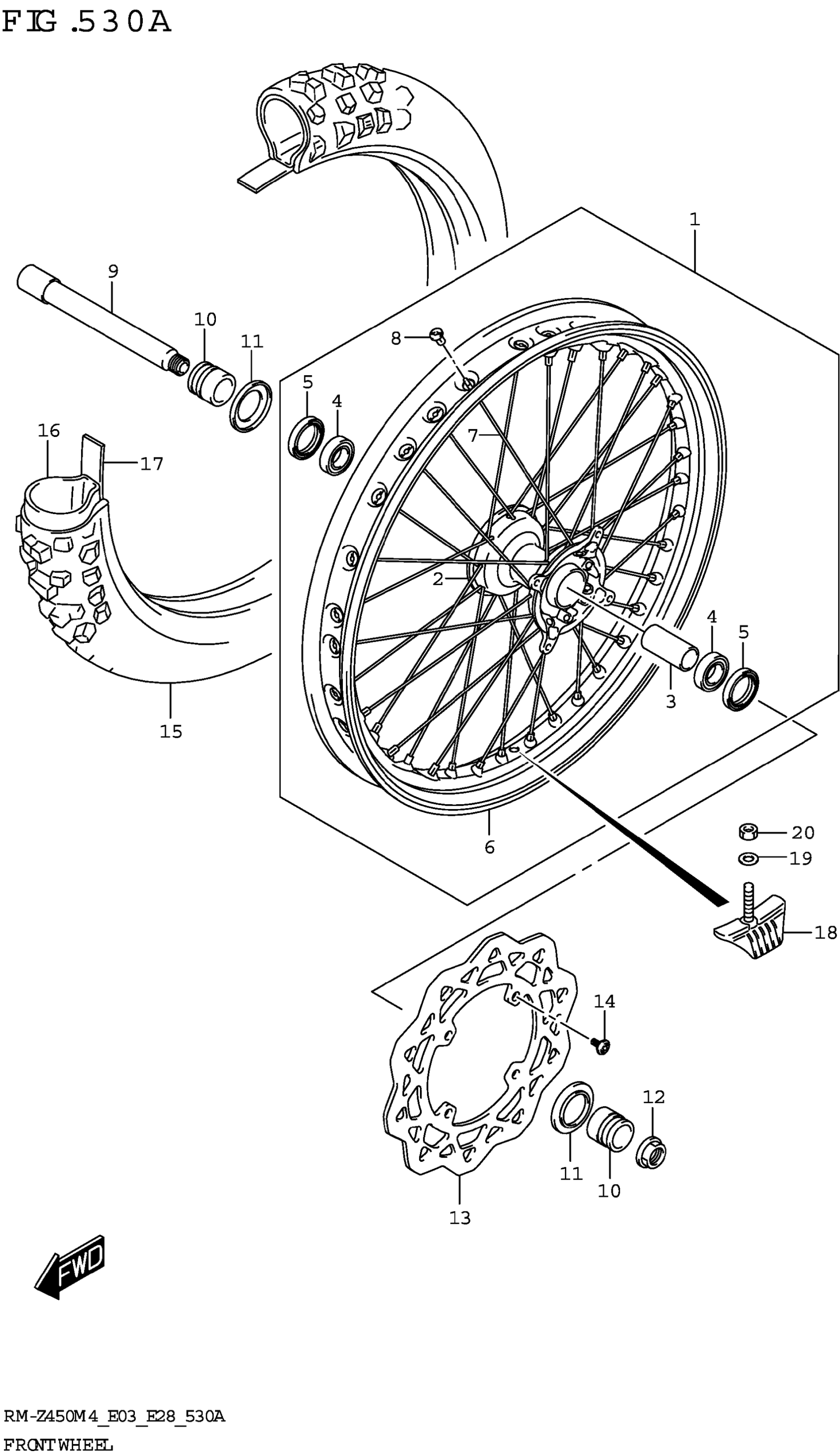

2024 Suzuki RM-Z450M4 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL ASSY,FRONT

54100-37K01

1
Out of stock

2

.HUB,FR

54111-35G01

1
Out of stock

3

.SPACER,FR HUB BEARING (20.5X | 5X27.3X50)

54731-35G00

1
Out of stock

4

.BEARING (22X39X9)

09262-22048

2
Out of stock

5

.SEAL,OIL (30X40X7)

09283-30073

2
Out of stock

6

.RIM,FR WHEEL (21X1.60)

55311-37K00

1
Out of stock

7

.SPOKE,FR WHEEL

55321-35G10

36
Out of stock

8

.NIPPLE,FRONT WHEEL

55325-35G00

36
Out of stock

9

AXLE,FR

54711-35G00

1
Out of stock

10

SPACER,FR AXLE (L:41)

54741-35G00

2
Out of stock

11

COVER,FR AXLE SPACER

54742-35G00

2
Out of stock

12

NUT

09159-18016

1
Out of stock

13

DISC,FRONT BRAKE

59221-37K00

1
Out of stock

14

SCREW (6X13.5)

09139-06142

4
Out of stock

15

TIRE,FR (80/100-21) | X30F,BRIDGESTONE

55110-37K00

1
Out of stock

16

TUBE ASSY,WHEEL INNER

55200-32E01

1

$66.32

In stock

17

PROTECTOR,WHL INR TUBE

55261-35G01

1
Out of stock

18

STOPPER, BEAD (1.6)

65270-08G00

1
Out of stock

19

WASHER

08322-0108A

1
Out of stock

20

NUT

08310-0008A

1
Out of stock
