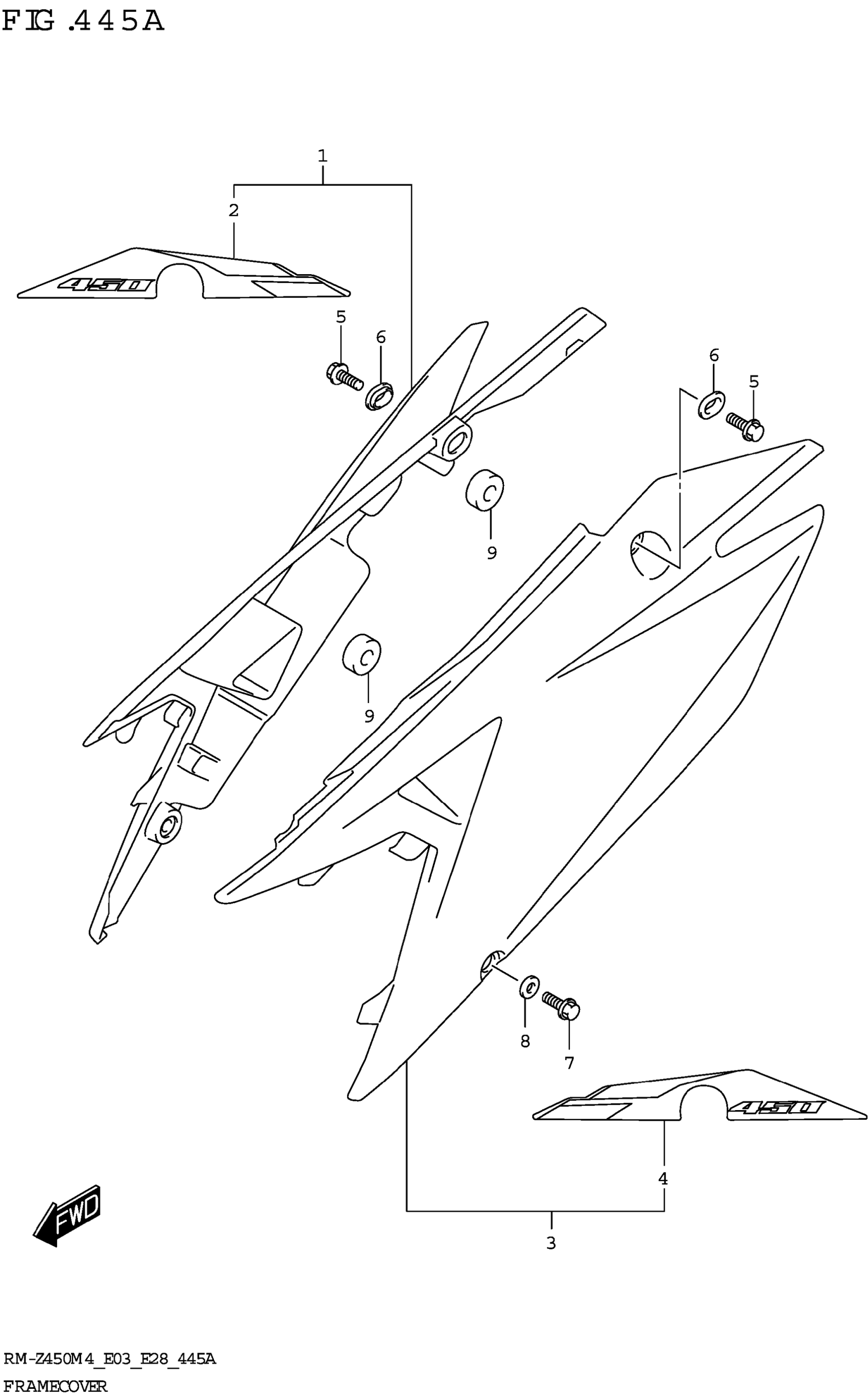

Suzuki RM-Z450M4 (2024) FRAME COVER Diagram

#

Description

Price

1

COVER,FRAME,R (WHITE)

47110-37K10-30H

$134.58

2

.TAPE,FRAME COVER,R (ORANGE,Y | LLOW,BLACK,WHITE)

68135-37K10-BLE

$29.97

3

COVER,FRAME,L (WHITE)

47210-37K10-30H

$134.58

4

.TAPE,FRAME COVER,L (ORANGE,Y | LLOW,BLACK,WHITE)

68145-37K10-BLE

$29.97

5

BOLT,RADIATOR COVER

47255-37K00

$1.62

6

WASHER,RADIATOR COVER

47192-37K00

$6.85

7

BOLT

01547-0616A

$2.01

8

WASHER,FRAME COVER & SEAT | FRONT

47191-28H00

$9.03

9

CUSHION (9X26X14) | RH

47161-08G00

$10.88
