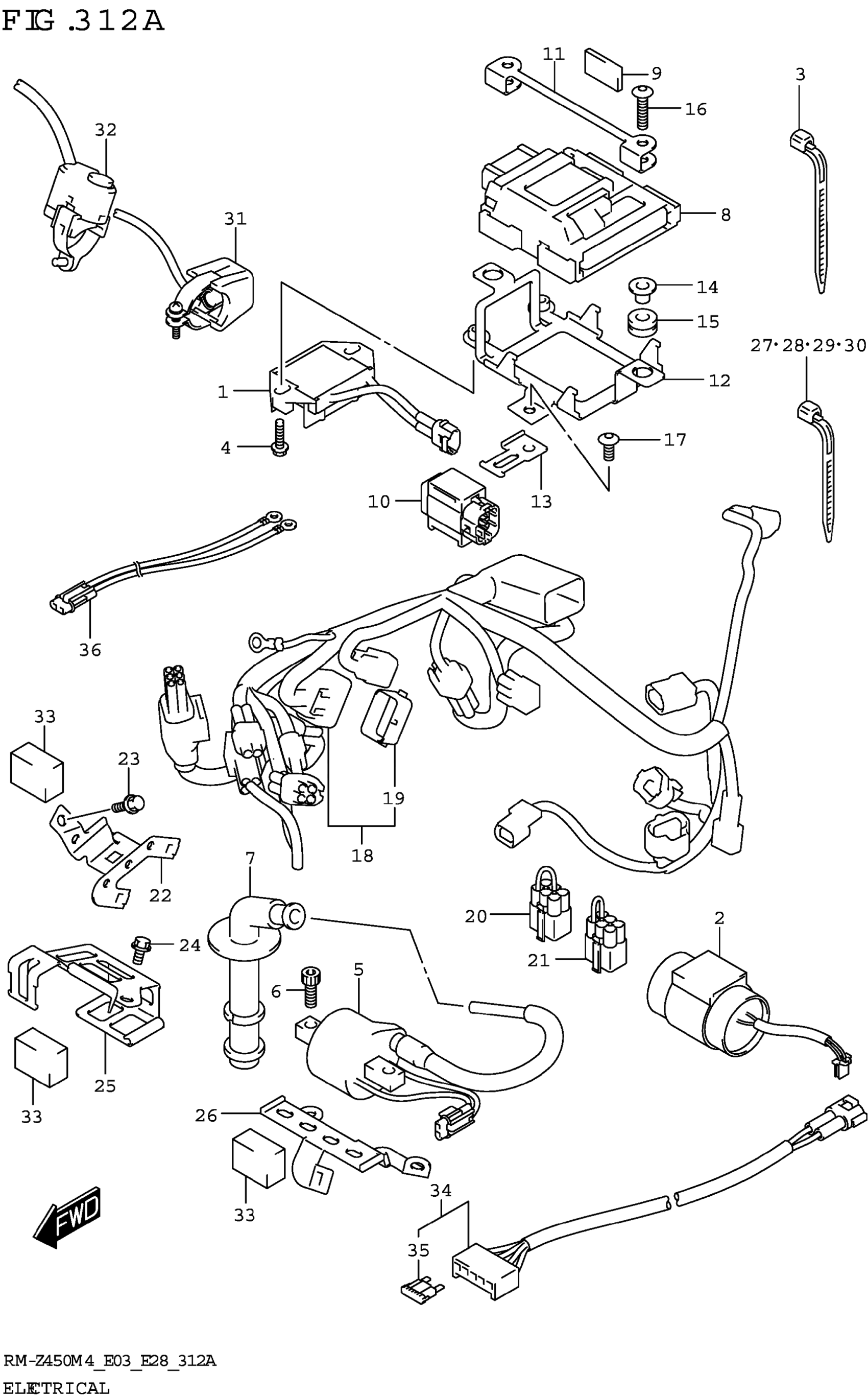

Suzuki RM-Z450M4 (2024) ELECTRICAL (E28) Diagram

#

Description
Price

1

RECTIFIER ASSY

32800-28H00

$186.93

2

CONDENSER ASSY

33640-28H00

$146.91

3

CLAMP (L:190)

09407-19401

$3.32

4

BOLT

01547-0620A

$2.01

5

COIL ASSY,IGNITION

33410-28H00

$90.59

6

BOLT

09106-06141

$3.22

7

CAP ASSY,SPARK PLUG

33510-28H00

$67.48

8

CONTROL UNIT,FI

32920-37K20

$486.40

9

CUSHION

32980-37K00

$4.33

10

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31

11

BRACKET,FI CONTROL UNIT UPPER

32931-37K00

$43.15

12

BRACKET,FI CONTROL UNIT LOWER

32932-37K00

$70.32

13

BRACKET,FUEL CUT SENSOR

33961-37K00

$17.15

14

SPACER (6.2X8.4X10.9)

09180-06331

$5.17

15

CUSHION (8X18X10)

09320-08501

$2.95

16

BOLT (6X25)

09139-06196

$2.36

17

SCREW (6X12)

09139-06215

$2.74

18

HARNESS,WIRING

36610-37K10

$328.82

19

.CAP,TS

36852-46K00

Unavailable

20

WIRE,SHORT

36852-28H01

$14.88

21

WIRE,SHORT

36852-49H01

$10.50

22

BRACKET,COUPLER

36670-37K10

$22.07

23

BOLT

01547-0610A

$1.47

24

BOLT

01547-0612A

$2.01

25

BRACKET,COUPLER

36672-37K00

$15.65

26

BRACKET,COUPLER

36672-37K30

$14.68

27

CLAMP (L:95)

09407-11401

$2.87

28

CLAMP (L:100)

09407-10404

$2.71

29

CLAMP (L:125)

09407-14403

$2.24

30

CLAMP (L:170)

09407-17403

$4.63

31

SWITCH ASSY,ENGINE STOP

37820-36E00

$22.19

32

SWITCH ASSY,LAUNCH CONTROL

37820-37K00

$149.45

33

CUSHION,HARNESS WIRING

36652-37K00

$2.73

34

WIRE,BATTERY | OPT

36890-28H00

$51.95

35

.FUSE (10A) | OPT

09481-10101

$0.68

36

WIRE,INJECTOR LEAD | OPT

15718-21H00

$49.37
