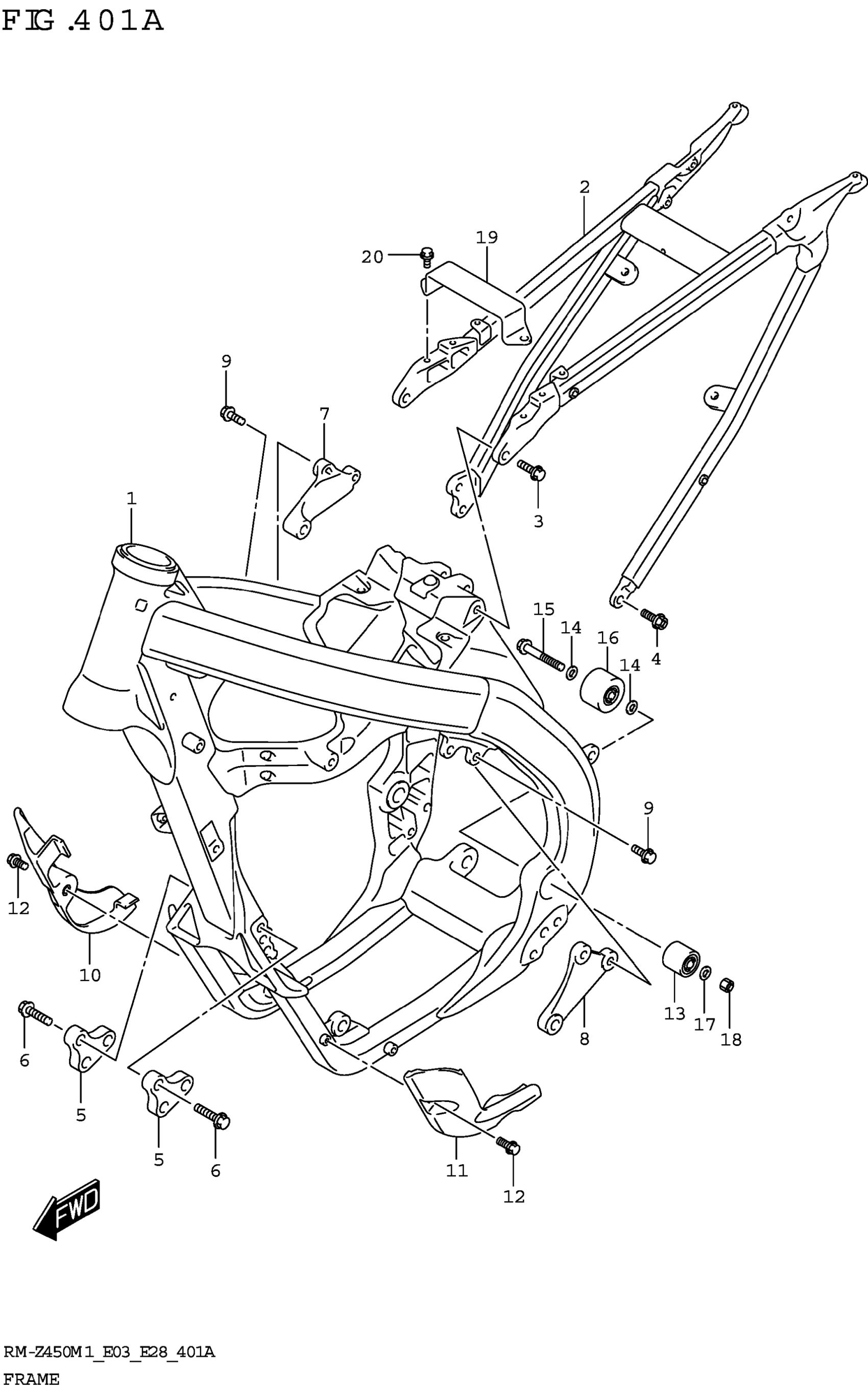

Find the part on the Frame diagram for your 2021 Suzuki RM-Z450M1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Suzuki RM-Z450M1 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME This part replaces 41100-37K00.

41100-37K10

1
Out of stock

2

RAIL,SEAT

41200-37K00

1
Out of stock

3

BOLT (8X25)

09103-08288

2
Out of stock

4

BOLT (8X20)

09103-08505

2
Out of stock

5

BRACKET,ENG MTG FR

41991-37K00

2
Out of stock

6

BOLT (10X32)

09103-10342

4
Out of stock

7

BRACKET,ENG MTG UPPER,R

41931-37K01

1
Out of stock

8

BRACKET,ENG MTG UPPER,L

41941-37K02

1
Out of stock

9

BOLT (8X20)

09103-08505

4
Out of stock

10

PROTECTOR,FRONT,R

42520-28H11

1
Out of stock

11

PROTECTOR,FRONT,L

42530-28H20

1
Out of stock

12

BOLT (6X25)

09116-06177

3
Out of stock

13

ROLLER,CHAIN

43910-37F00

1
Out of stock

14

SHIM (8X16X1)

09181-08167

2
Out of stock

15

BOLT (8X45)

09103-08207

1
Out of stock

16

ROLLER,CHAIN

43910-37F00

1
Out of stock

17

SHIM (8X12X1)

09181-08111

1
Out of stock

18

NUT

08319-2108A

1

$2.31

In stock

19

BOLT

01547-0612A

2
Out of stock

20

BRIDGE,SEAT RAIL UPPER

41542-46K00

1
Out of stock
