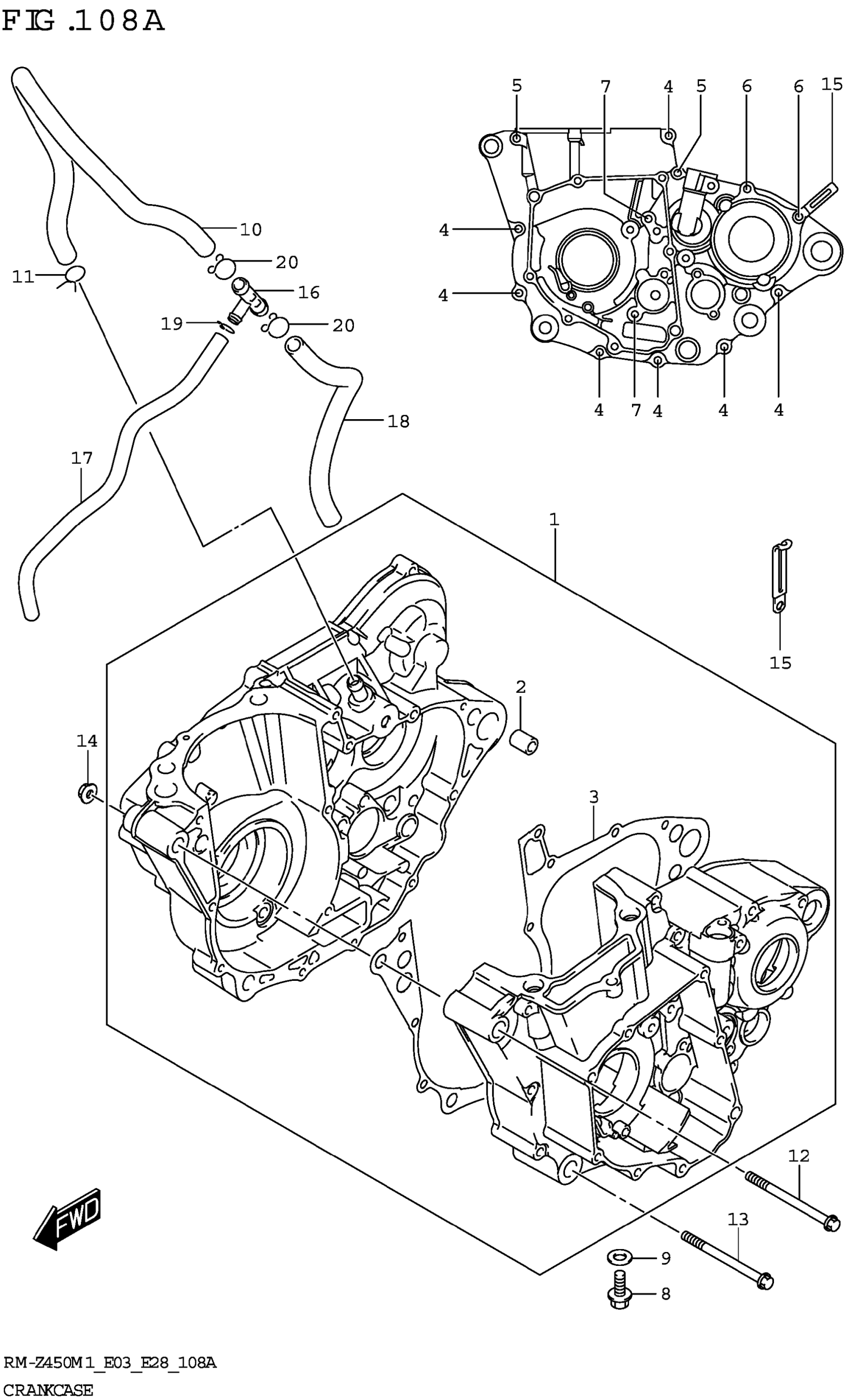

Suzuki RM-Z450M1 (2021) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11301-28890

$853.47

2

PIN (10.4X13X18)

04211-13189

$2.19

3

.GASKET,CRANKCASE

11481-28H00

$19.77

4

.BOLT

01547-0655A

$2.43

5

BOLT

01547-0665A

$2.34

6

BOLT

01547-0675A

$3.67

7

.BOLT

01547-0680A

$3.58

8

BOLT (8X20)

09103-08393

$2.50

9

GASKET (8.2X14X1)

09168-08016

$1.64

10

HOSE,BREATHER NO.1

11332-49H41

Unavailable

11

CLIP

09401-13301

$2.95

12

BOLT (10X130)

09103-10464

$10.77

13

BOLT (10X125)

09103-10446

$12.23

14

NUT

09159-10122

$8.53

15

CLAMP (L:45)

09404-06429

$1.82

16

JOINT,BREATHER HOSE

11331-28H00

$7.35

17

HOSE,BREATHER NO.3

11334-49H01

Unavailable

18

HOSE

09352-90134-260

Unavailable

19

CLIP This part replaces 09401-10410.

09401-10401

$1.45

20

CLIP

09401-13102

$3.42
