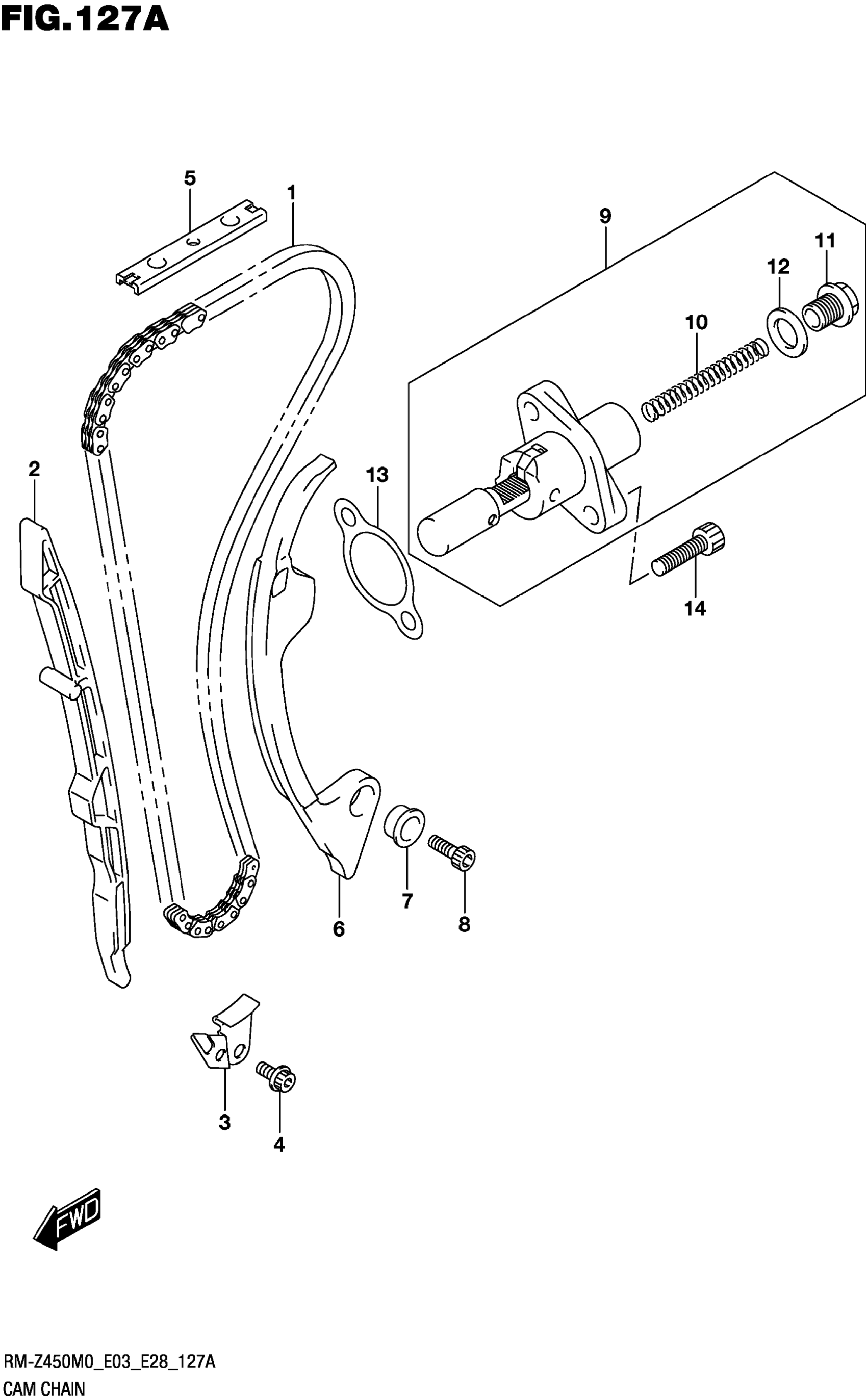

Suzuki RM-Z450M0 (2020) CAM CHAIN Diagram

#

Description
Price

1

CHAIN,CAMSHAFT DRIVE (82RH201 | -124M)

12760-35G00

$47.94

2

GUIDE,CAM CHAIN NO.1

12771-28H10

$44.60

3

RETAINER,CAM CHAIN GUIDE NO.1

12773-28H10

$9.08

4

.BOLT

07120-0610A

$2.58

5

GUIDE,CAM CHAIN NO.2 This part replaces 12782-35G00.

12782-35G01

$11.44

6

TENSIONER,CAM CHAIN

12811-28H11

$105.63

7

SPACER,CAM CHAIN TENSIONER

12812-35G00

$17.12

8

BOLT This part replaces 07130-0616A.

07130-0616B

$2.44

9

ADJUSTER ASSY,TENSIONER

12830-35G20

$214.98

10

.SPRING

12831-35F00

$7.75

11

.PLUG

12833-05A00

$21.62

12

.GASKET,TENSIONER ADJUSTER

12837-24F10

$4.57

13

.GASKET,TENSIONER ADJUSTER

12837-24A10

$3.11

14

BOLT (6X25)

07130-0625A

$2.74
