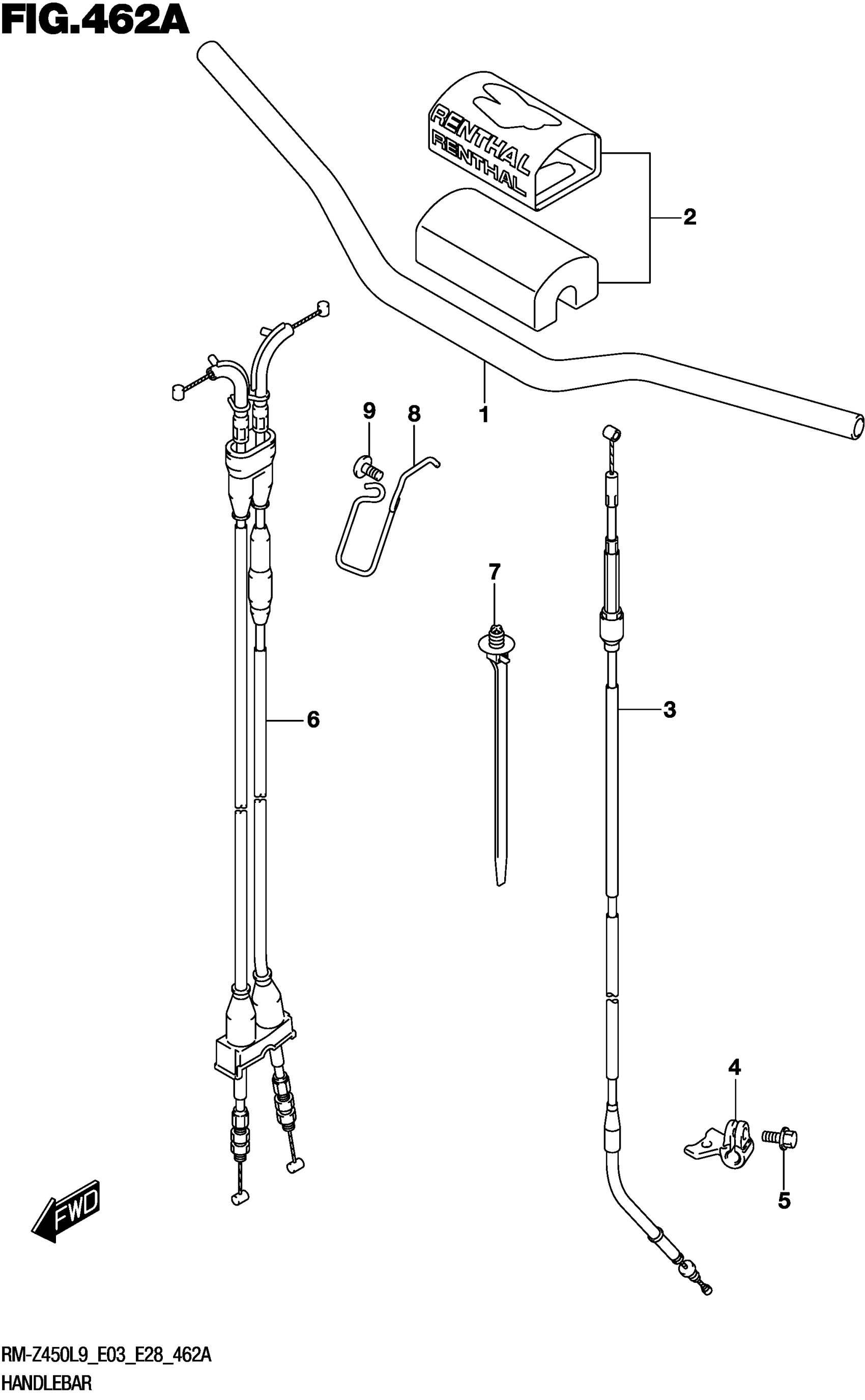

Suzuki RM-Z450L9 (2019) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56110-37K00

$407.10

2

PAD SET,HANDLEBAR

56170-35G00

Unavailable

3

CABLE ASSY,CLUTCH This part replaces 58210-37K01.

58210-37K02

$41.08

4

BRACKET,CLUTCH CABLE

58212-28H00

$116.62

5

BOLT

01547-0612A

$2.01

6

CABLE SET,THROTTLE This part replaces 58301-37K00.

58301-37K01

$74.13

7

CLAMP (L:170)

09407-17403

$4.63

8

GUIDE,CABLE

58311-37K00

$8.41

9

SCREW (6X10)

09139-06181

$3.52
