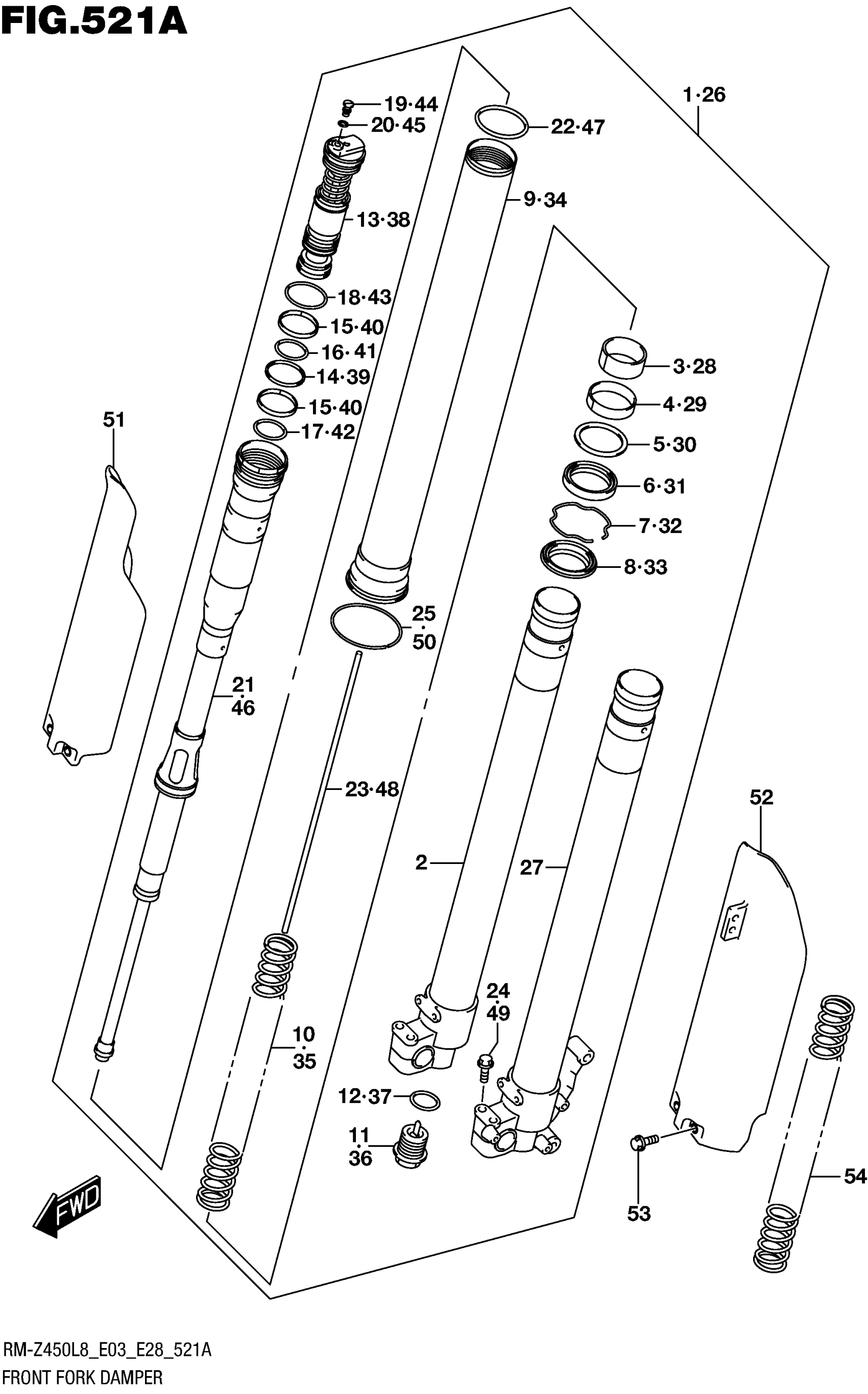

Suzuki RM-Z450L8 (2018) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-37K00

$1,834.40

2

.TUBE,INNER,R

51110-37K00

$381.95

3

..BUSH,SLIDE

51127-28H40

$32.15

4

..BUSH,GUIDE

51167-28H40

$31.45

5

..SPACER,SEAL

51158-36E00

$10.58

6

..SEAL,OIL

51153-36E00

$40.83

7

..RING,STOPPER

51156-36E00

$9.53

8

..SEAL,DUST

51173-37K00

$32.33

9

.TUBE,OUTER

51140-37K00

$614.45

10

.SPRING,FRONT (K=5.0N/MM) | (STD K=5.0)

51171-37K00

$145.17

11

.BOLT,CENTER

51170-37K00

$117.65

12

..O-RING

51122-28H40

$4.40

13

.BOLT,FORK

51350-37K00

$546.87

14

..PISTON-RING

51124-28H40

$5.70

15

..BUSH C,SLIDE

51123-28H40

$15.35

16

..O-RING

51174-28H40

$5.32

17

..O-RING

51175-28H40

$5.65

18

..O-RING

51187-47H00

$6.52

19

..BOLT,PLUG

51357-36F20

$15.77

20

...O-RING

51358-28E30

$4.83

21

.DAMPER

51190-37K00

$903.33

22

..O-RING

51118-28H30

$5.48

23

.ROD,PUSH

51191-37K00

$15.35

24

BOLT

51328-37F80

$6.64

25

.RING,STOPPER

51211-28H40

$15.90

26

DAMPER ASSY, FRONT FORK LH

51104-37K00

$1,834.40

27

.TUBE,INNER,L

51120-37K00

$374.87

28

..BUSH,SLIDE

51127-28H40

$32.15

29

..BUSH,GUIDE

51167-28H40

$31.45

30

..SPACER,SEAL

51158-36E00

$10.58

31

..SEAL,OIL

51153-36E00

$40.83

32

..RING,STOPPER

51156-36E00

$9.53

33

..SEAL,DUST

51173-37K00

$32.33

34

.TUBE,OUTER

51140-37K00

$614.45

35

.SPRING,FRONT (K=5.0N/MM) | (STD K=5.0N/MM)

51171-37K00

$145.17

36

.BOLT,CENTER

51170-37K00

$117.65

37

..O-RING

51122-28H40

$4.40

38

.BOLT,FORK

51350-37K00

$546.87

39

..PISTON-RING

51124-28H40

$5.70

40

..BUSH C,SLIDE

51123-28H40

$15.35

41

..O-RING

51174-28H40

$5.32

42

..O-RING

51175-28H40

$5.65

43

..O-RING

51187-47H00

$6.52

44

..BOLT,PLUG

51357-36F20

$15.77

45

...O-RING

51358-28E30

$4.83

46

.DAMPER

51190-37K00

$903.33

47

..O-RING

51118-28H30

$5.48

48

.ROD,PUSH

51191-37K00

$15.35

49

BOLT

51328-37F80

$6.64

50

.RING,STOPPER

51211-28H40

$15.90

51

PROTECTOR,FRONT FORK,R

51501-28H60

$65.53

52

PROTECTOR,FRONT FORK,L

51510-28H70

$116.52

53

BOLT (6X10)

09111-06098

$3.30

54-1

SPRING,FRONT (K=4.8N/MM) | OPT

51171-37K10

$145.17

54-1

SPRING,FRONT (K=4.8N/MM) | (SOFT K=4.8N/MM)

51171-37K10

$145.17

54-2

SPRING,FRONT (K=5.2N/MM) | OPT

51171-37K20

$145.17

54-2

SPRING,FRONT (K=5.2N/MM) | (HARD K=5.2N/MM)

51171-37K20

$145.17
