2018 Suzuki RM-Z450L8 Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 2018 Suzuki RM-Z450L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

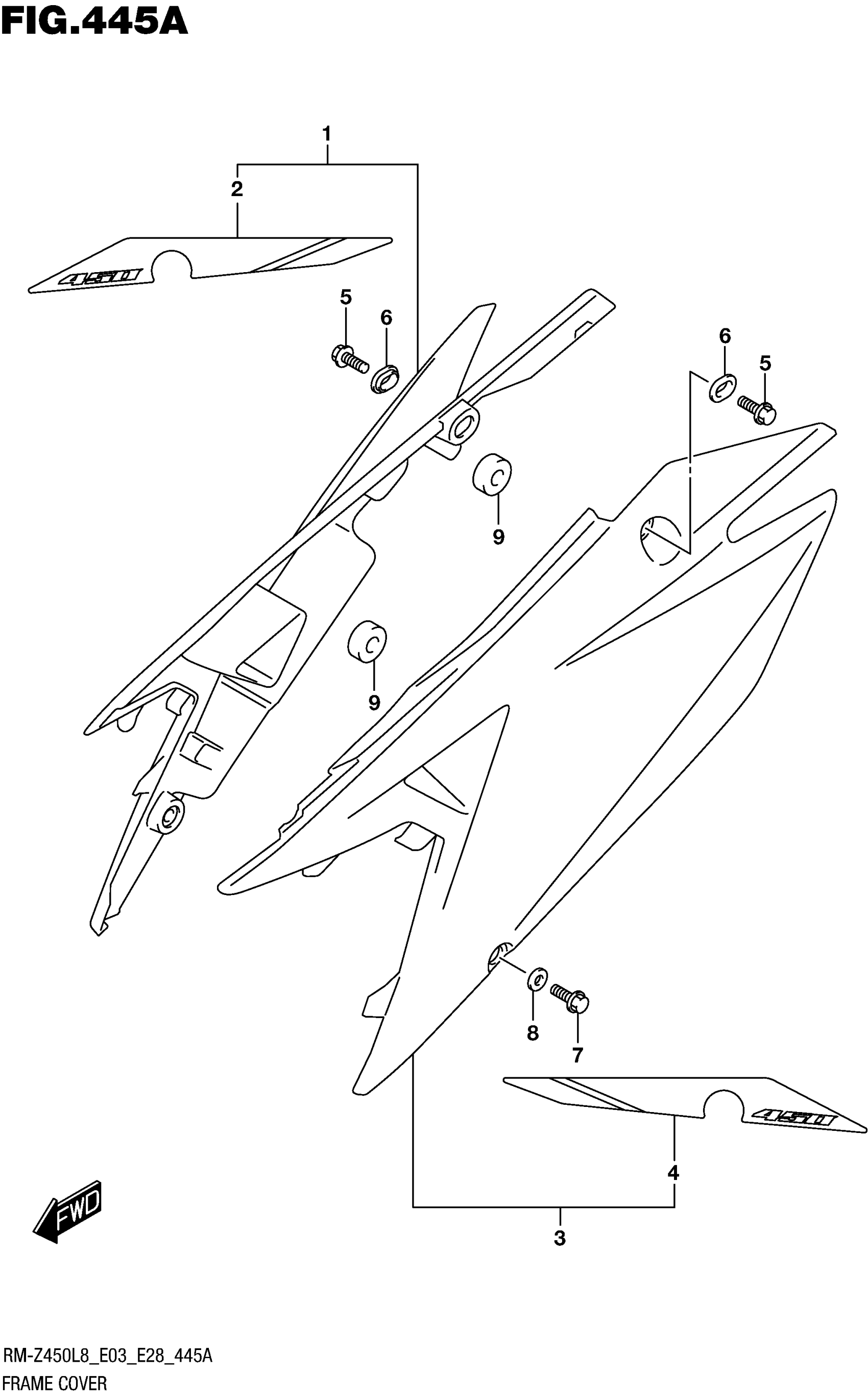

2018 Suzuki RM-Z450L8 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER ASSY, FRAME RH (WHITE)

47110-37K00-30H

1
Out of stock

2

.TAPE, FRAME COVER, RH

68135-37K00-BLE

—
Out of stock

3

COVER ASSY, FRAME LH (WHITE)

47210-37K00-30H

1
Out of stock

4

.TAPE, FRAME COVER, LH

68145-37K00-BLE

—
Out of stock

5

BOLT

47255-37K00

2
Out of stock

6

WASHER

47192-37K00

2
Out of stock

7

BOLT | FRONT

01547-0616A

2
Out of stock

8

WASHER | FRONT

47191-28H00

2
Out of stock

9

CUSHION, RH

47161-08G00

2
Out of stock
