2018 Suzuki RM-Z450L8 Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 2018 Suzuki RM-Z450L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

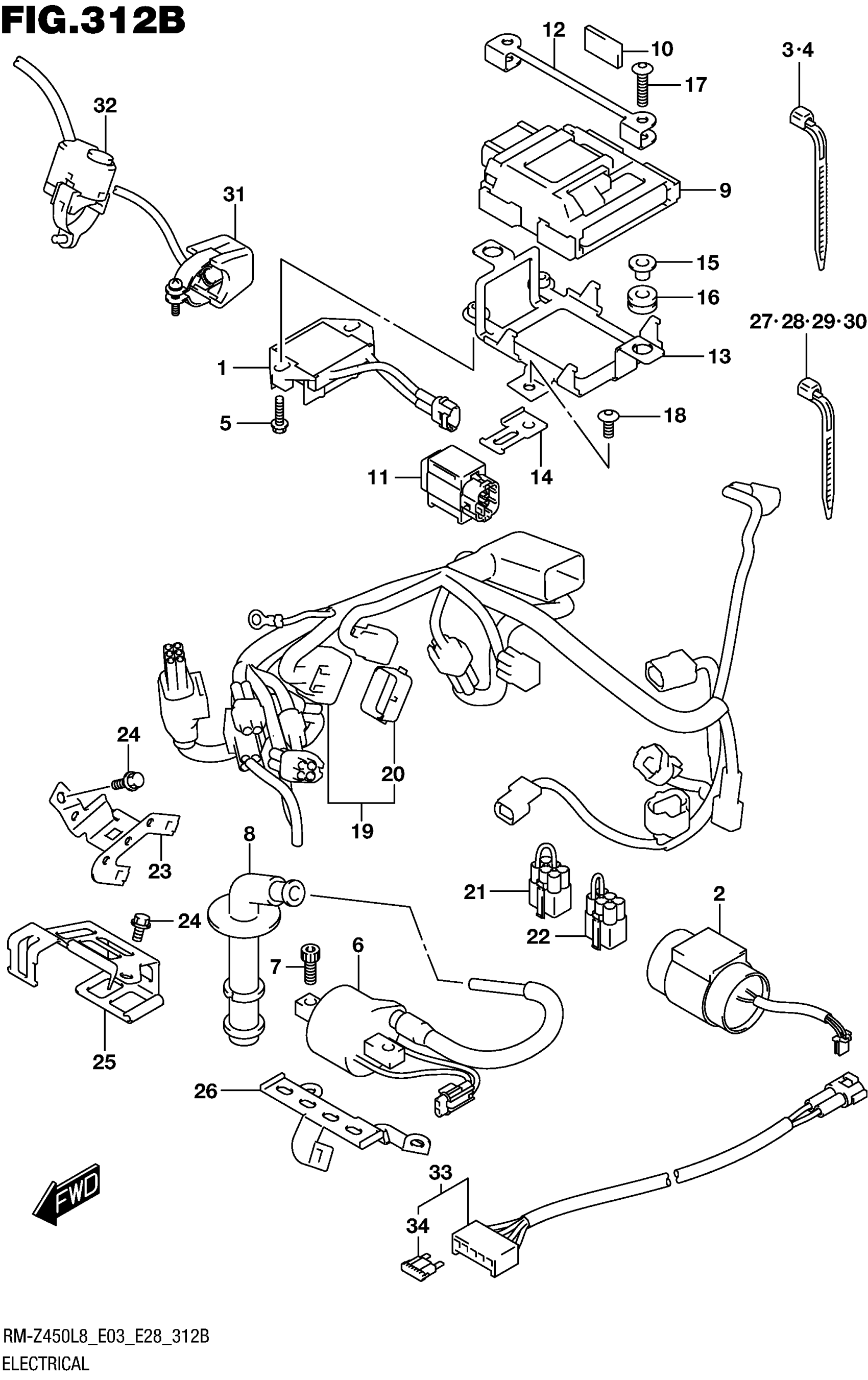

2018 Suzuki RM-Z450L8 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RECTIFIER ASSY

32800-28H00

1
Out of stock

2

CONDENSER ASSY

33640-28H00

1
Out of stock

3

CLAMP (L:190)

09407-19401

1
Out of stock

4

CLAMP (L:235)

09407-25401

1
Out of stock

5

BOLT

01547-0620A

2
Out of stock

6

COIL ASSY, IGNITION

33410-28H00

1
Out of stock

7

BOLT (L:22)

09160-06141

2
Out of stock

8

CAP ASSY,SPARK PLUG

33510-28H00

1
Out of stock

9

CONTROL UNIT,FI This part replaces 32920-37K00.

32920-37K01

1
Out of stock

10

CUSHION

32980-37K00

1
Out of stock

11

SENSOR ASSY,FUEL CUT

33960-06G10

1
Out of stock

12

BRACKET, FI CONTROL UNIT UPPE

32931-37K00

1
Out of stock

13

BRACKET, FI CONTROL UNIT LOWE

32932-37K00

1
Out of stock

14

BRACKET,FUEL CUT SENSOR

33961-37K00

1
Out of stock

15

SPACER (6.2X8.4X10.9)

09180-06331

2
Out of stock

16

CUSHION

09320-08501

2
Out of stock

17

BOLT

09139-06196

2
Out of stock

18

SCREW

09139-06215

1
Out of stock

19

HARNESS,WIRING This part replaces 36610-37K00.

36610-37K01

1
Out of stock

20

CAP,TS This part replaces 36654-46H00.

36654-46H01

1
Out of stock

21

WIRE,SHORT This part replaces 36852-28H00.

36852-28H01

1
Out of stock

22

WIRE,SHORT This part replaces 36852-49H00.

36852-49H01

1
Out of stock

23

BRACKET,COUPLER

36670-37K10

1
Out of stock

24

BOLT

01547-0610A

2
Out of stock

25

BRACKET, COUPLER

36672-37K10

—
Out of stock

26

BRACKET,COUPLER

36672-37K30

1
Out of stock

27

CLAMP (L:95)

09407-11401

3
Out of stock

28

CLAMP (L:100)

09407-10404

3
Out of stock

29

CLAMP (L:125)

09407-14403

3
Out of stock

30

CLAMP (L:154)

09407-17403

1
Out of stock

31

SWITCH ASSY,ENGINE STOP

37820-36E00

1
Out of stock

32

SWITCH ASSY, LAUNCH CONTROL

37820-37K00

1
Out of stock

33

WIRE, BATTERY | OPT

36890-28H00

1
Out of stock

34

.FUSE (10A) | OPT

09481-10101

1
Out of stock
