2018 Suzuki RM-Z450L8 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2018 Suzuki RM-Z450L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

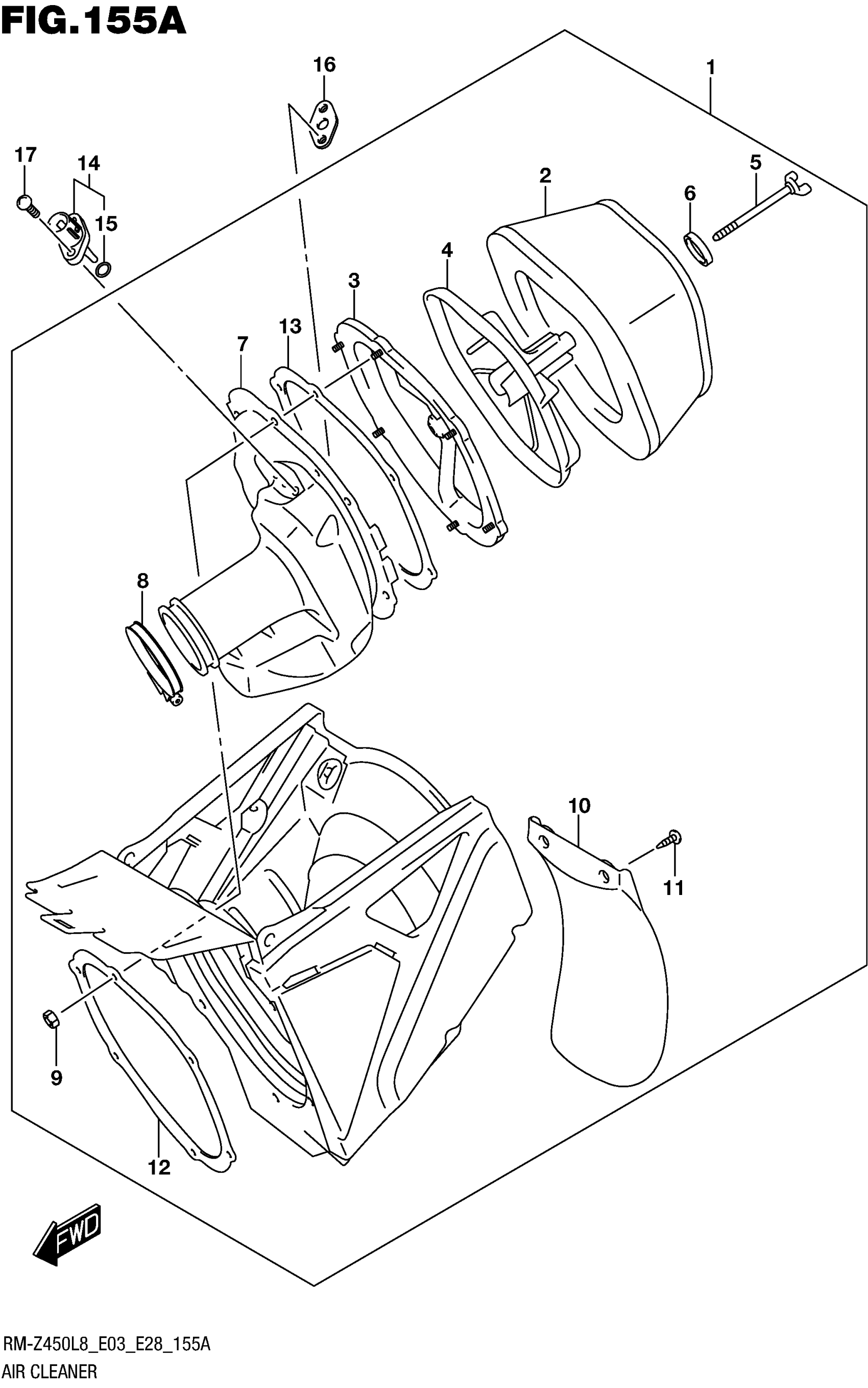

2018 Suzuki RM-Z450L8 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY,AIR This part replaces 13700-37K00.

13700-37K03

1
Out of stock

2

.FILTER ASSY

13780-37K00

1
Out of stock

3

.BASE,FILTER

13790-37K00

1
Out of stock

4

.HOLDER,FILTER

13791-37K00

1
Out of stock

5

.BOLT,WING

13831-37F20

1
Out of stock

6

.WASHER

13792-13A01

1
Out of stock

7

.TUBE, OUTLET

13881-37K00

1
Out of stock

8

.CLAMP,THROTTLE BODY SIDE

13826-37K00

1
Out of stock

9

.NUT

08319-2105B

6
Out of stock

10

.MUD GUARD

13738-36E10

1
Out of stock

11

.SCREW

13831-35F00

2
Out of stock

12

.PLATE,AIR CLEANER

13795-37K00

1
Out of stock

13

.GASKET,BASE FILTER

13796-37K00

1
Out of stock

14

SENSOR, AIR TEMP

13650-14G10

1
Out of stock

15

.O RING

13655-14G10

1
Out of stock

16

BRACKET, SENSOR

13652-28H00

1
Out of stock

17

.SCREW

02112-0516A

2
Out of stock
