2017 Suzuki RM-Z450L7 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2017 Suzuki RM-Z450L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

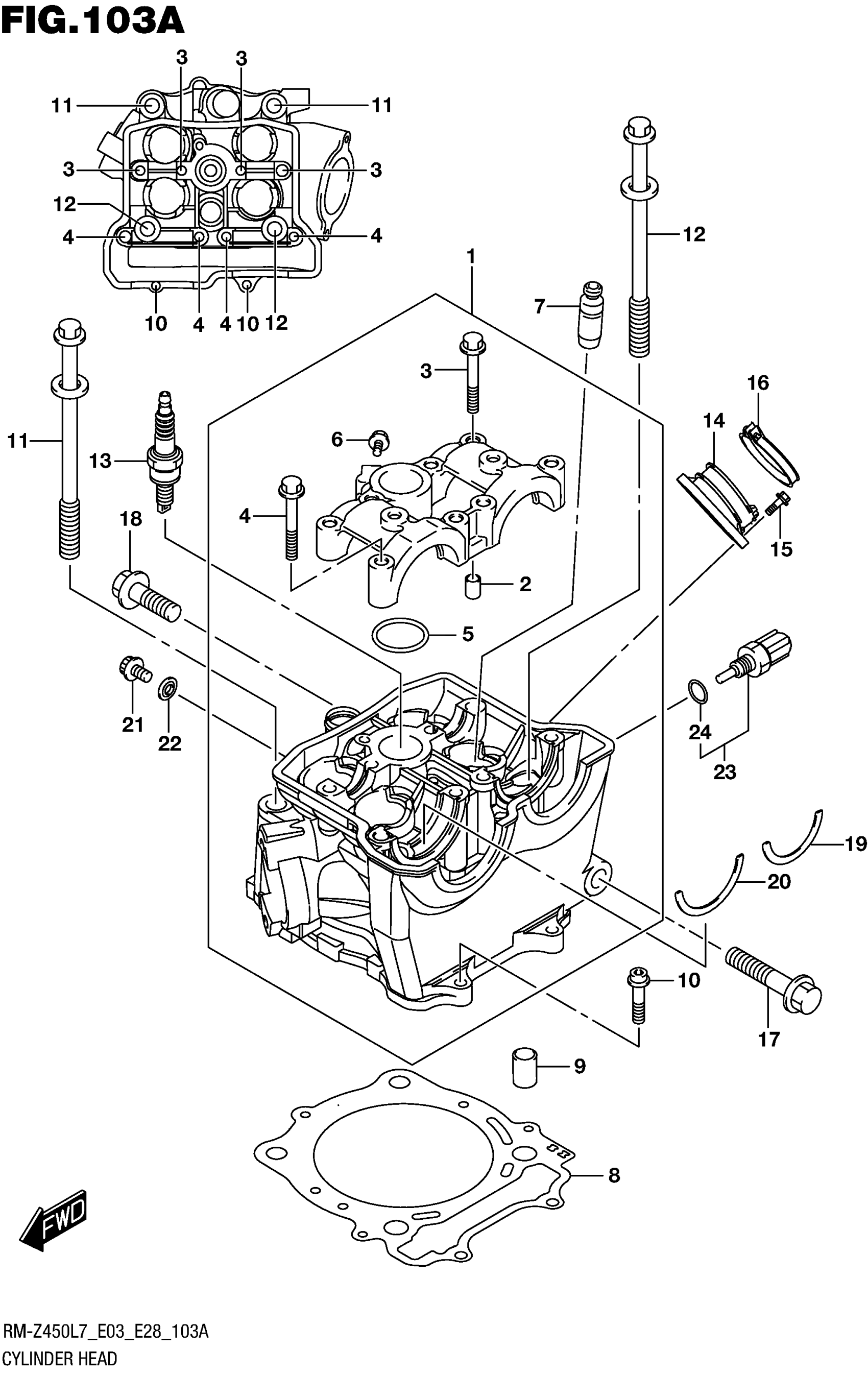

2017 Suzuki RM-Z450L7 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER

11100-28H12

1
Out of stock

2

.PIN (8X11)

09206-08001

2
Out of stock

3

.BOLT (6X40)

09103-06266

4
Out of stock

4

.BOLT (6X45)

09103-06293

4
Out of stock

5

.O RING (D:2.4,ID:25.7)

09280-26007

1
Out of stock

6

.BOLT (6X10)

09103-06188

1
Out of stock

7

GUIDE,VALVE (OS:0.3) | OPT

11115-45G70

4
Out of stock

8

.GASKET,CYLINDER HEAD

11141-28H00

1
Out of stock

9

PIN

04211-13189

2
Out of stock

10

BOLT

07120-0625A

2
Out of stock

11

BOLT,CYLINDER HEAD (L:140)

11117-28H00

2
Out of stock

12

BOLT,CYLINDER HEAD (L:120)

11161-45G00

2
Out of stock

13

PLUG,SPARK (DIMR8C10) | NGK This part replaces 09482-00600.

09482-00660

1
Out of stock

14

PIPE ASSY,INTAK This part replaces 13101-28H00.

13101-28H01

1
Out of stock

15

BOLT

01547-0620A

2
Out of stock

16

CLAMP, INTAKE PIPE

13170-35G01

1
Out of stock

17

BOLT (10X43) | LH

09103-10116

1
Out of stock

18

BOLT (10X32) | RH

09103-10229

1
Out of stock

19

C-RING | INTAKE

12749-49H00

1
Out of stock

20

C-RING | EXHAUST

12749-49H10

1
Out of stock

21

.BOLT

07120-0610A

1
Out of stock

22

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

23

SENSOR, WATER TEMP

13650-14G00

1
Out of stock

24

.O RING

13655-14G00

1
Out of stock
