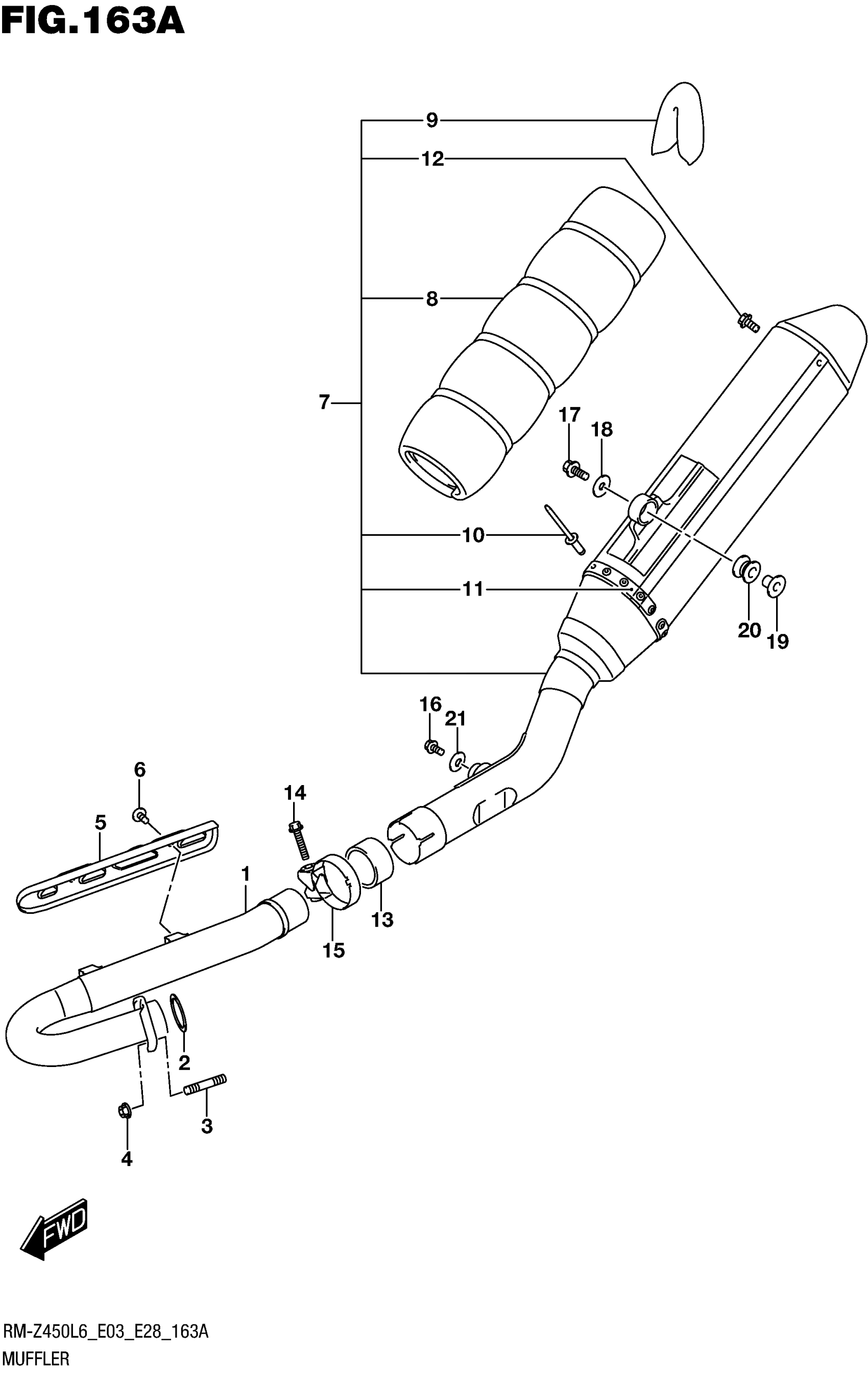

Suzuki RM-Z450L6 (2016) MUFFLER Diagram

#

Description
Price

1

PIPE,EXHAUST

14150-28H60

$265.83

2

.GASKET,EXHAUST PIPE

14181-35G00

$8.91

3

STUD BOLT

01421-0820A

$1.99

4

NUT

08316-1008A

$2.56

5

COVER,EXHAUST PIPE

14186-28H20

$61.78

6

BOLT (6X8)

09139-06178

$5.13

7

BODY, MUFFLER

14310-28H80

$838.13

8

.SILENCER,MUF

14351-28H60

$347.15

9

.GLASS WOOL, MUFFLER TAIL

14355-49H00

$28.50

10

.RIVET, MUFFLER

14454-28H00

Unavailable

11

.BAND,MUFFLER

14781-28H10

Unavailable

12

.BOLT

01547-0612A

$2.09

13

CONNECTOR, MUFFLER

14771-42F10

$22.13

14

BOLT

09103-08536

$2.92

15

CLAMP, CONNECTOR

14459-28H00

$41.53

16

BOLT (8X20)

09103-08426

$5.87

17

BOLT

09103-08536

$2.92

18

WASHER (8.5X26X1.6)

09160-08151

$2.07

19

SPACER (8.6X12X18.5)

09180-08157

$7.75

20

CUSHION

09320-12043

$7.42

21

WASHER (8X20X1)

09160-08103

$1.34
