2016 Suzuki RM-Z450L6 Front Master Cylinder Diagram

← All diagrams

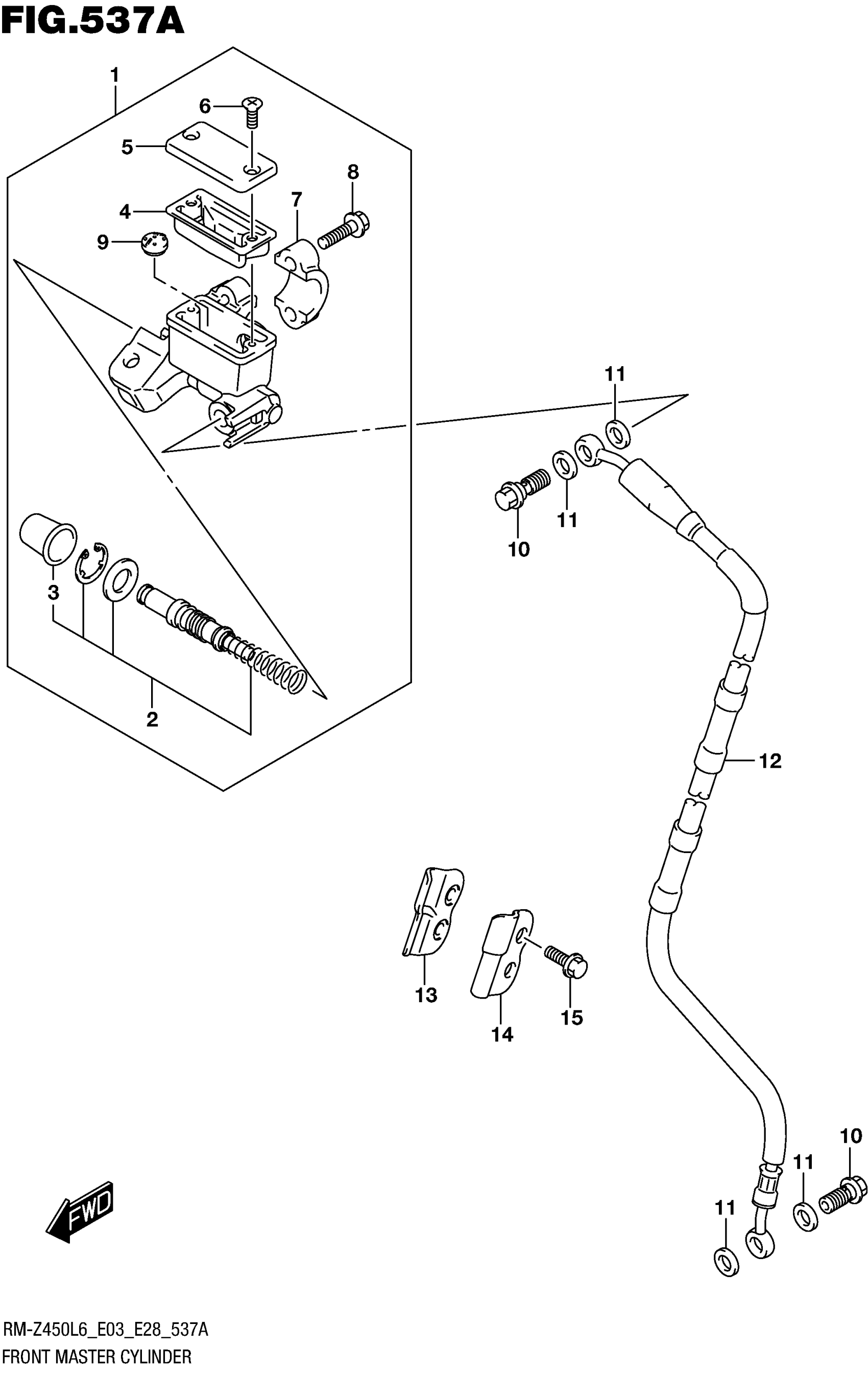

Find the part on the Front Master Cylinder diagram for your 2016 Suzuki RM-Z450L6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki RM-Z450L6 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, FRONT MASTER This part replaces 59600-37F00.

59600-37F10

1
Out of stock

2

.PISTON & CUP SET

59600-37810

1
Out of stock

3

..BOOT

59666-44300

1
Out of stock

4

.DIAPHRAGM

59667-14500

1
Out of stock

5

.CAP

59669-27C01

1
Out of stock

6

.SCREW

69689-49300

2
Out of stock

7

.HOLDER, MASTER CYLINDER

59671-27C00

1
Out of stock

8

.BOLT

59675-06F00

2
Out of stock

9

.SEPARATOR

59748-36E00

1
Out of stock

10

UNION

09360-10065

2
Out of stock

11

WASHER (10X15X1.5)

09161-10009

4
Out of stock

12

HOSE,FR BRAKE This part replaces 59480-28H00.

59480-28H01

1
Out of stock

13

CLAMP, FRONT BRAKE HOSE INNER

59260-28H20

1
Out of stock

14

CLAMP,FR BRAKE HOSE

59271-28H10

1
Out of stock

15

BOLT

01547-0616A

2
Out of stock
