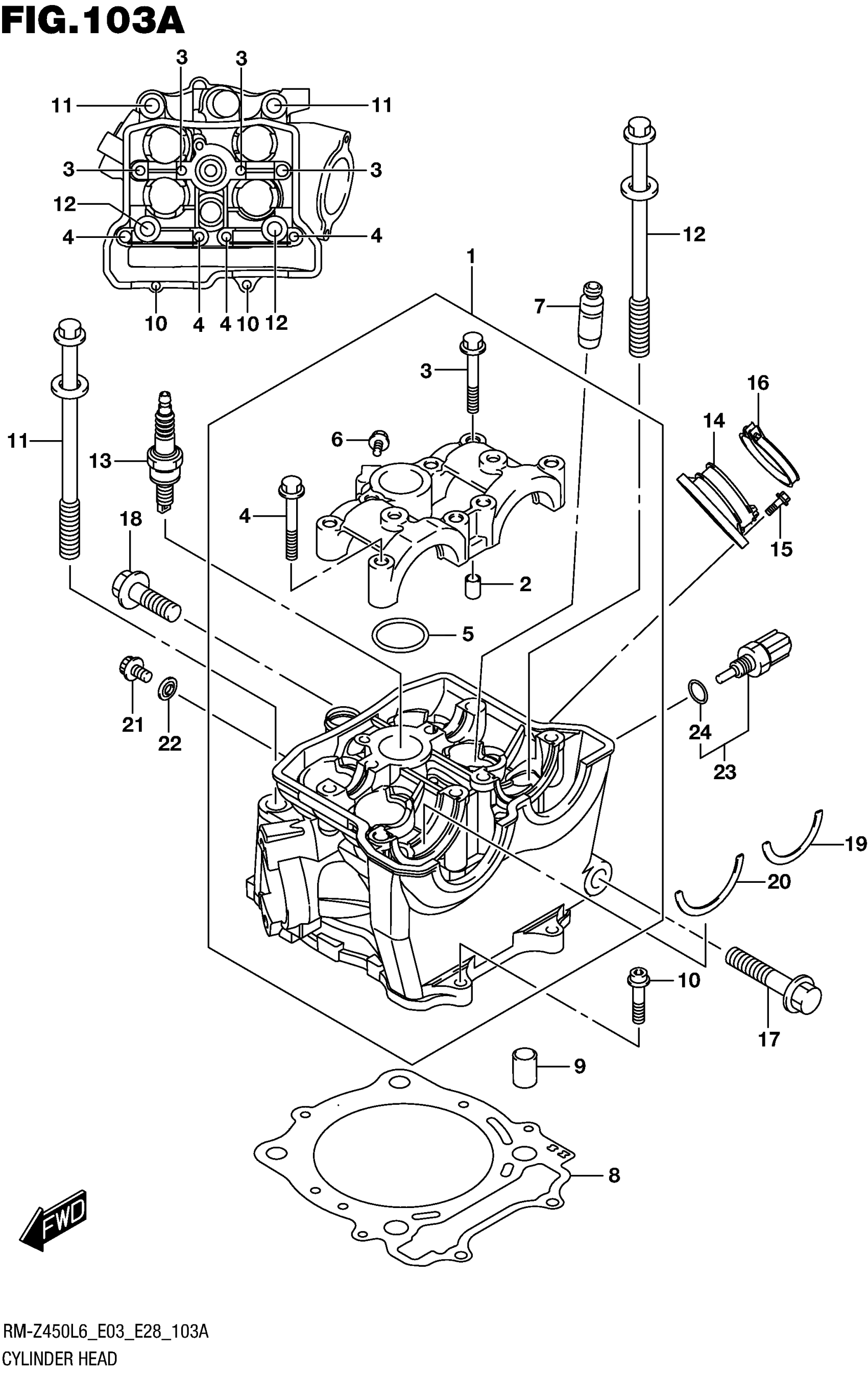

Suzuki RM-Z450L6 (2016) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-28H12

$843.62

2

.PIN (8X11)

09206-08001

$1.82

3

.BOLT (6X40)

09103-06266

$2.19

4

.BOLT (6X45)

09103-06293

$2.64

5

.O RING (D:2.4,ID:25.7)

09280-26007

$6.15

6

.BOLT (6X10)

09103-06188

$3.17

7

GUIDE,VALVE (OS:0.3) | OPT

11115-45G70

$42.82

8

.GASKET,CYLINDER HEAD

11141-28H00

$31.57

9

PIN

04211-13189

$2.25

10

BOLT

07120-0625A

$2.57

11

BOLT,CYLINDER HEAD (L:140)

11117-28H00

$15.78

12

BOLT,CYLINDER HEAD (L:120)

11161-45G00

$8.91

13

PLUG,SPARK (DIMR8C10) | NGK This part replaces 09482-00600.

09482-00660

$30.23

14

PIPE ASSY,INTAK This part replaces 13101-28H00.

13101-28H01

$91.67

15

BOLT

01547-0620A

$2.10

16

CLAMP, INTAKE PIPE

13170-35G01

$17.63

17

BOLT (10X43) | LH

09103-10116

$7.68

18

BOLT (10X32) | RH

09103-10229

$6.15

19

C-RING

12749-49H00

$4.83

20

C-RING

12749-49H10

$5.47

21

.BOLT

07120-0610A

$2.58

22

GASKET (5.8X13X1.2)

09168-06023

$2.09

23

SENSOR, WATER TEMP

13650-14G00

$51.19

24

.O RING

13655-14G00

$10.48
