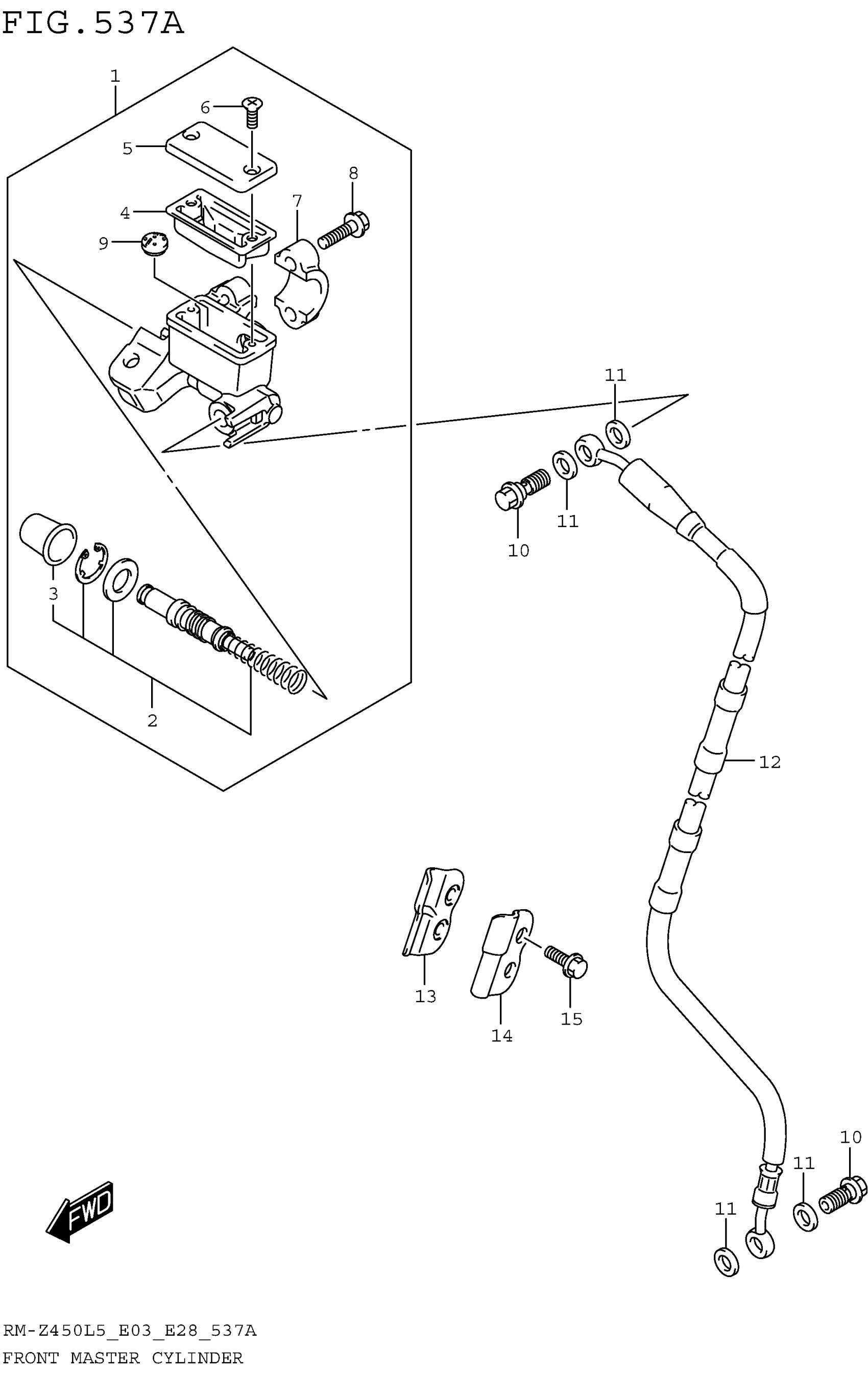

Suzuki RM-Z450L5 (2015) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER This part replaces 59600-37F00.

59600-37F10

$252.18

2

PISTON & CUP SET

59600-37810

$66.23

3

BOOT

59666-44300

$5.30

4

DIAPHRAGM

59667-14500

$9.53

5

CAP

59669-27C01

$26.32

6

SCREW

69689-49300

$1.81

7

HOLDER, MASTER CYLINDER

59671-27C00

$19.22

8

BOLT

59675-06F00

$5.33

9

SEPARATOR

59748-36E00

$10.58

10

UNION

09360-10065

$9.70

11

WASHER (10X15X1.5)

09161-10009

$1.83

12

HOSE,FR BRAKE This part replaces 59480-28H00.

59480-28H01

$224.40

13

CLAMP, FRONT BRAKE HOSE INNER

59260-28H20

$17.75

14

CLAMP,FR BRAKE HOSE

59271-28H10

$8.01

15

BOLT

01547-0616A

$2.01
