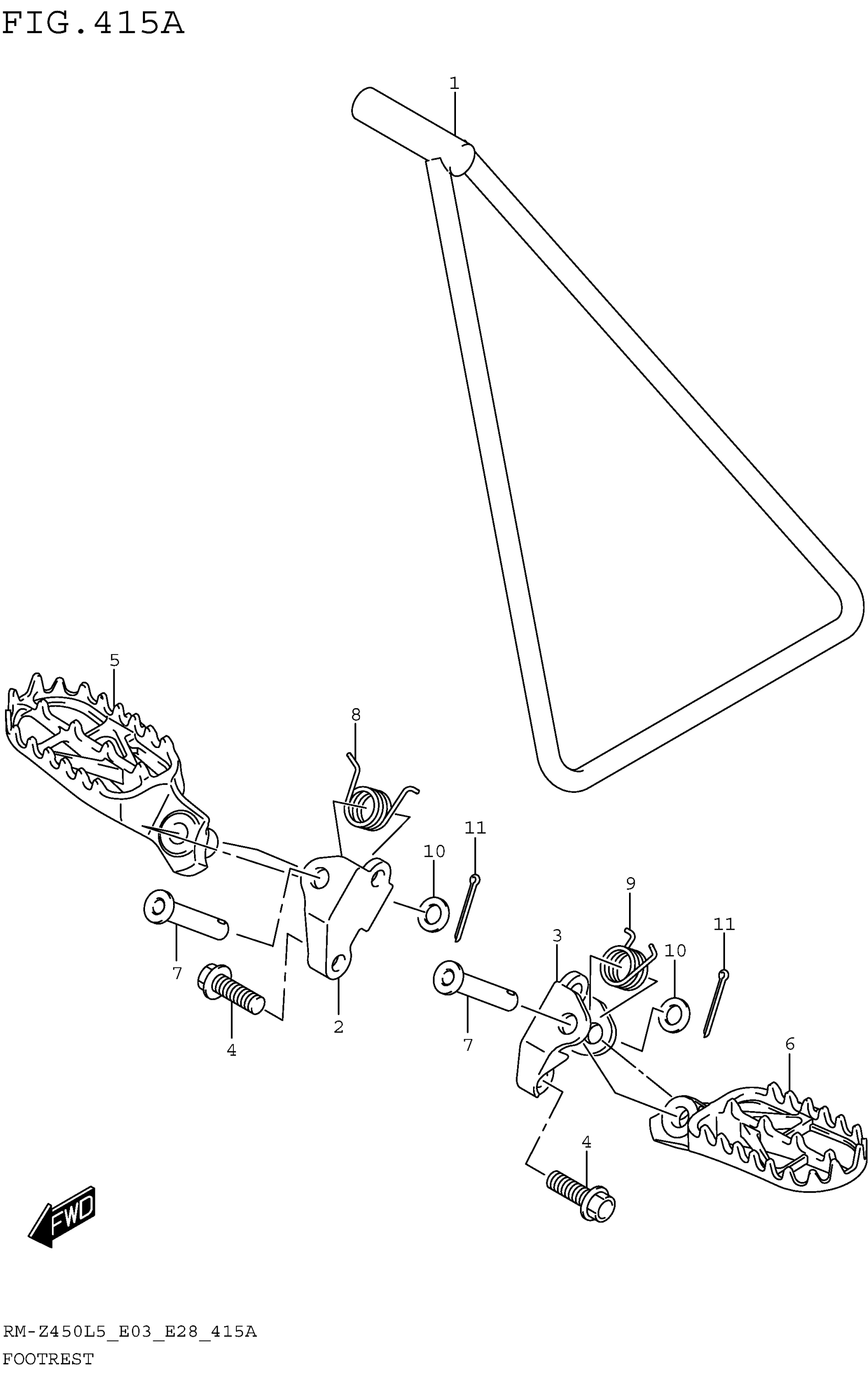

Suzuki RM-Z450L5 (2015) FOOTREST Diagram

#

Description
Price

1

STAND

42310-28H10

$164.18

2

BRACKET, FOOTREST RH

41855-28H10

$170.68

3

BRACKET, FOOTREST LH

41865-28H10

$164.42

4

BOLT (10X25)

09103-10415

$4.92

5

FOOTREST, RH

43551-28H30

$96.18

6

FOOTREST, LH

43561-28H10

$96.20

7

PIN (10X41.5)

09200-10019

$6.16

8

SPRING,FOOTREST,R

43581-28H10

$6.90

9

SPRING,FOOTREST,L

43591-28H10

$6.90

10

WASHER (10.5X18X1)

09160-10121

$2.06

11

COTTER PIN

04111-2520A

$1.22
