2014 Suzuki RM-Z450L4 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2014 Suzuki RM-Z450L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

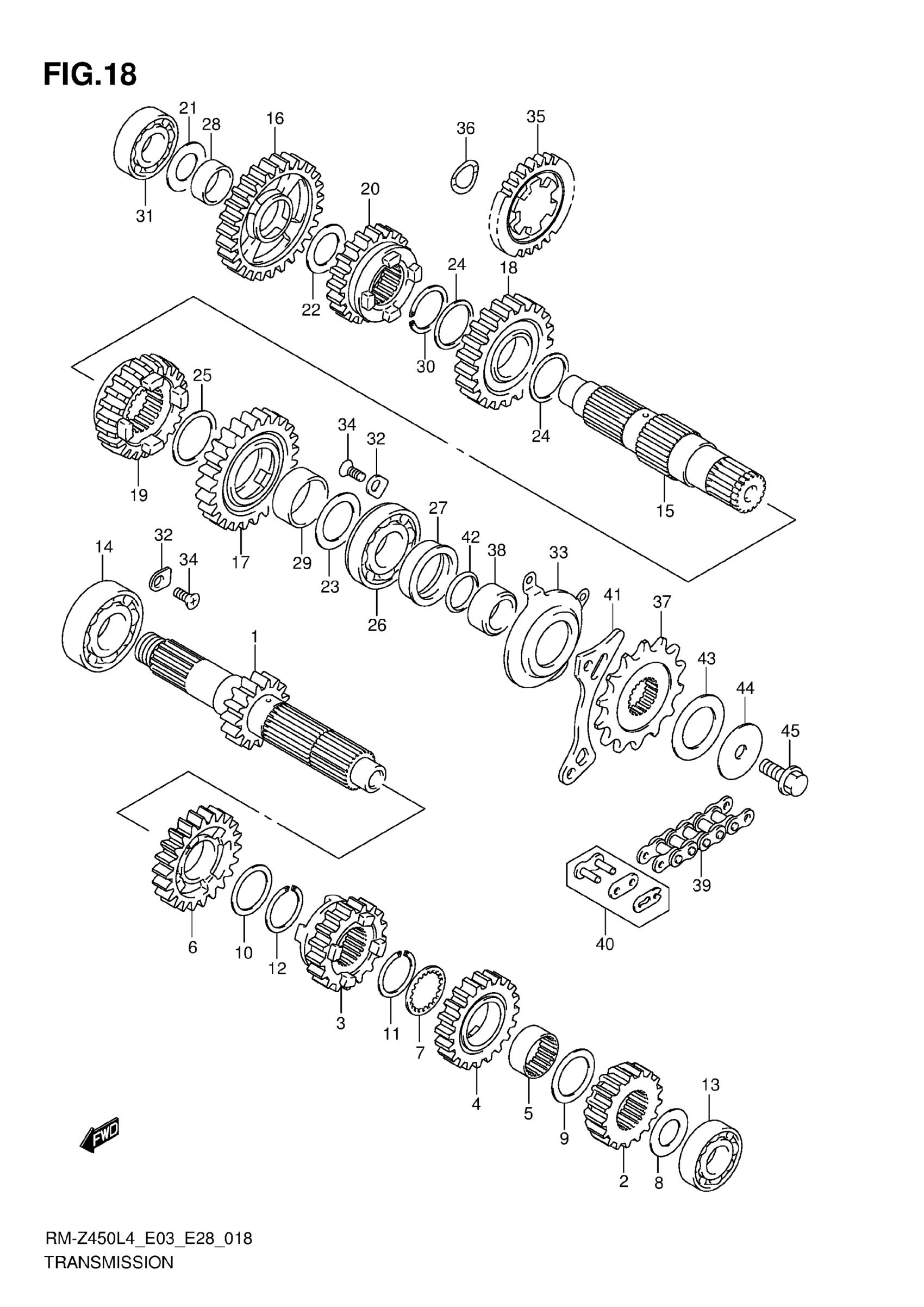

2014 Suzuki RM-Z450L4 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT,COUNTER This part replaces 24120-28H10.

24120-28H11

1
Out of stock

2

GEAR, 2ND DRIVE (NT:17)

24221-28H10

1
Out of stock

3

GEAR, 3RD DRIVE (NT:17) This part replaces 24231-28H10.

24231-28H20

1
Out of stock

4

GEAR, 4TH DRIVE (NT:20)

24241-28H10

1
Out of stock

5

BUSH,4TH DRIVE GEAR

24242-28H00

1
Out of stock

6

GEAR, 5TH DRIVE (NT:22)

24251-28H00

1
Out of stock

7

LOCK WASHER

09167-25026

1
Out of stock

8

SHIM (17X30X1)

09181-17223

1
Out of stock

9

WASHER, 5TH DRIVE This part replaces 09181-25059.

09181-25167

1
Out of stock

10

SHIM (25X32X1)

09181-25139

1
Out of stock

11

CIRCLIP

09380-25010

1
Out of stock

12

CIRCLIP

09380-25010

1
Out of stock

13

1

$27.67

In stock

14

BEARING (25X52X15) | RH

08143-62057

1
Out of stock

15

SHAFT, DRIVE

24131-28H10

1
Out of stock

16

GEAR, 1ST DRIVEN (NT:27)

24311-28H00

1
Out of stock

17

GEAR, 2ND DRIVEN (NT:25)

24321-28H00

1
Out of stock

18

GEAR, 3RD DRIVEN (NT:21)

24331-28H10

1
Out of stock

19

GEAR,4TH DRIVEN (NT:21) This part replaces 24341-28H10.

24341-28H20

1
Out of stock

20

GEAR,5TH DRIVEN (NT:20) This part replaces 24351-28H20.

24351-28H30

1
Out of stock

21

SHIM (17X30X1)

09181-17223

1
Out of stock

22

SHIM (20X30X1)

09181-20195

1
Out of stock

23

SHIM (24X34X1)

09181-24005

1
Out of stock

24

SHIM (25X30X1)

09181-25111

2
Out of stock

25

SHIM (27X33X1)

09181-27015

1
Out of stock

26

BEARING (24X56X14)

09262-24001

1
Out of stock

27

SEAL,OIL (31X40X8.5)

09289-31003

1
Out of stock

28

BUSH (20X24X10)

09300-20037

1
Out of stock

29

BUSH (27X31X13)

09300-27005

1
Out of stock

30

CIRCLIP

09380-25010

1
Out of stock

31

1

$27.67

In stock

32

RETAINER

24741-20A00

2
Out of stock

33

RETAINER,DRIVE SHAFT OIL SEAL

24751-28H00

1
Out of stock

34

SCREW (6X12)

09126-06011

2
Out of stock

35

GEAR, KICK STARTER IDLE (NT:23)

26260-35G00

1
Out of stock

36

WASHER, KICK IDLE

26264-28H00

1
Out of stock

37

SPROCKET, ENGINE (NT:13)

27511-28H00

1
Out of stock

38

SPACER,ENGINE SPROCKET

27531-35G01

1
Out of stock

39

CHAIN ASSY, DRIVE (DID520MXV4)

27600-35G01-114

1
Out of stock

40

JOINT SET, CHAIN | OPT

27620-35G01

1
Out of stock

41

PLATE, FRONT CHAIN GUIDE

27641-35G01

1
Out of stock

42

D RING, SPROCKET SPACER

27515-28H00

1
Out of stock

43

WASHER, ENGINE SPROCKET WAVE

27514-49H00

1
Out of stock

44

WASHER, ENGINE SPROCKET

27513-49H00

1
Out of stock

45

BOLT (8X30)

09103-08458

1
Out of stock
