2014 Suzuki RM-Z450L4 RH Front Fork Damper Diagram

← All diagrams

Find the part on the RH Front Fork Damper diagram for your 2014 Suzuki RM-Z450L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

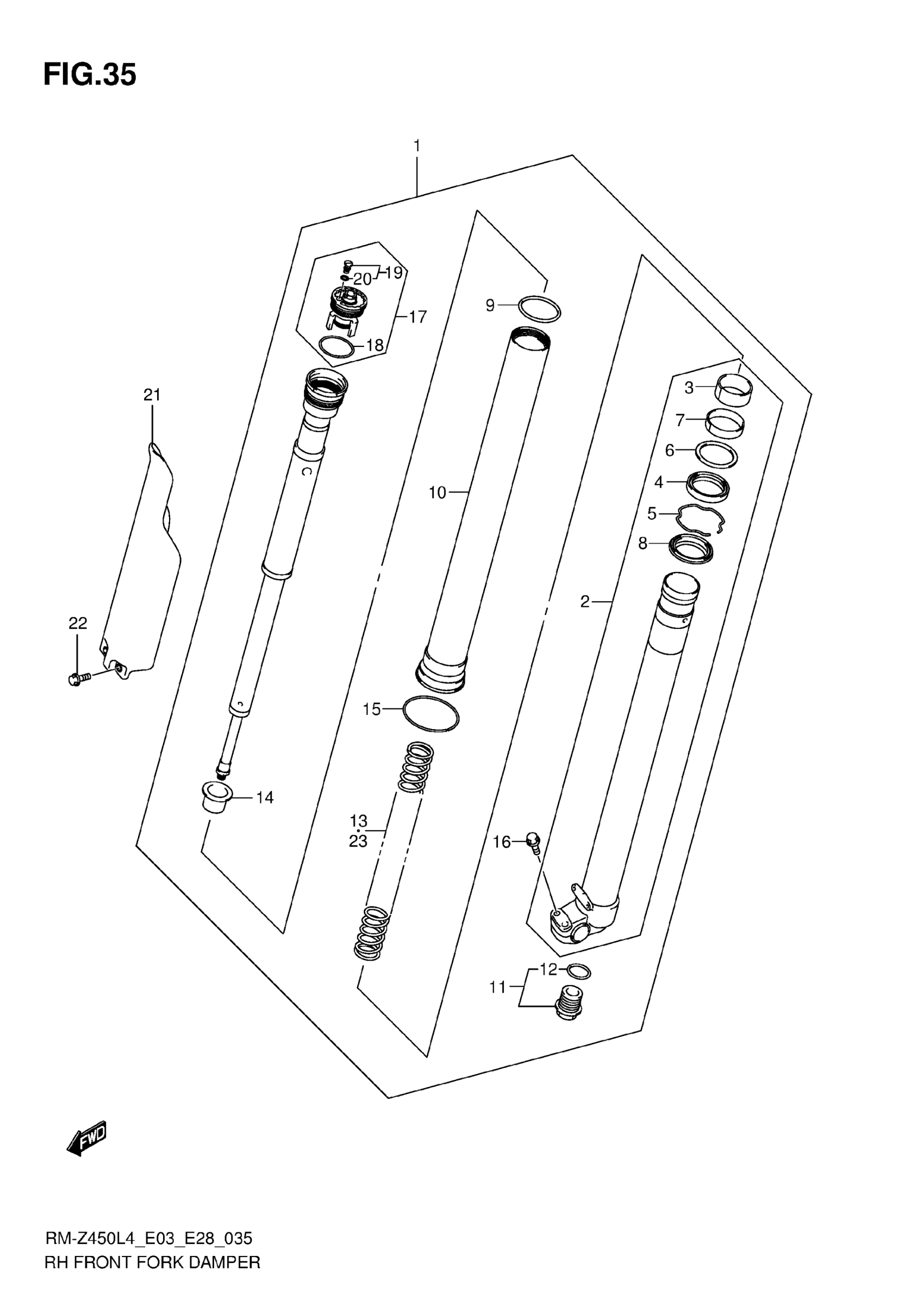

2014 Suzuki RM-Z450L4 RH Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-28H30

1
Out of stock

2

TUBE, INNER RH

51110-28H30

1

$482.85

In stock

3

BUSH, SLIDE

51121-28H30

1

$10.30

In stock

4

SEAL, OIL

51153-28H30

1

$21.57

In stock

5

1

$7.07

In stock

6

SPACER, SEAL

51158-28H30

1

$3.59

In stock

7

BUSH, GUIDE

51167-28H30

1

$11.28

In stock

8

SEAL, DUST

51173-28H30

1

$11.87

In stock

9

..O-RING

51118-28H30

1

$5.48

In stock

10

TUBE, OUTER

51130-28H30

1
Out of stock

11

BOLT, CENTER

51140-28H30

1

$134.08

In stock

12

O RING

62131-27C40

1

$5.43

In stock

13

SPRING, FRONT

51171-28H60

1
Out of stock

14

GUIDE SPRING

51182-28H30

—
Out of stock

15

STOPPER RING

51211-37FC0

1

$11.50

In stock

16

BOLT

51328-37F80

2

$7.23

In stock

17

BOLT, ADJUSTER

51360-28H30

1
Out of stock

18

..O-RING,FORK BOLT

51187-01H00

1

$6.77

In stock

19

..BOLT,PLUG

51357-36F20

1
Out of stock

20

...O-RING

51358-28E30

1
Out of stock

21

PROTECTOR, RH

51501-28H21

1
Out of stock

22

BOLT (6X10)

09111-06098

2

$3.30

In stock

23

SPRING, FRONT (SOFT) | OPT

51171-28H50

1
Out of stock

23

SPRING, FRONT (HARD) | OPT

51171-28H70

1
Out of stock
