2013 Suzuki RM-Z450L3 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2013 Suzuki RM-Z450L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

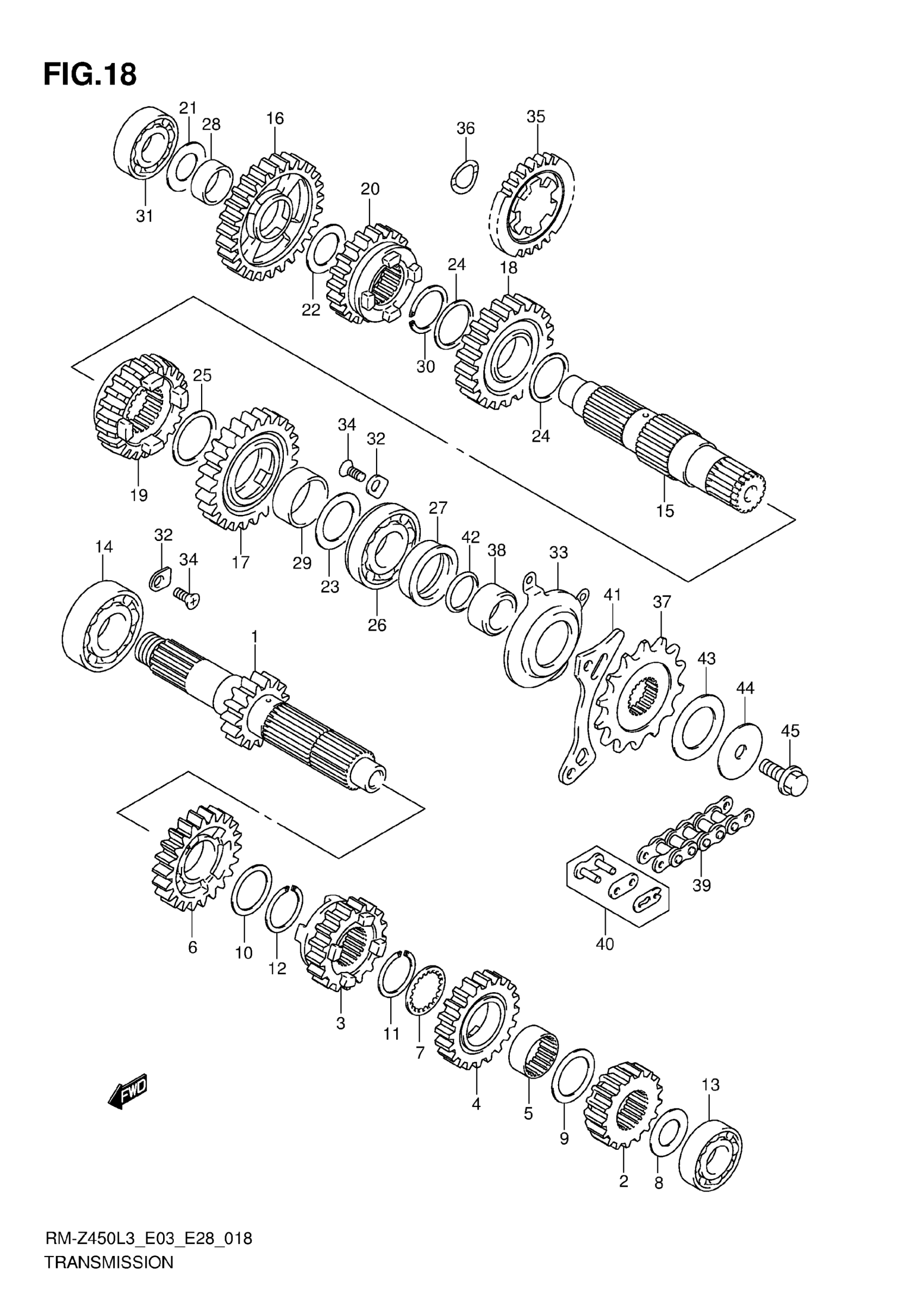

2013 Suzuki RM-Z450L3 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$248.20

In stock

2

1

$128.70

In stock

4

1

$132.38

In stock

5

BUSH,4TH DRIVE GEAR

24242-28H00

1

$35.55

In stock

6

1

$127.13

In stock

7

LOCK WASHER

09167-25026

1

$4.03

In stock

8

SHIM (17X30X1)

09181-17223

1

$2.93

In stock

9

WASHER, 5TH DRIVE This part replaces 09181-25059.

09181-25167

1
Out of stock

10

SHIM (25X32X1)

09181-25139

1
Out of stock

11

CIRCLIP

09380-25010

1

$2.92

In stock

12

CIRCLIP

09380-25010

1

$2.92

In stock

13

1

$27.67

In stock

14

1

$23.75

In stock

15

SHAFT, DRIVE

24131-28H10

1
Out of stock

16

1

$137.02

In stock

17

1

$137.02

In stock

18

1

$132.38

In stock

21

SHIM (17X30X1)

09181-17223

1

$2.93

In stock

22

SHIM (20X30X1)

09181-20195

1
Out of stock

23

SHIM (24X34X1)

09181-24005

1

$3.46

In stock

24

SHIM (25X30X1)

09181-25111

2

$4.45

In stock

25

SHIM (27X33X1)

09181-27015

1

$5.00

In stock

26

BEARING (24X56X14)

09262-24001

1

$98.02

In stock

27

SEAL,OIL (31X40X8.5)

09289-31003

1

$13.30

In stock

28

BUSH (20X24X10)

09300-20037

1

$19.47

In stock

29

BUSH (27X31X13)

09300-27005

1
Out of stock

30

CIRCLIP

09380-25010

1

$2.92

In stock

31

1

$27.67

In stock

32

RETAINER

24741-20A00

2

$2.92

In stock

33

1

$18.16

In stock

34

SCREW (6X12)

09126-06011

2
Out of stock

35

1

$180.33

In stock

36

WASHER, KICK IDLE

26264-28H00

1

$7.98

In stock

37

1

$34.97

In stock

38

1

$32.25

In stock

39

1

$362.27

In stock

40

1

$24.12

In stock

41

1

$11.92

In stock

42

1

$6.67

In stock

43

1

$7.57

In stock

44

1

$17.15

In stock

45

BOLT (8X30)

09103-08458

1

$5.50

In stock
