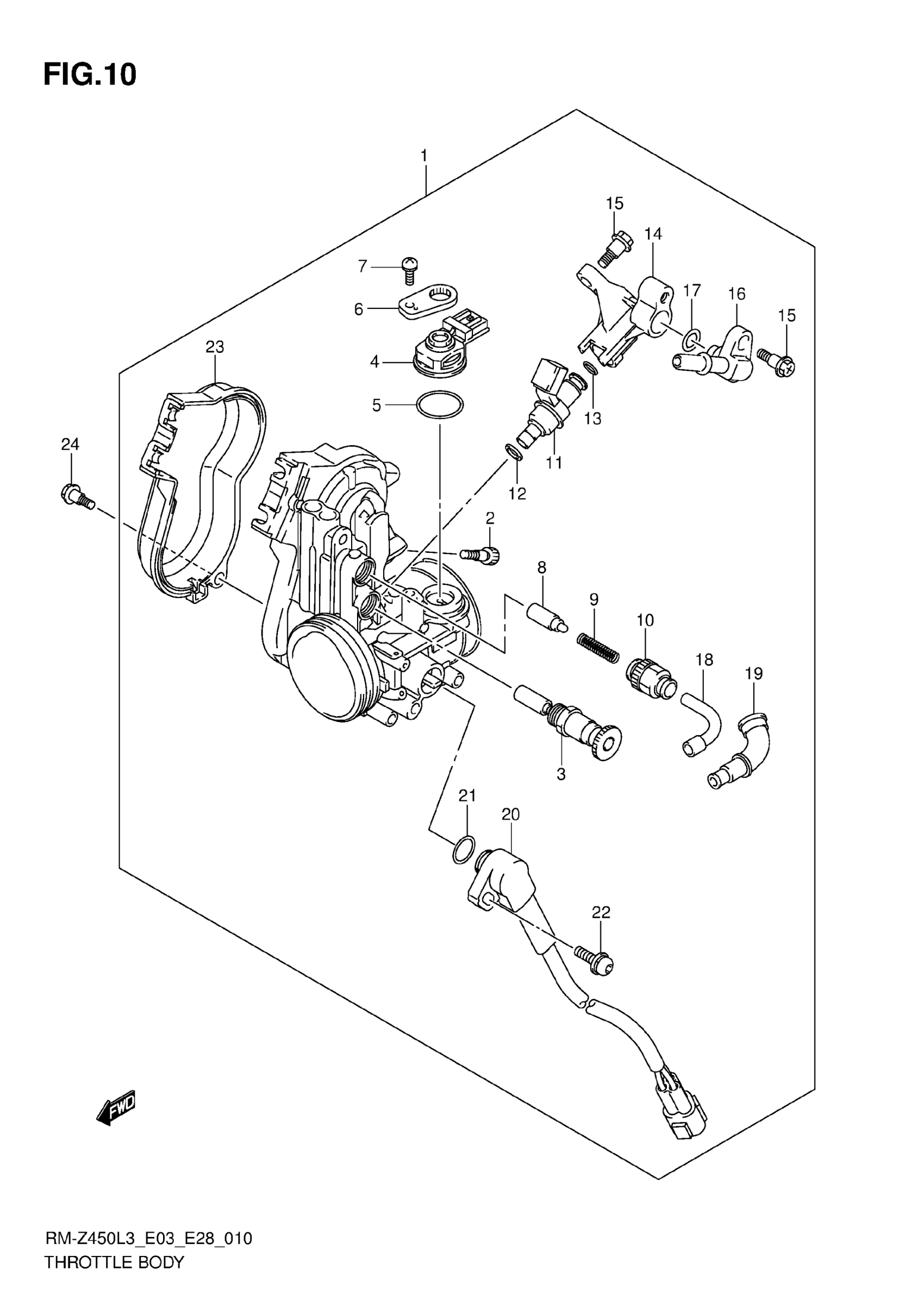

Suzuki RM-Z450L3 (2013) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY, THROTTLE

13041-28H40

Unavailable

2

SCREW, STOP

13296-28H00

Unavailable

3

STARTER VALVE

13410-28H10

$97.40

4

SENSOR, MAP

15620-05H00

$304.30

5

.O RING This part replaces 15621-05H00.

15621-05H01

$10.22

6

PLATE, STAY

13565-28H10

$26.37

7

SCREW

13601-15F20

Unavailable

8

STARTER VALVE

13411-28H00

$47.05

9

SPRING

13271-45G00

$5.81

10

HOLDER, CABLE

13581-45G00

$3.41

11

INJECTOR ASSY

15710-02J00

$357.70

12

.RING,SEAL

15722-21H00

$10.30

13

.O-RING

15721-21H00

$8.31

14

PIPE, FUEL

13471-28H00

$69.02

15

SCREW

13452-28H10

$7.62

16

JOINT

13685-28H00

$46.07

17

.O-RING

15721-24F00

$8.31

18

GUIDE, CABLE

13579-28H00

$14.88

19

CAP

13681-45G00

$6.40

20

SENSOR ASSY, THROTTLE

13580-28H11

$293.80

21

O RING

13575-40F00

$3.85

22

SCREW

13605-40F00

$3.50

23

COVER

13484-28H00

Unavailable

24

SCREW

13601-28H00

$4.28
