2013 Suzuki RM-Z450L3 Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 2013 Suzuki RM-Z450L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

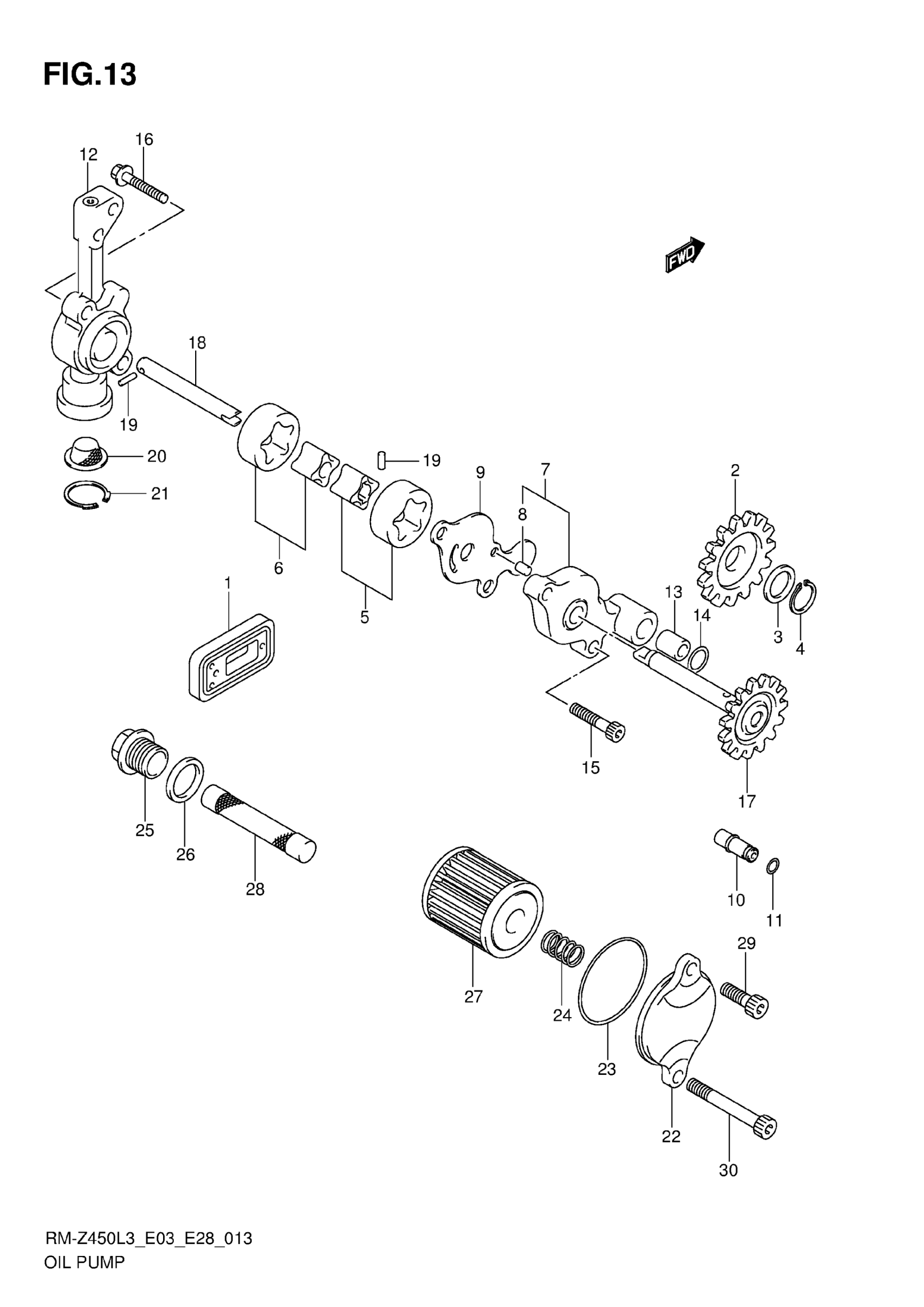

2013 Suzuki RM-Z450L3 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE ASSY, OIL REED

13150-28H10

1

$46.95

In stock

2

1

$75.98

In stock

3

SHIM (12X18X0.5)

09181-12130

1

$2.23

In stock

4

CIRCLIP

08331-3112A

1
Out of stock

5

1

$49.72

In stock

6

ROTOR SET,OIL PUMP

16410-45G00

1

$40.72

In stock

7

COVER,OIL PUMP NO.1

16430-28H00

1

$49.73

In stock

8

PIN (4X13.8)

04221-04089

1
Out of stock

9

PLATE,OIL PUMP NO.1

16432-35G10

1

$8.73

In stock

10

1

$83.62

In stock

11

O RING (D:1.2,ID:4.7)

09280-05007

1
Out of stock

12

COVER,OIL PUMP NO.2

16450-28H10

1

$80.73

In stock

13

PIN

04211-09149

1
Out of stock

14

1

$3.58

In stock

15

BOLT

07130-0520B

2
Out of stock

16

BOLT (6X25)

09103-06250

1

$2.31

In stock

17

1

$86.12

In stock

18

SHAFT,OIL PUMP NO.2

16443-28H00

1

$21.88

In stock

19

PIN (2.5X11.8)

09261-02008

2

$1.77

In stock

20

1

$10.97

In stock

21

CIRCLIP

09381-19003

1

$2.43

In stock

22

1

$24.46

In stock

24

SPRING

09440-10038

1

$3.00

In stock

25

1

$26.77

In stock

26

GASKET (16X22X2)

09168-16002

1
Out of stock

27

FILTER, ENGINE OIL

16510-35G00

1

$9.67

In stock

28

STRAINER, ENGINE OIL

16520-10H10

1

$47.05

In stock

29

BOLT

01547-0616A

1
Out of stock

30

BOLT

01547-0640A

1
Out of stock
