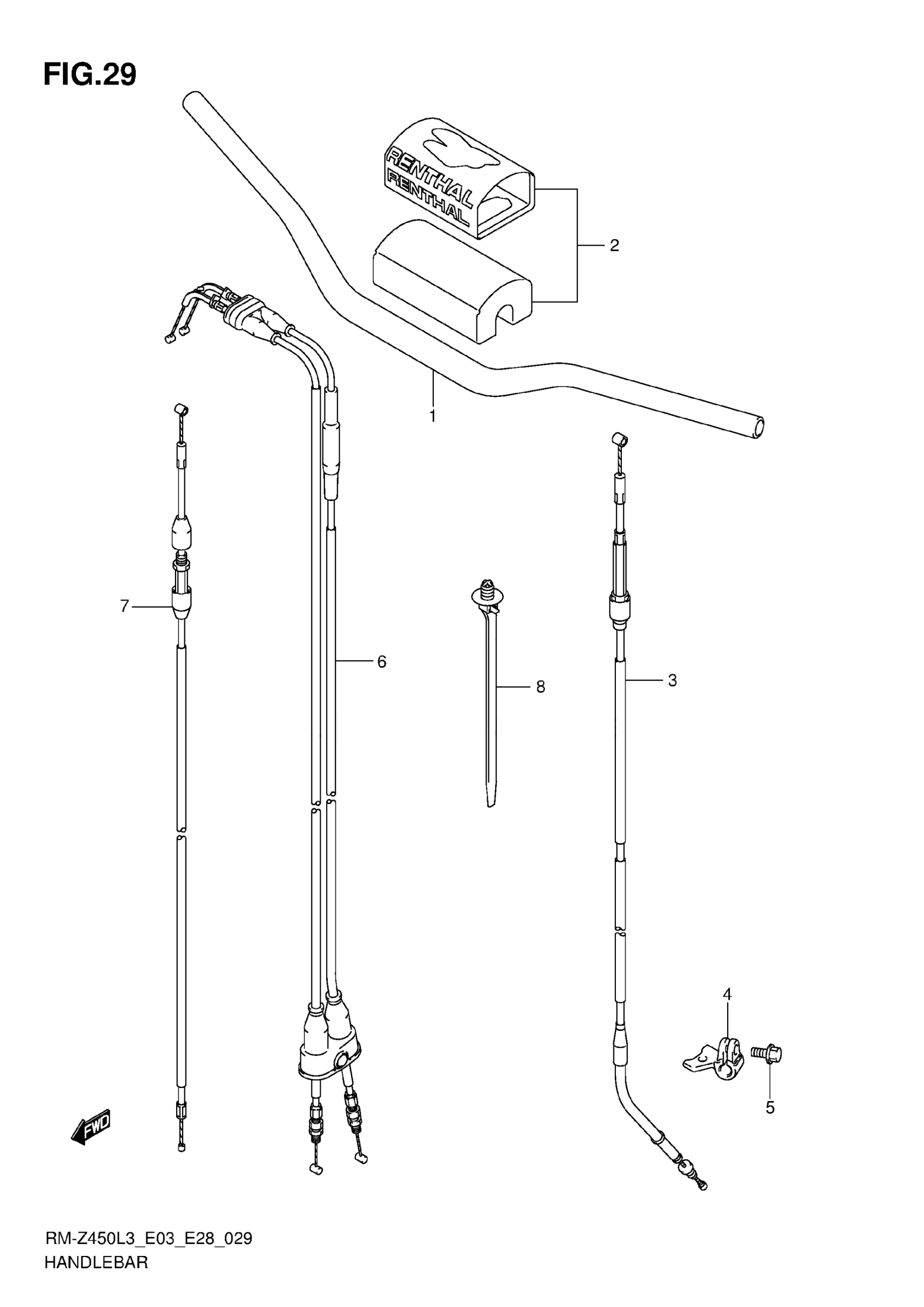

Suzuki RM-Z450L3 (2013) HANDLEBAR Diagram

#

Description

Price

1

HANDLEBAR This part replaces 56111-35G10.

56111-35G11

$275.10

2

PAD SET, HANDLEBAR

56170-35G20

Unavailable

3

CABLE ASSY,CLUT This part replaces 58210-28H00.

58210-28H01

$45.62

4

BRACKET,CLUTCH CABLE

58212-28H00

$116.62

5

BOLT

01547-0612A

$2.09

6

CABLE SET,THROT This part replaces 58301-28H30.

58301-28H31

$75.55

7

CABLE ASSY,HOT This part replaces 58900-28H10.

58900-28H11

$48.78

8

CLAMP (L:154)

09407-17403

$4.79
