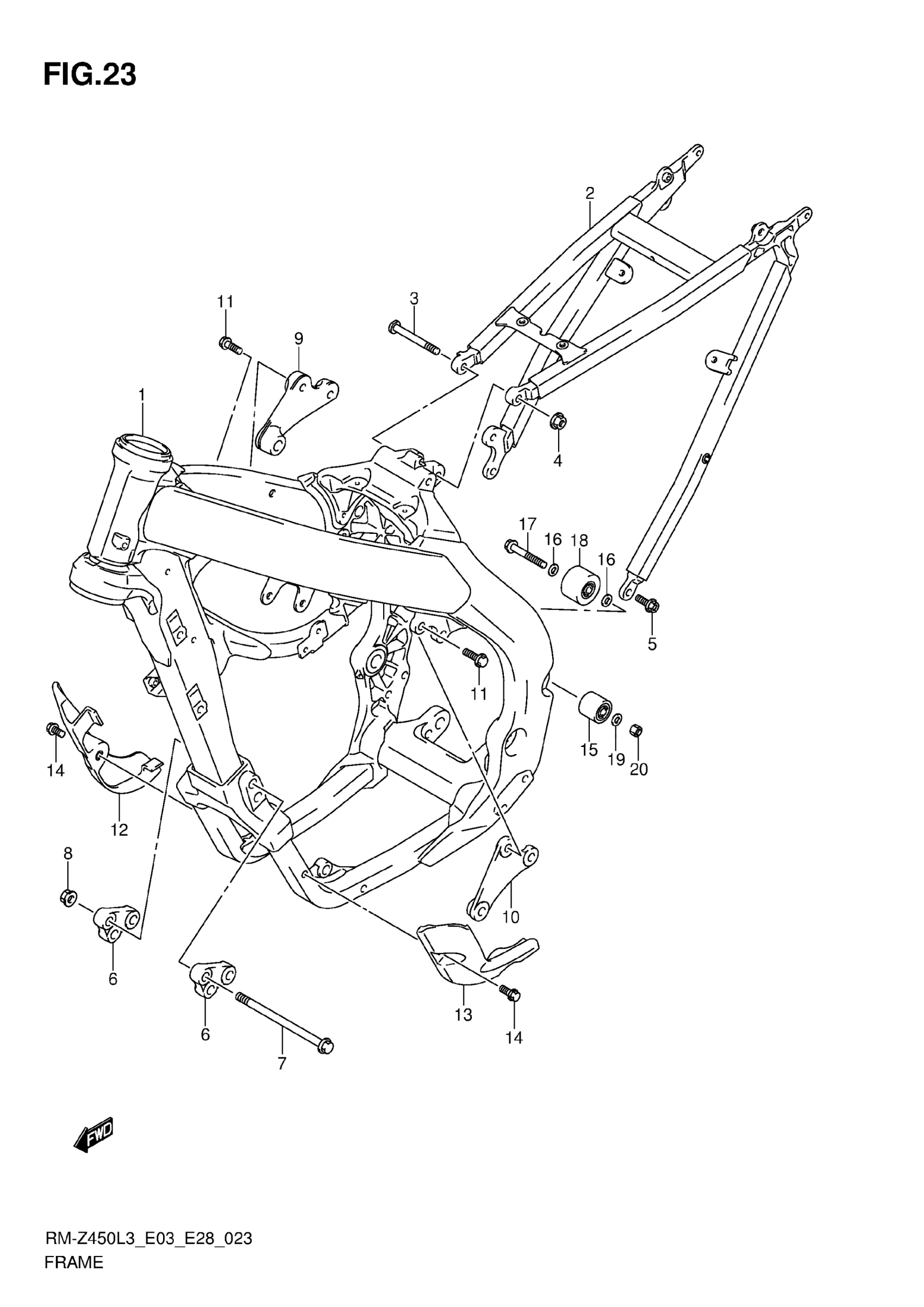

Suzuki RM-Z450L3 (2013) FRAME Diagram

#

Description
Price

1

FRAME

41100-28H30

$3,386.13

2

RAIL, SEAT

41200-28H40

Unavailable

3

BOLT, SEAT RAIL UPPER

41311-28H20

$21.57

4

NUT

09159-08146

$8.07

5

BOLT (8X23)

09103-08506

$6.28

6

BRACKET, ENGINE MOUNT FRONT

41991-28H10

$79.17

7

BOLT (10X135)

09103-10403

$17.21

8

NUT

09159-10122

$8.53

9

BRACKET, ENGINE MOUNT UPPER RH

41930-28H20

Unavailable

10

BRACKET, ENGINE MOUNT UPPER LH

41940-28H20

Unavailable

11

BOLT (8X21)

09103-08404

$4.03

12

PROTECTOR, FRONT RH

42520-28H01

$30.17

13

PROTECTOR, FRONT LH

42530-28H10

$37.73

14

BOLT (6X25)

09116-06177

$3.05

15

ROLLER, CHAIN LOWER

43910-35G00

$73.57

16

SHIM (8X16X1)

09181-08167

$1.98

17

BOLT (8X45)

09103-08207

$2.59

18

ROLLER, CHAIN

43910-27C11

$72.98

19

SHIM (8X12X1)

09181-08111

$1.95

20

NUT

08319-2108A

$2.13
