2012 Suzuki RM-Z450L2 Rear Shock Absorber Diagram

← All diagrams

Find the part on the Rear Shock Absorber diagram for your 2012 Suzuki RM-Z450L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

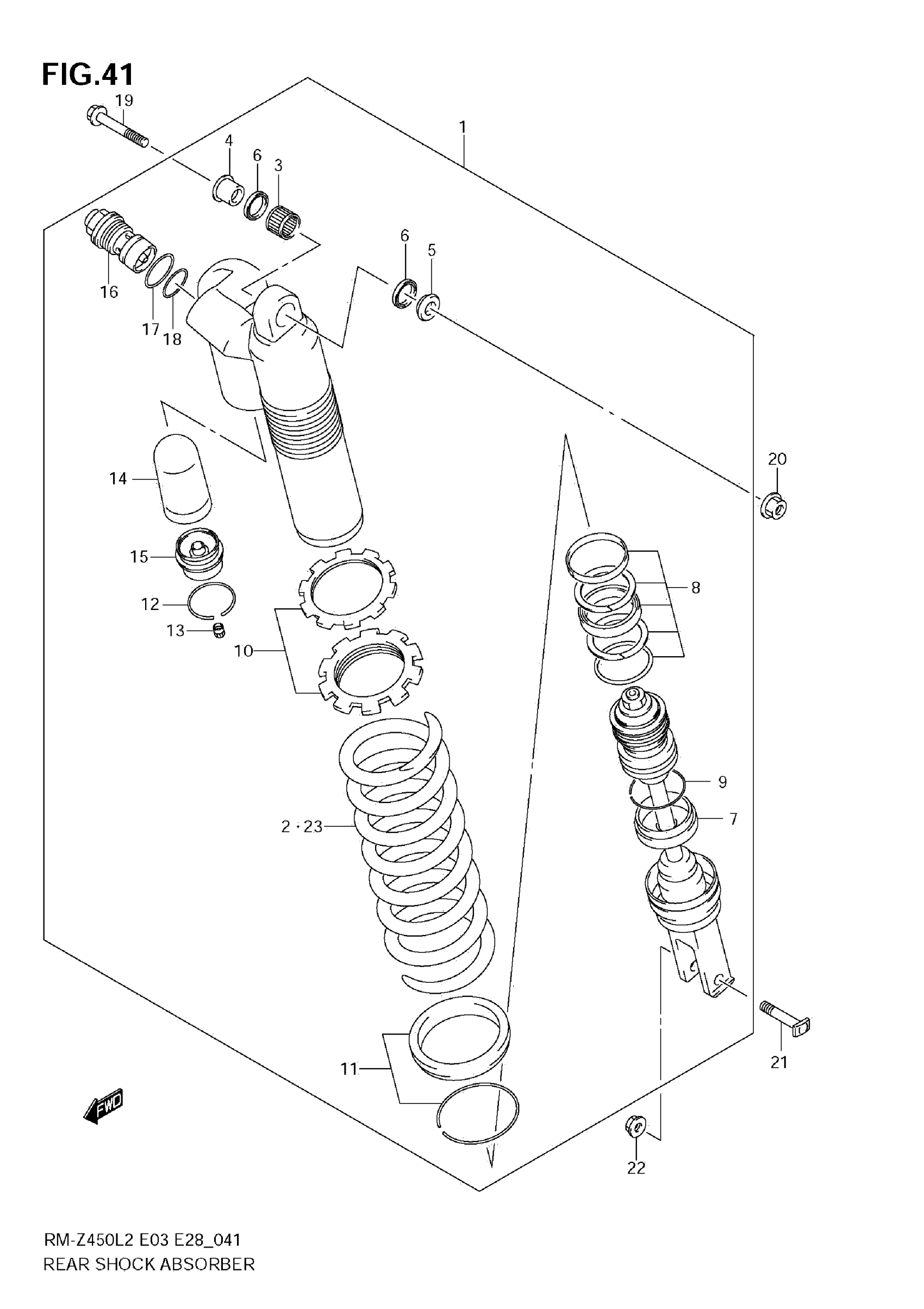

2012 Suzuki RM-Z450L2 Rear Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ABSORBER ASSY, RR SHOCK (RED)

62100-28H50-YKS

1
Out of stock

2

SPRING (K=5.8)

62211-28H00

1
Out of stock

3

BEARING (16X22X12)

09263-16033

1
Out of stock

4

.SPACER,UPPER BRG,R

62684-36F00

1
Out of stock

5

.SPACER,UPPER BRG,L

62685-36F00

1
Out of stock

6

OIL SEAL (16X22X2.5)

09284-16005

2
Out of stock

7

ROD, PISTON

62120-28H00

1
Out of stock

8

O RING SET

62150-28H30

1
Out of stock

9

RING, STOPPER

62279-36E80

1
Out of stock

10

ADJUSTER SET

62190-36F00

1
Out of stock

11

SPRING SEAT SET

62220-36F00

1
Out of stock

12

RING, STOPPER

62278-36E00

1
Out of stock

13

..CAP,AIR VALVE

52194-46686

1
Out of stock

14

BLADDER

62273-36F00

1
Out of stock

15

CAP, CHAMBER

62275-28H30

1
Out of stock

16

BOLT, PLUG

62130-28H30

1
Out of stock

17

O RING

62131-28E00

1
Out of stock

18

O RING

51174-36EB0

1
Out of stock

19

BOLT,RR SHOCK ABSORBER UPR

62311-28H00

1
Out of stock

20

NUT

09159-10122

1
Out of stock

21

BOLT,RR SHOCK ABSORBER LWR

62221-37F30

1
Out of stock

22

NUT

09159-10067

1
Out of stock

23

SPRING (SOFT K=5.2) | OPT

62211-10H10

1
Out of stock

23

SPRING (SOFT K=5.4) | OPT

62211-10H00

1
Out of stock

23

SPRING (SOFT K=5.6) | OPT

62211-37FM0

1
Out of stock

23

SPRING (HARD K=5.9) | OPT

62211-35G40

1
Out of stock

23

SPRING (HARD K=6.0) | OPT

62211-28H30

—
Out of stock
