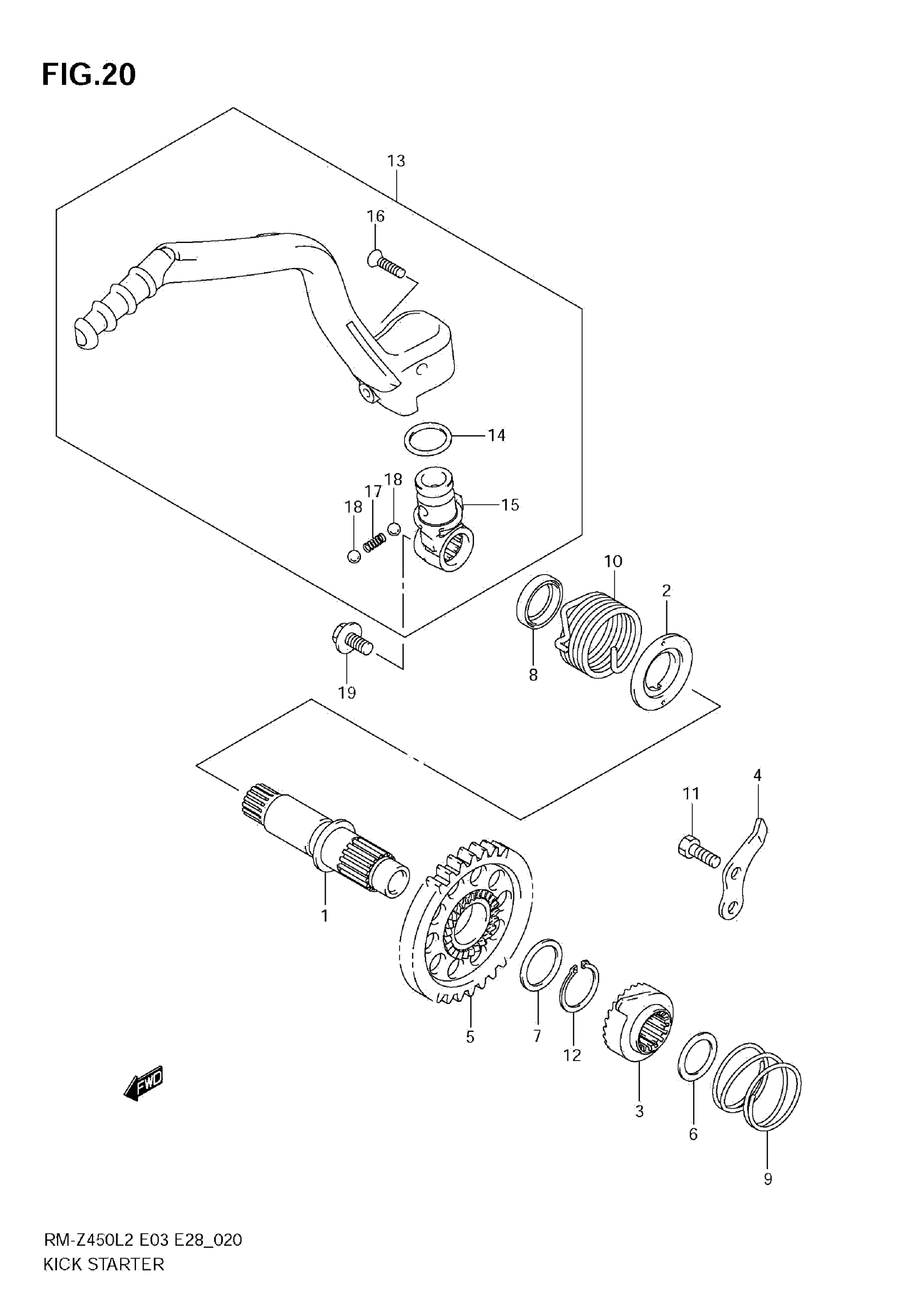

Suzuki RM-Z450L2 (2012) KICK STARTER Diagram

#

Description
Price

1

SHAFT,KICK STARTER

26211-28H00

$128.28

2

GUIDE,KICK STARTER SFT SPRING

26221-35G00

$5.52

3

STARTER,KICK

26231-28H00

$50.01

4

GUIDE,KICK STARTER

26232-28H00

$8.32

5

GEAR, KICK STARTER DRIVE

26240-35G00

$154.77

6

SHIM (17X24X0.5)

09181-17130

$2.80

7

SHIM (20X26X1)

09181-20139

$1.82

8

OIL SEAL (20X27X5)

09283-20031

$4.73

9

SPRING

09440-32002

$2.10

10

SPRING

09448-38007

$6.31

11

BOLT

01500-0612A

$1.80

12

CIRCLIP, KICK START DRIVE GEAR

08331-3120A

$2.01

13

LEVER ASSY,KICK This part replaces 26300-28H20.

26300-28H21

$194.48

14

.O-RING This part replaces 26313-28E20.

26313-28E21

$2.45

15

.JOINT,KICK STARTER LEVER

26331-28H20

$62.35

16

SCREW (6X27.5)

09127-06016

$2.80

17

SPRING

09440-05031

$1.45

18

BALL

06111-07004

$1.22

19

BOLT (8X14)

09103-08522

$3.77
