2012 Suzuki RM-Z450L2 Fuel Tank Diagram

← All diagrams

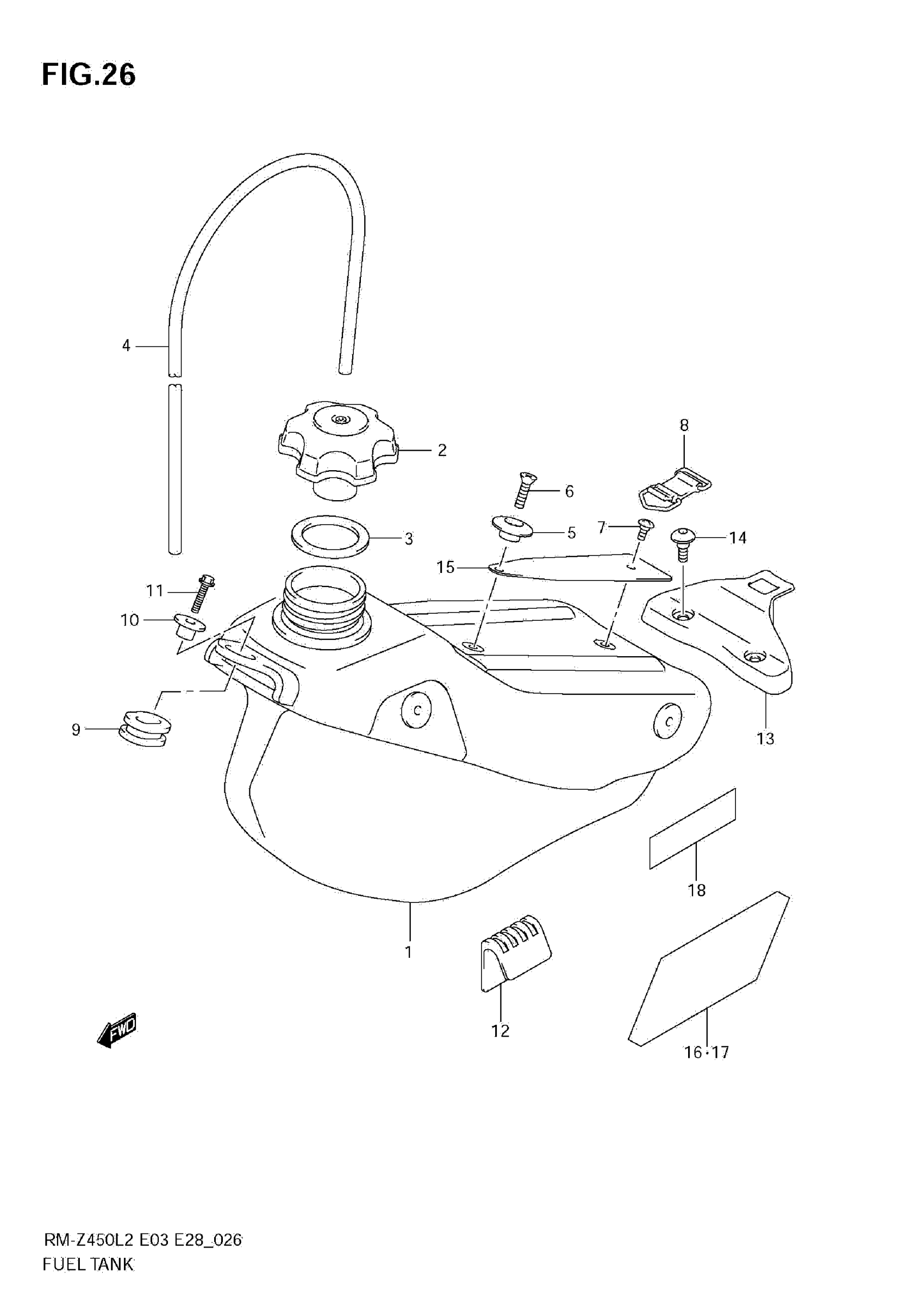

Find the part on the Fuel Tank diagram for your 2012 Suzuki RM-Z450L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki RM-Z450L2 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL

44110-28H10

1
Out of stock

2

CAP, FUEL TANK

44210-37F00

1
Out of stock

3

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

1
Out of stock

4

HOSE,5X10X600 | L:600->350 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

5

HOOK, SEAT FRONT

44132-37F10

1
Out of stock

6

SCREW

02122-0620B

1
Out of stock

7

SCREW (6X13.5)

09139-06134

1
Out of stock

8

BAND, FUEL TANK

44560-27C00

1
Out of stock

9

CUSHION,FUEL TA This part replaces 44541-28H00.

44541-28H01

1
Out of stock

10

SPACER

44134-35G02

1
Out of stock

11

BOLT (6X30)

09103-06213

1

$2.63

In stock

12

CUSHION,FUEL TA This part replaces 44543-49H00.

44543-49H01

2
Out of stock

13

CUSHION,FUEL TA This part replaces 44542-28H10.

44542-28H11

1
Out of stock

14

BOLT (5X13)

09139-05074

2
Out of stock

15

PROTECTOR, FUEL TANK

44280-28H00

1
Out of stock

16

PROTECTOR, RH

17795-28H00

1
Out of stock

17

PROTECTOR, LH

17796-28H00

1
Out of stock

18

PROTECTOR, RADIATOR

17797-28H00

2
Out of stock
