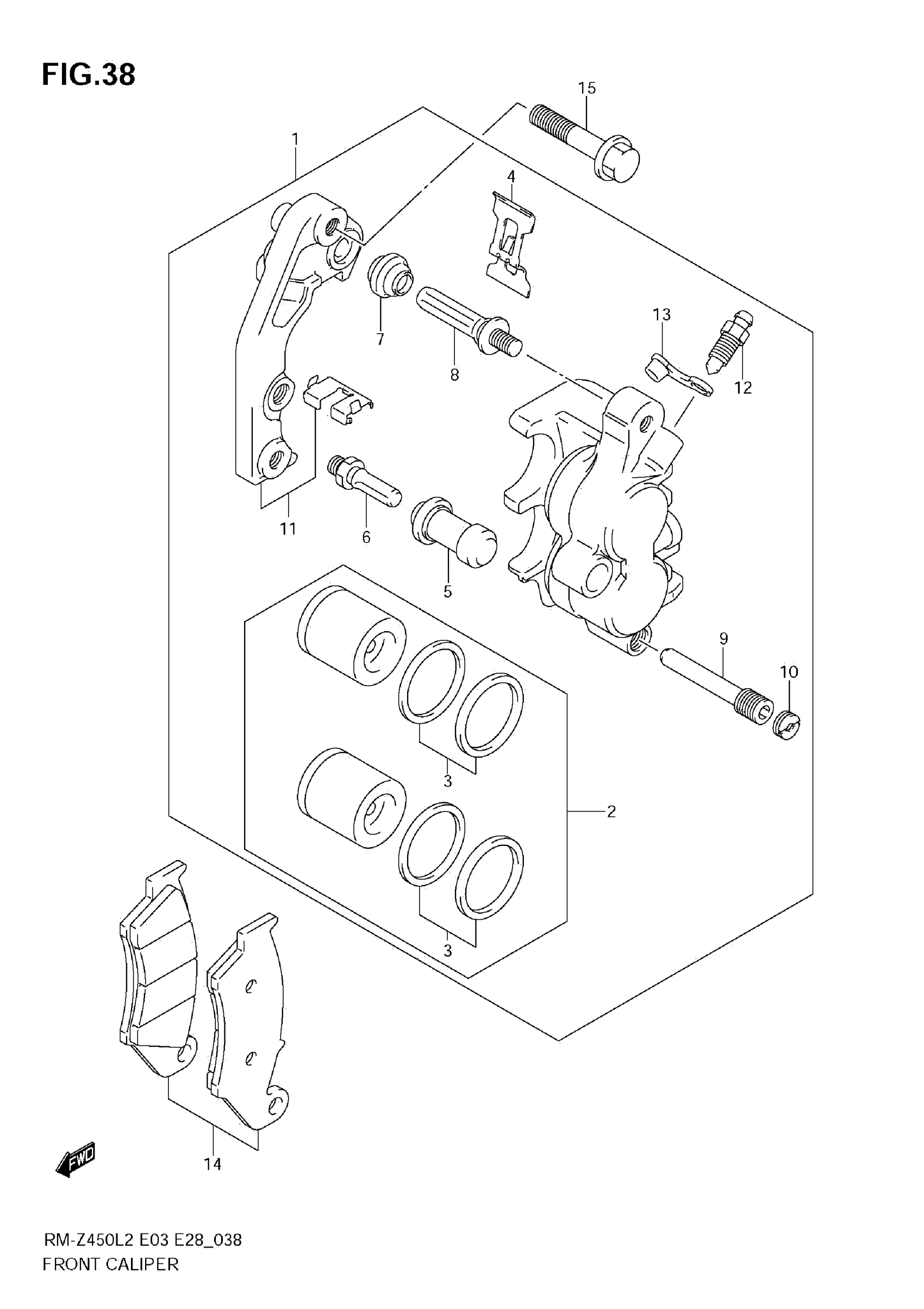

Suzuki RM-Z450L2 (2012) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT

59300-37F10-999

Unavailable

2

PISTON SET

59300-28830

Unavailable

3

SEAL SET, PISTON

59300-13820

$21.18

4

SPRING

59315-13E00

$13.89

5

BOOT

59386-13A00

$7.28

6

PIN

59382-37F00

$13.93

7

BOOT

59303-14500

$5.06

8

PIN

59305-27C00

$26.52

9

PIN

59345-13E00

$13.13

10

PLUG, PIN

59146-21E10

$5.62

11

BRACKET

59350-13E00

$152.71

12

BLEEDER

59121-01A00

$7.99

13

CAP

59122-01A00

$3.97

14

PAD SET

59301-36810

$53.37

15

BOLT (8X41)

09103-08403

$3.08
