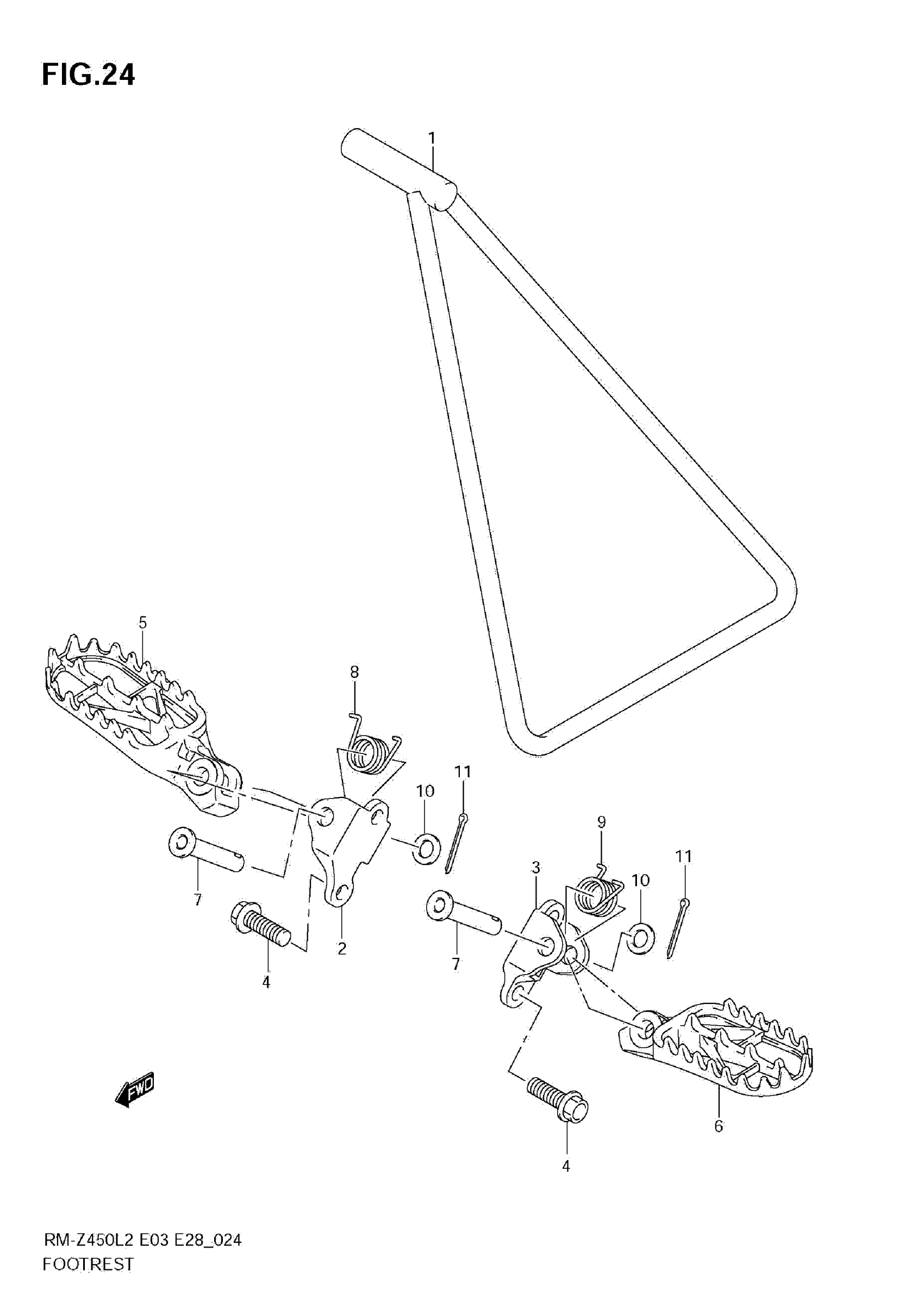

Suzuki RM-Z450L2 (2012) FOOTREST Diagram

#

Description
Price

1

STAND

42310-28H00

Unavailable

2

BRACKET, FOOTREST RH

41855-28H10

$170.68

3

BRACKET, FOOTREST LH

41865-28H10

$164.42

4

BOLT (10X25)

09103-10415

$4.92

5

FOOTREST, RH

43551-28H10

Unavailable

6

FOOTREST, LH

43561-28H10

$96.20

7

PIN

09200-10019

$6.16

8

SPRING | RH

09448-21012

$2.41

9

SPRING | LH

09448-21013

$2.29

10

WASHER (10.5X18X1)

09160-10121

$2.06

11

COTTER PIN

04111-2520A

$1.22
