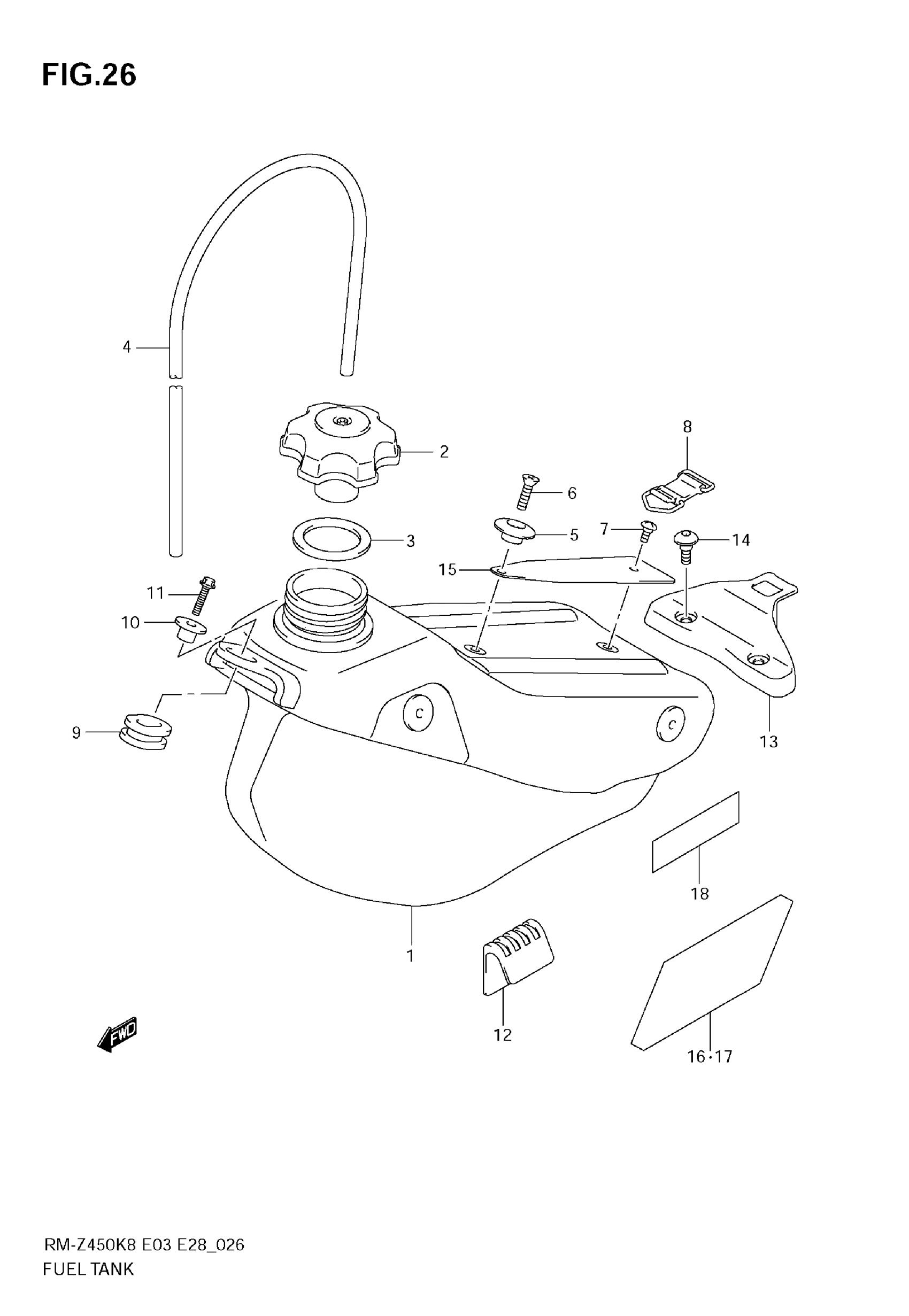

Find the part on the Fuel Tank diagram for your 2009 Suzuki RM-Z450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki RM-Z450 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL | MODEL K8

44110-28H00

1
Out of stock

1

TANK, FUEL | MODEL K9

44110-28H01

1
Out of stock

2

CAP, FUEL TANK

44210-37F00

1
Out of stock

3

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

1
Out of stock

4

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

5

HOOK, SEAT FRONT

44132-37F10

1
Out of stock

6

SCREW, HOOK

02122-0620B

1
Out of stock

7

SCREW, TANK BAND

09139-06134

1
Out of stock

8

BAND, FUEL TANK

44560-27C00

1
Out of stock

9

CUSHION,FUEL TA This part replaces 44541-28H00.

44541-28H01

1
Out of stock

10

SPACER

44134-35G02

1
Out of stock

11

BOLT, FRONT

09103-06213

1
Out of stock

12

CUSHION,FUEL TA This part replaces 44543-35G00.

44543-49H01

2
Out of stock

13

CUSHION, REAR

44542-28H00

1
Out of stock

14

SCREW

09139-05074

2
Out of stock

15

PROTECTOR, FUEL TANK

44280-28H00

1
Out of stock

16

PROTECTOR, RH

17795-28H00

1
Out of stock

17

PROTECTOR, LH

17796-28H00

1
Out of stock

18

PROTECTOR, RADIATOR

17797-28H00

2
Out of stock
