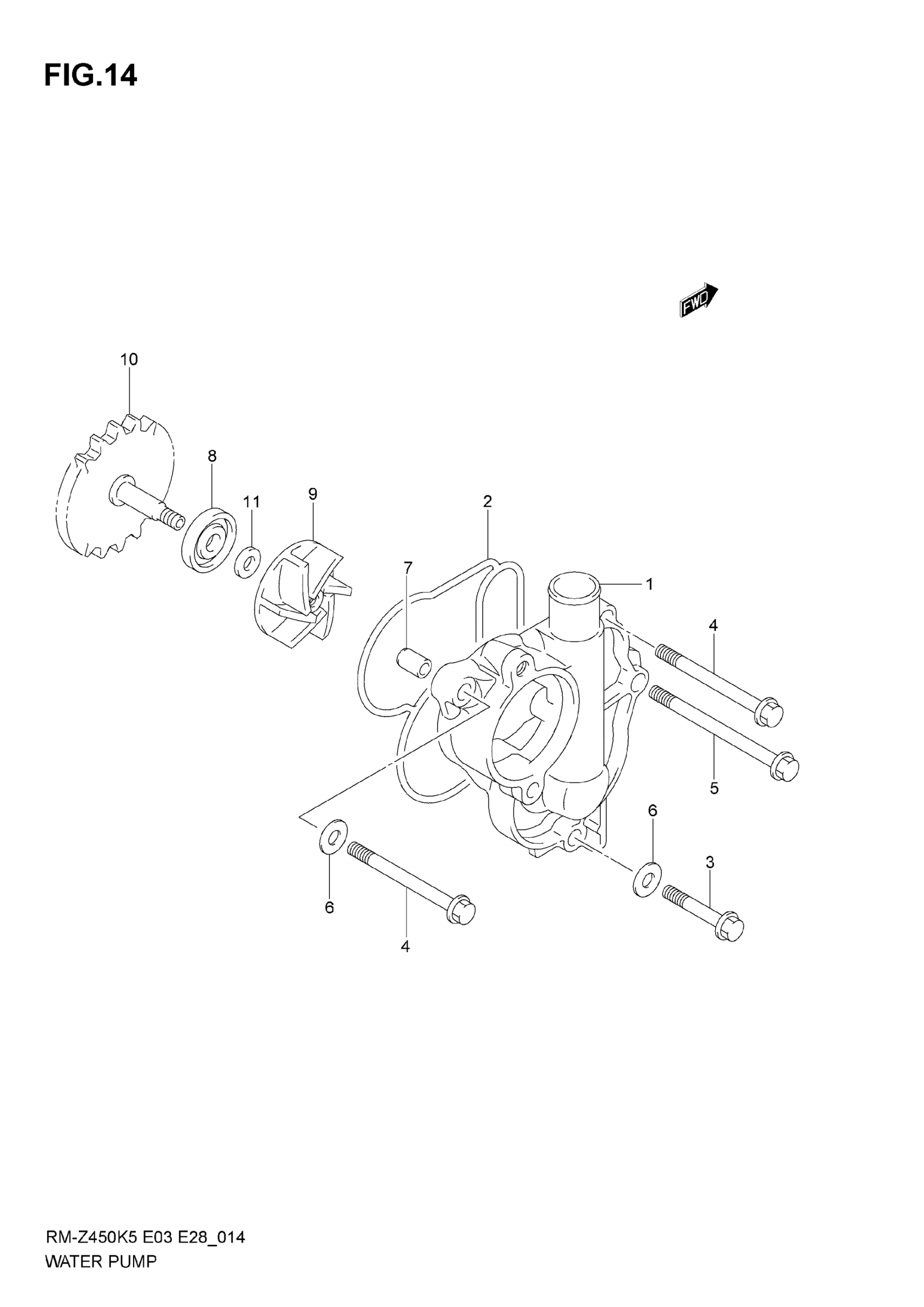

Suzuki RM-Z450 (2007) WATER PUMP Diagram

#

Description
Price

1

CASE, WATER PUMP & OIL FILTER

17411-35G00

$113.60

2

O RING, WATER PUMP CASE

17431-35G10

$31.84

3

BOLT, 6X30

09103-06251

$2.12

4

BOLT, 6X60

09103-06253

$2.80

5

BOLT, 6X70

09103-06254

$3.58

6

GASKET, 6.2X13X1.2

09168-06018

$1.70

7

PIN, 6.2X8X11

09206-08001

$1.77

8

SEAL, WATER PUMP OIL

17461-37F00

$7.04

9

IMPELLER,WATER PUMP

17491-35G00

$31.90

10

SHAFT,WATER PUMP (NT:23) This part replaces 17510-35G01.

17510-28H01

$115.33

11

WASHER, 6X14X1

09181-06003

$2.72
