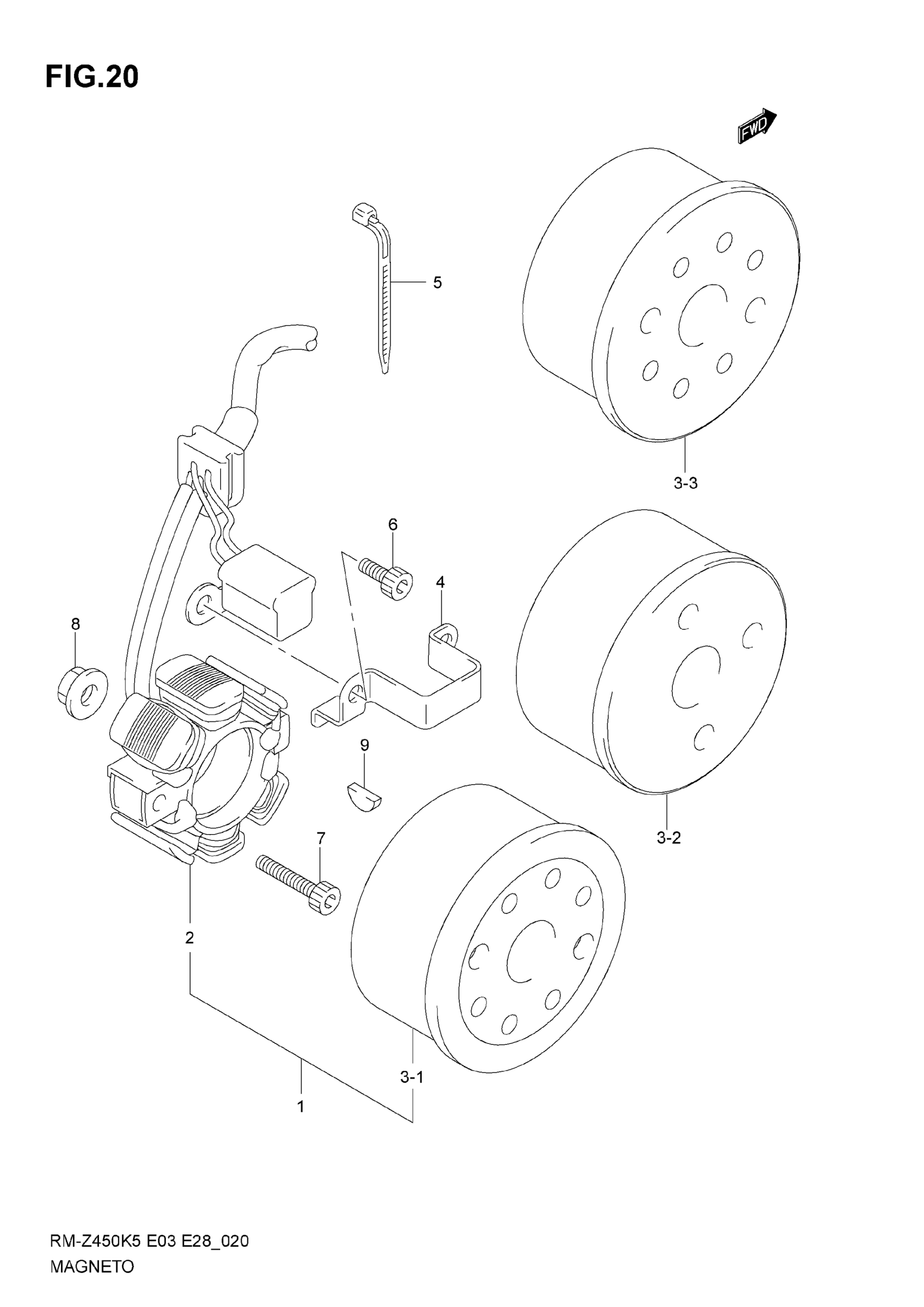

Suzuki RM-Z450 (2007) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY | MODEL K5

32100-35G00

Unavailable

1

MAGNETO ASSY | MODEL K6

32100-35G10

Unavailable

1

MAGNETO ASSY | MODEL K7; Includes Item(s) 2 - 3

32100-35G20

Unavailable

2

STATOR ASSY

32101-35G00

$648.88

3

ROTOR ASSY | MODEL K5

32102-35G00

Unavailable

3

ROTOR ASSY | MODEL K6

32102-35G10

Unavailable

3

ROTOR ASSY | MODEL K7

32102-35G20

$381.13

4

CLAMP, MAGNETO LEAD

32371-35G00

Unavailable

5

CLAMP, MAGNETO LEAD (L:125)

09407-14403

$2.24

6

BOLT This part replaces 07130-05123.

07130-0512B

$2.53

7

BOLT, MAGNETO STATOR

09106-05029

Unavailable

8

NUT This part replaces 08316-10123.

08316-1012A

$2.24

9

KEY, MAGNETO ROTOR

08341-31039

$1.89
