Description

Price

1

SHAFT, KICK STARTER

26211-35G00

$131.97

2

GUIDE,KICK STARTER SFT SPRING

26221-35G00

$5.52

3

STARTER, KICK

26231-35G00

Unavailable

4

GUIDE, KICK STARTER

26232-35G00

$8.32

5

GEAR, KICK STARTER DRIVE

26240-35G00

$154.77

6

WASHER, KICK STARTER SHAFT, L | 17X24X0.5

09181-17130

$2.80

7

WASHER, KICK STARTER DRIVE | 20X26X1.0

09181-20139

$1.82

8

SEAL, KICK STARTER SHAFT OIL | 20X27X5

09283-20031

$4.73

9

SPRING, KICK STARTER

09440-32002

$2.10

10

SPRING, KICK STARTER SHAFT

09448-38007

$6.31

11

BOLT This part replaces 01500-06123.

01500-0612A

$1.80

12

CIRCLIP, KICK START DRIVE GEAR

08331-3120A

$2.01

13

LEVER ASSY,KICK | Includes Item(s) 14 - 18 This part replaces 26300-35G00.

26300-35G01

$260.47

14

.O-RING This part replaces 26313-28E20.

26313-28E21

$2.45

15

JOINT, KICK STARTER LEVER

26331-35G00

Unavailable

16

SCREW, KICK STARTER LEVER | 6X27.5

09127-06016

$2.80

17

SPRING, KICK STARTER LEVER

09440-05031

$1.45

18

BALL

06111-07004

$1.22

19

BOLT, KICK STARTER LEVER | 8X14

09103-08253

$2.84

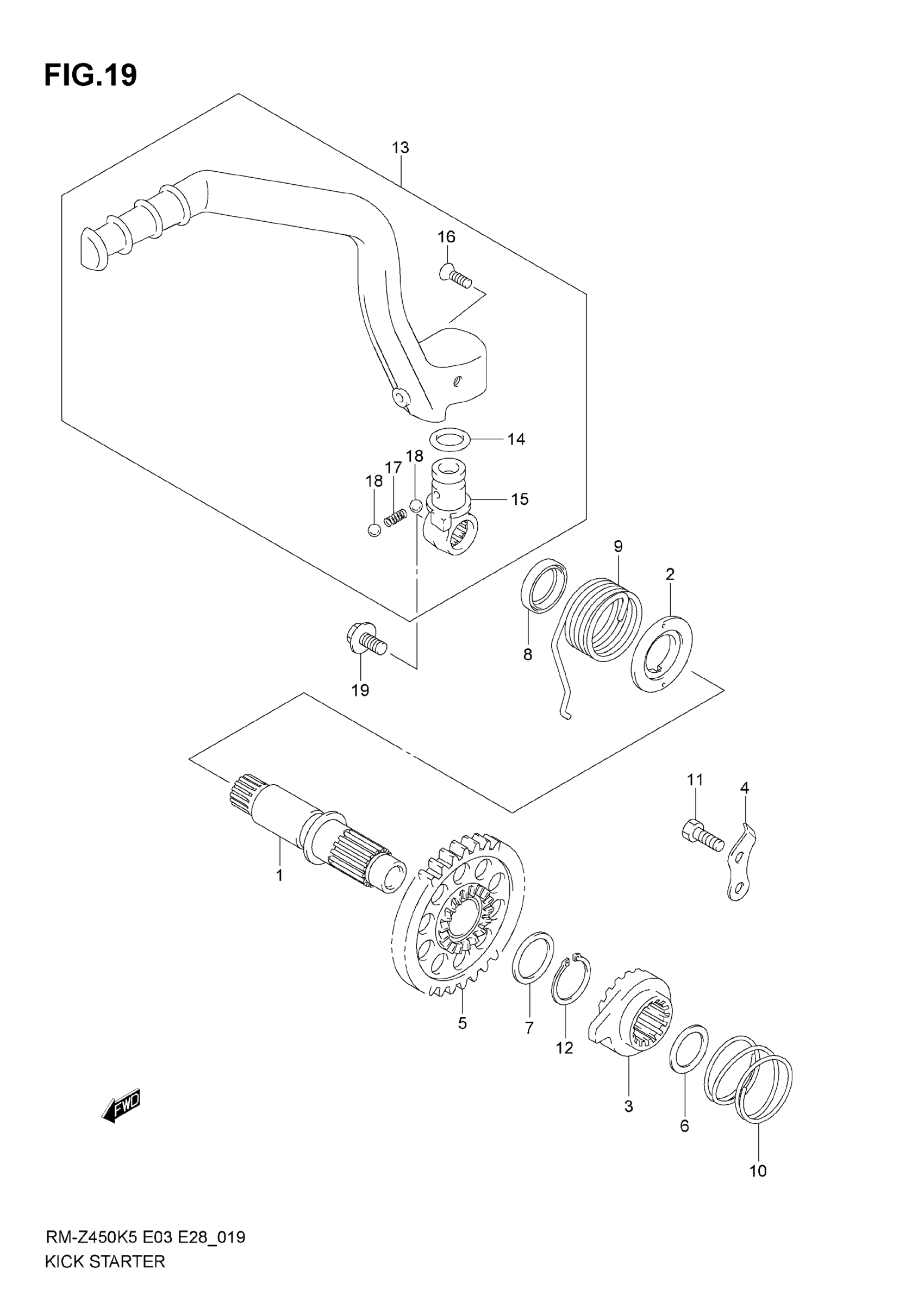

Suzuki RM-Z450 (2007) KICK STARTER Diagram
