2007 Suzuki RM-Z450 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2007 Suzuki RM-Z450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

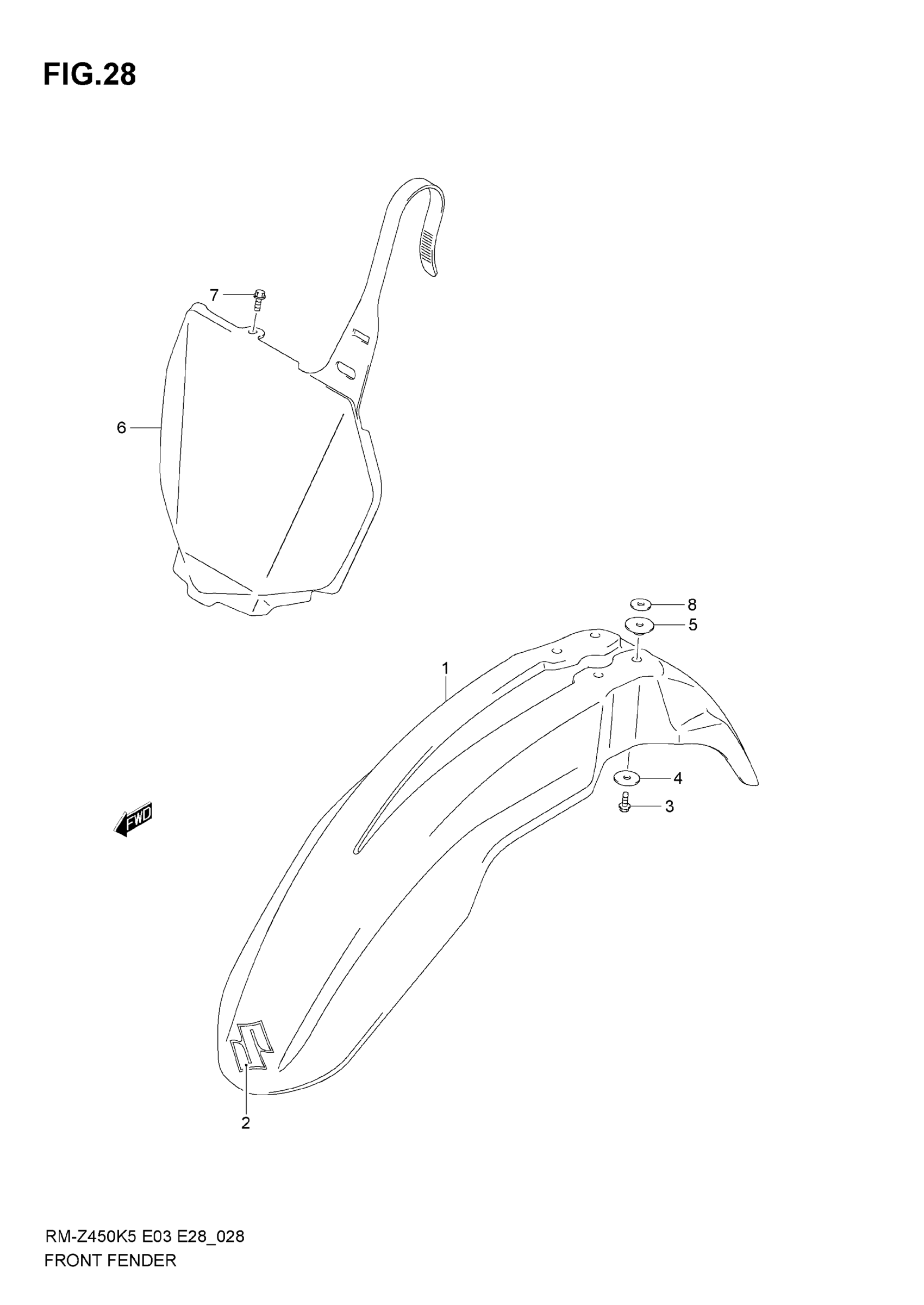

2007 Suzuki RM-Z450 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT (YELLOW)

53111-37F01-YU1

1
Out of stock

2

EMBLEM, "S" | MODEL K5

68151-37F00-AZT

1
Out of stock

2

EMBLEM,"S" | MODEL K6,RM-Z450K7 This part replaces 68151-37F10-CFM.

68151-37F11-CFM

1
Out of stock

3

BOLT This part replaces 01547-06163.

01547-0616B

4
Out of stock

4

WASHER, LOWER

09160-06136

4
Out of stock

5

WASHER, UPPER

09169-06078

4
Out of stock

6

WASHER, FRONT NUMBER (WHITE) | MODEL K5/K6 This part replaces 94911-37F01-30H.

94911-37F02-30H

1
Out of stock

6

WASHER, FRONT NUMBER (WHITE) | MODEL K7

94911-37F02-30H

1
Out of stock

7

BOLT

09103-06233

1
Out of stock

8

WASHER (6.5X20X1.2) | MODEL K5 This part replaces 09160-06027.

09160-06077

2
Out of stock

8

WASHER, REAR UPPER | MODEL K6

09160-06077

2
Out of stock
