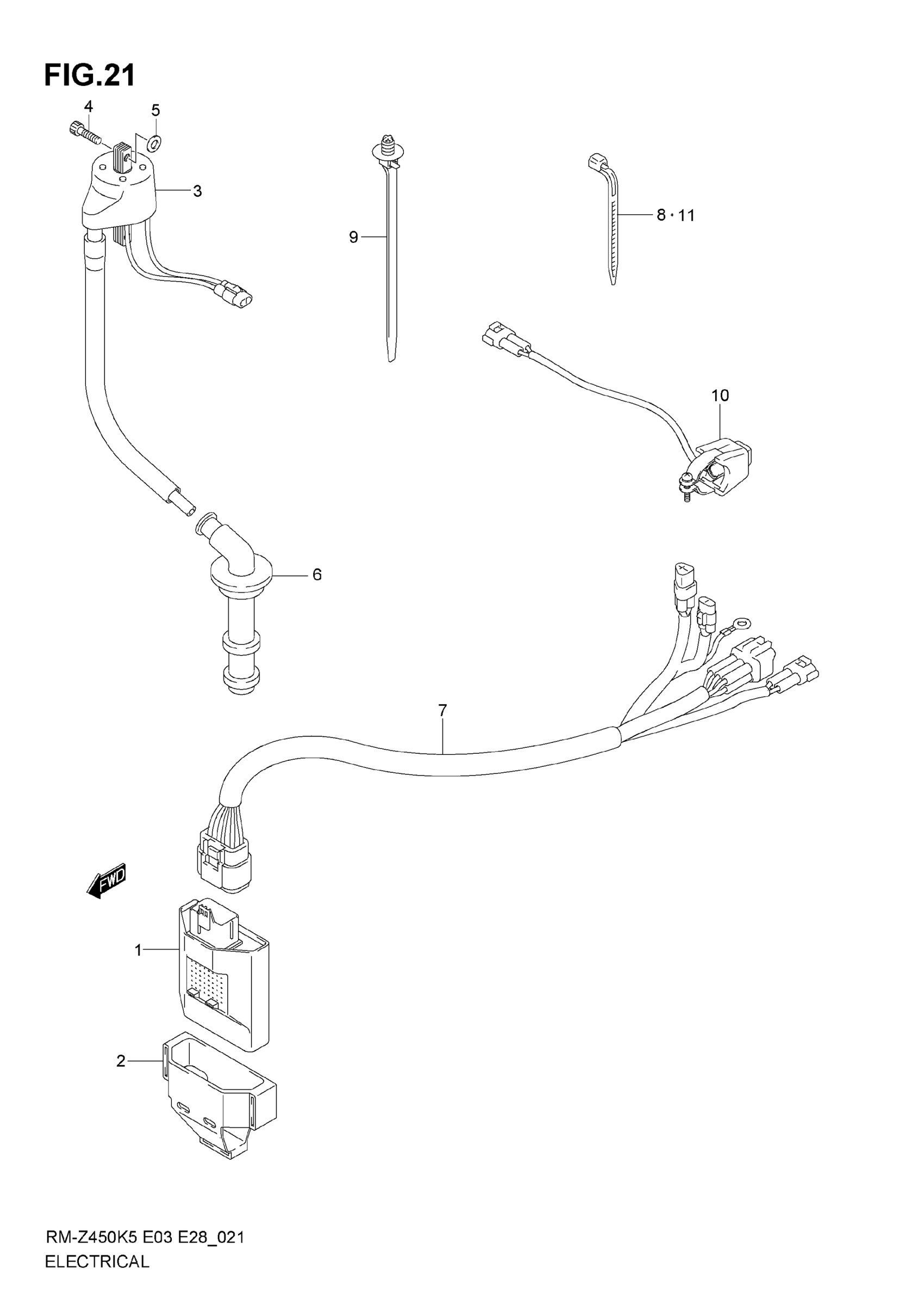

Suzuki RM-Z450 (2007) ELECTRICAL Diagram

#

Description
Price

1

CDI UNIT | MODEL K5

32900-35G00

Unavailable

1

CDI UNIT | MODEL K6

32900-35G10

Unavailable

1

CDI UNIT | MODEL K7

32900-35G20

Unavailable

2

CUSHION, CDI UNIT

32980-37F00

$12.62

3

COIL ASSY, IGNITION

33410-35G10

$142.17

4

BOLT, FRONT BRG HOUSING This part replaces 07130-06203.

07130-0620B

$2.80

5

WASHER (6.5X18X1.0)

09160-06028

$1.43

6

CAP ASSY, SPARK PLUG

33510-35G00

$45.01

7

HARNESS, WIRING | MODEL K5/K6

36610-35G00

Unavailable

7

HARNESS, WIRING | MODEL K7

36610-35G10

Unavailable

8

CLAMP, WIRING (L:95)

09407-11401

$2.87

8

CLAMP, WIRING (L:125)

09407-14403

$2.24

9

CLAMP, WIRING HARNESS

09407-17403

$4.63

10

SWITCH ASSY,ENGINE STOP

37820-36E00

$22.19

11

CLAMP, ENGINE STOP (L:95)

09407-11401

$2.87

11

CLAMP, ENGINE STOP (L:125)

09407-14403

$2.24
